Front Cover, Oil Pan, and Components

Front Cover, Oil Pan, and Components

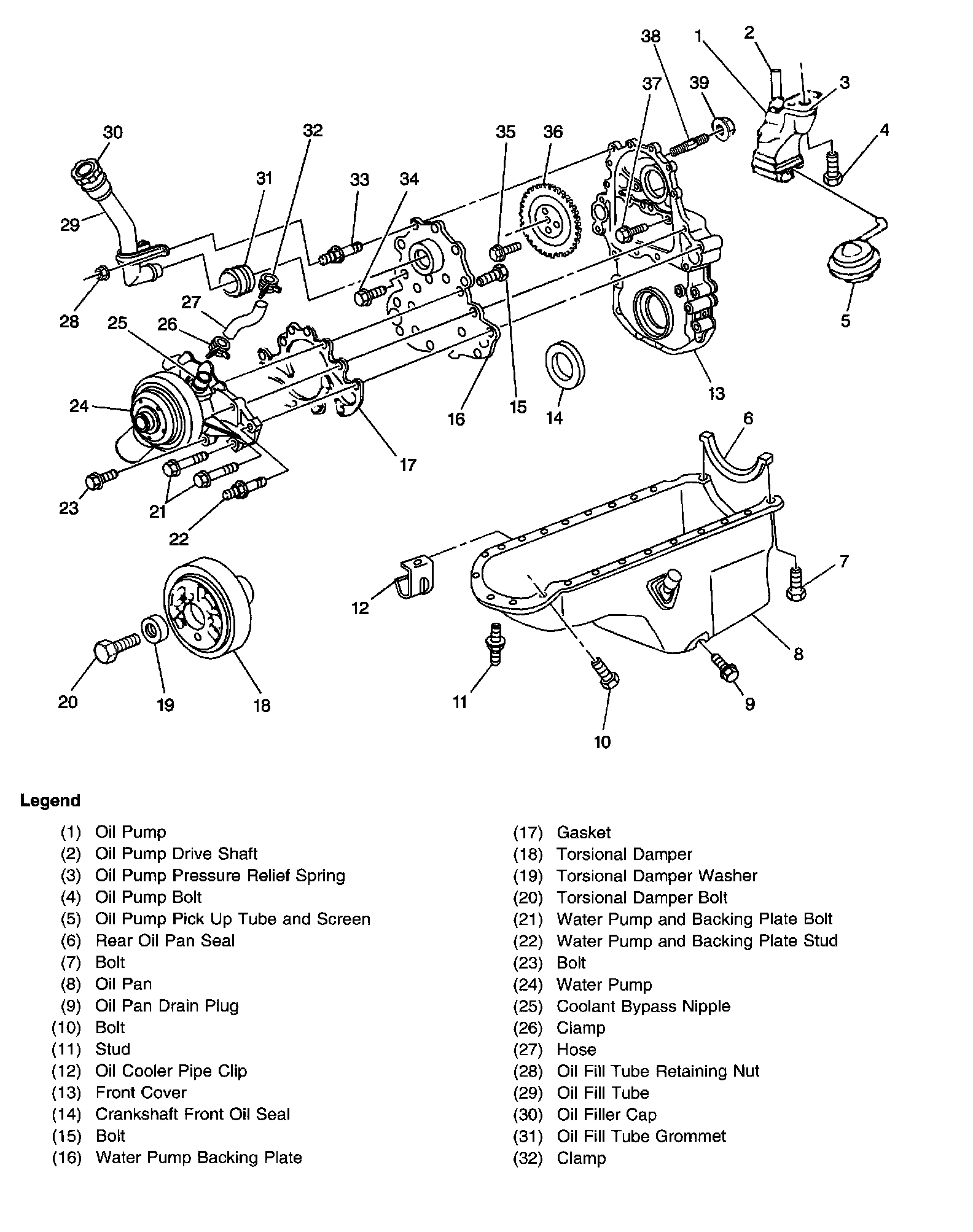

Part 1 of 2





Part 2 of 2
