Starting and Charging Systems
Starting and Charging Systems

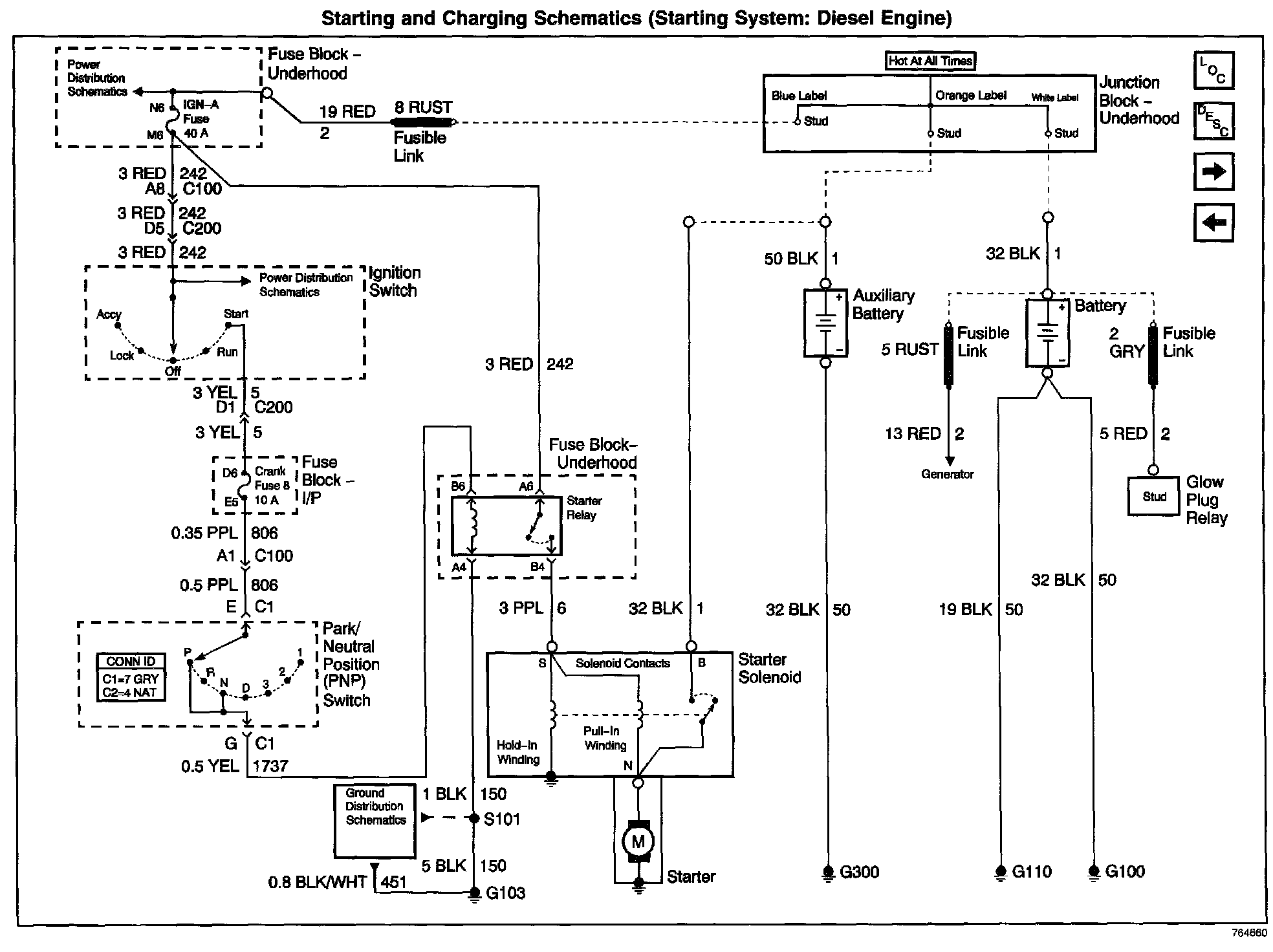

Starting And Charging Schematics: Starting System: Diesel Engine:

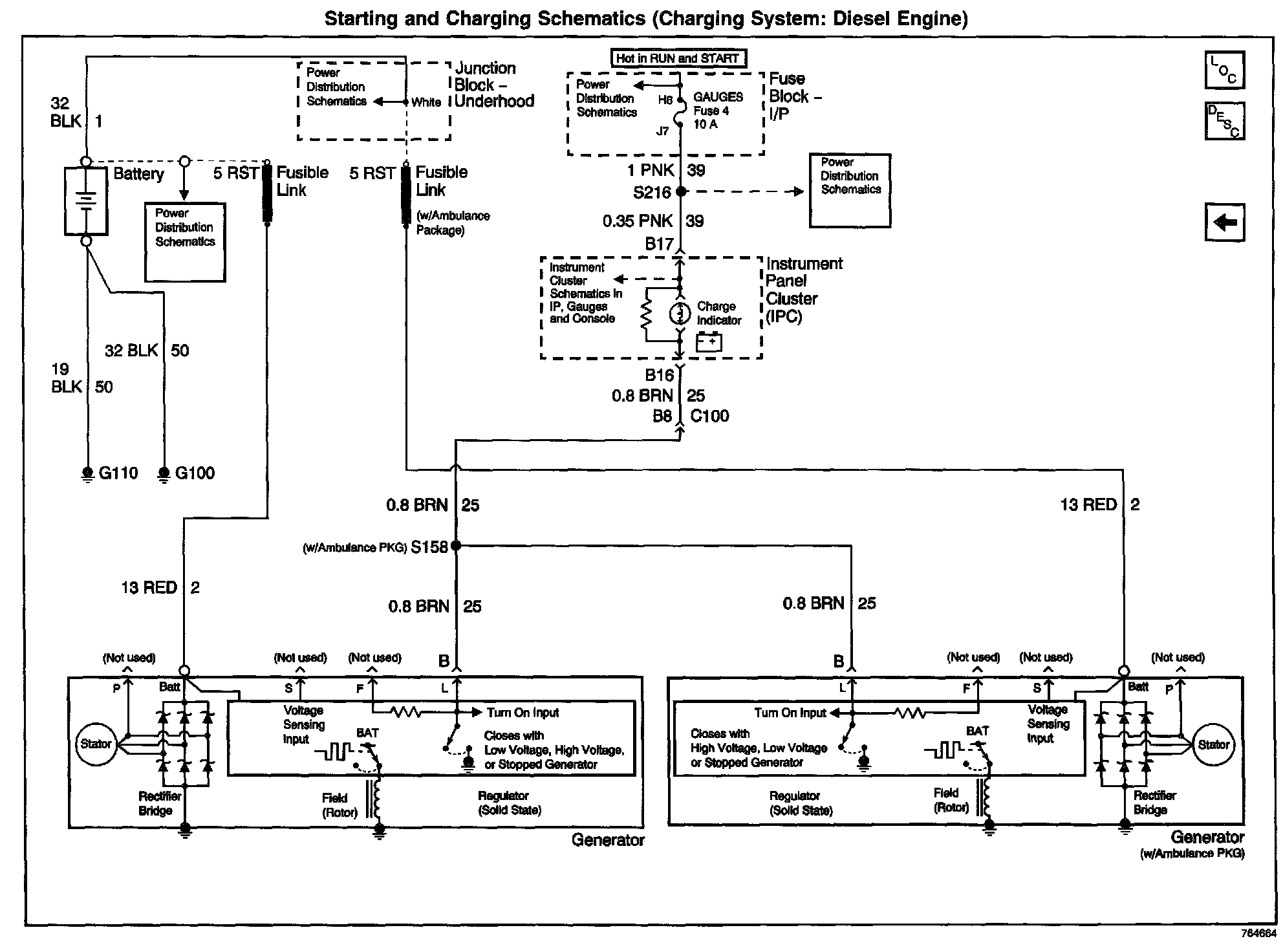

Starting And Charging Schematics: Charging System: Diesel Engine:
