Seat Cushion Cover and Pad Replacement - Rear (Luxury Y91)

Seat Cushion Cover and Pad Replacement - Rear (Luxury Y91)

Removal Procedure

1. Remove the bench seat and risers from the vehicle. Refer to Seat Replacement - Rear Bench (All Except Luxury) (Seat Replacement - Rear Bench (All Except Luxury))Seat Replacement - Rear Bench (Luxury Y91) (Seat Replacement - Rear Bench (Luxury Y91)) .
2. Remove the rear storage tray from the seat. Refer to Storage Tray Replacement - Rear (Luxury Y91) (Storage Tray Replacement - Rear (Luxury Y91)) .

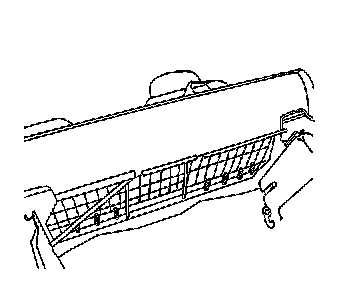

3. Remove the J-hooks that retain the seat cushion cover to the seat cushion frame.

Important: Note the locations of the hog rings for reassembly.

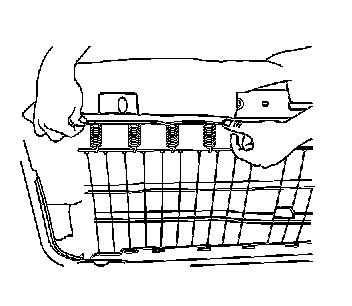

4. Remove the hog rings that retain the seat cushion cover to the seat cushion frame located at the rear edge of the seat frame.
5. Remove the seat cushion cover from the seat cushion pad.
6. Remove the seat cushion pad.



Installation Procedure

1. Install the seat cushion pad.
2. Install the seat cushion cover to the seat cushion pad.




3. Install the hog rings that retain the seat cushion cover to the seat cushion frame located at the rear edge of the seat frame.




4. Install the J-hooks that retain the seat cushion cover to the seat cushion frame.
5. Install the rear storage tray to the seat. Refer to Storage Tray Replacement - Rear (Luxury Y91) (Storage Tray Replacement - Rear (Luxury Y91)) .
6. Install the bench seat and risers in the vehicle. Refer to Seat Replacement - Rear Bench (All Except Luxury) (Seat Replacement - Rear Bench (All Except Luxury))Seat Replacement - Rear Bench (Luxury Y91) (Seat Replacement - Rear Bench (Luxury Y91)) .
