P0380 (Federal)

CIRCUIT DESCRIPTION
The glow plug system is used in order to assist in providing the heat required to begin combustion during cold engine temperatures. The glow plugs are heated before and during cranking, as well as initial engine operation. The powertrain control module (PCM) controls the glow plug ON times by monitoring the coolant temperatures and the glow plug voltage.

CONDITIONS FOR RUNNING THE DTC
The ignition is in the ON position.

CONDITIONS FOR SETTING THE DTC
The PCM has commanded the glow plugs ON and the voltage at the glow plugs is less than 4 volts.
or
The PCM has commanded the glow plugs OFF and the voltage at the glow plugs is more than 4 volts.
or
The PCM has commanded the glow plugs ON and there is more than a 2 volt difference between the glow plug voltage and the ignition voltage.

ACTION TAKEN WHEN THE DTC SETS
^ The control module illuminates the malfunction indicator lamp (MIL) on the second consecutive ignition cycle that the diagnostic runs and fails.
^ The control module records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the control module stores this information in the Failure Records. If the diagnostic reports a failure on the second consecutive ignition cycle, the control module records the operating conditions at the time of the failure. The control module writes the operating conditions to the Freeze Frame and updates the Failure Records.

CONDITIONS FOR CLEARING THE MIL/DTC
^ The control module turns OFF the malfunction indicator lamp (MIL) after 3 consecutive ignition cycles that the diagnostic runs and does not fail.
^ A current DTC, Last Test Failed, clears when the diagnostic runs and passes.
^ A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other emission related diagnostic.
^ Clear the MIL and the DTC with a scan tool.

DIAGNOSTIC AIDS
If the glow plug relay is stuck in the ON position, check for proper operation of the glow plugs, refer to Glow Plug System Diagnosis. When the glow plugs are commanded ON by the scan tool, an internal PCM timer protects the glow plugs from damage by cycling them ON for 3 seconds and OFF for 12 seconds. Component Tests and General Diagnostics

The glow plug output feed wire nut and battery feed wire nut at the relay should be checked for proper torque of 5 N.m (44 lb in) and for corrosion.

An intermittent may be caused by the following conditions:
^ Poor connections
^ Rubbed through wire insulation
^ Broken wire inside the insulation

TEST DESCRIPTION

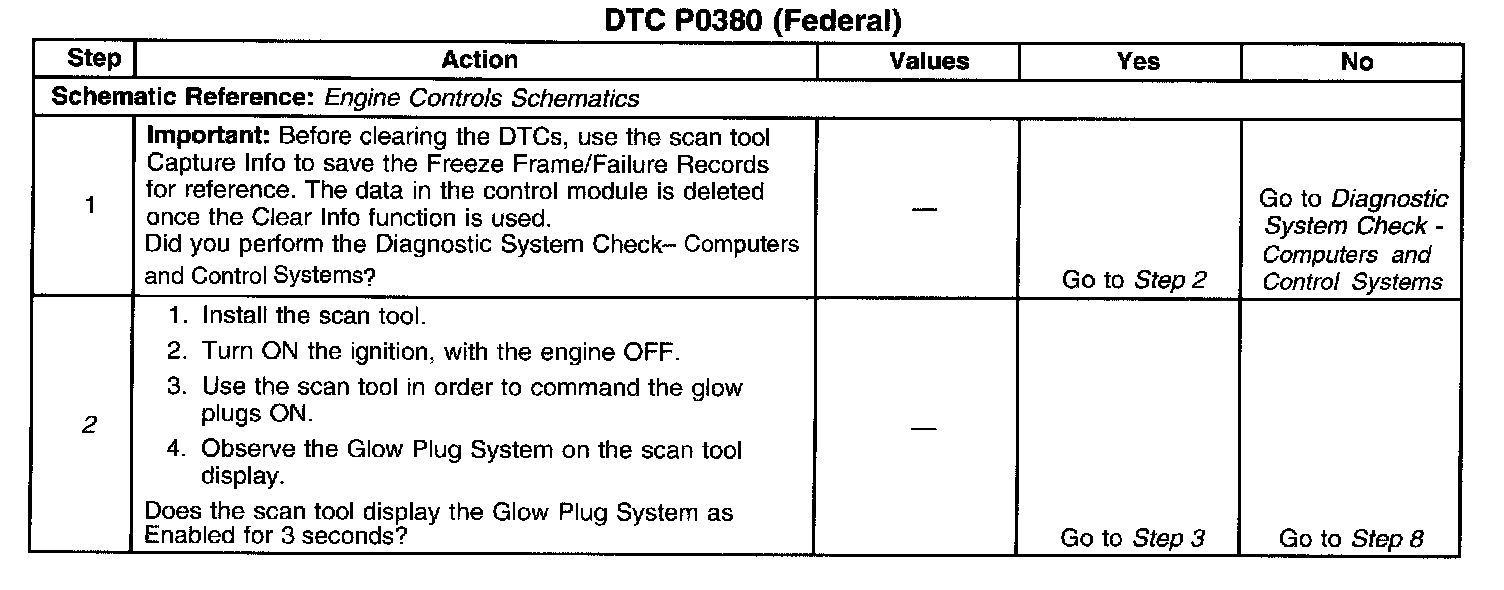

Steps 1-2:

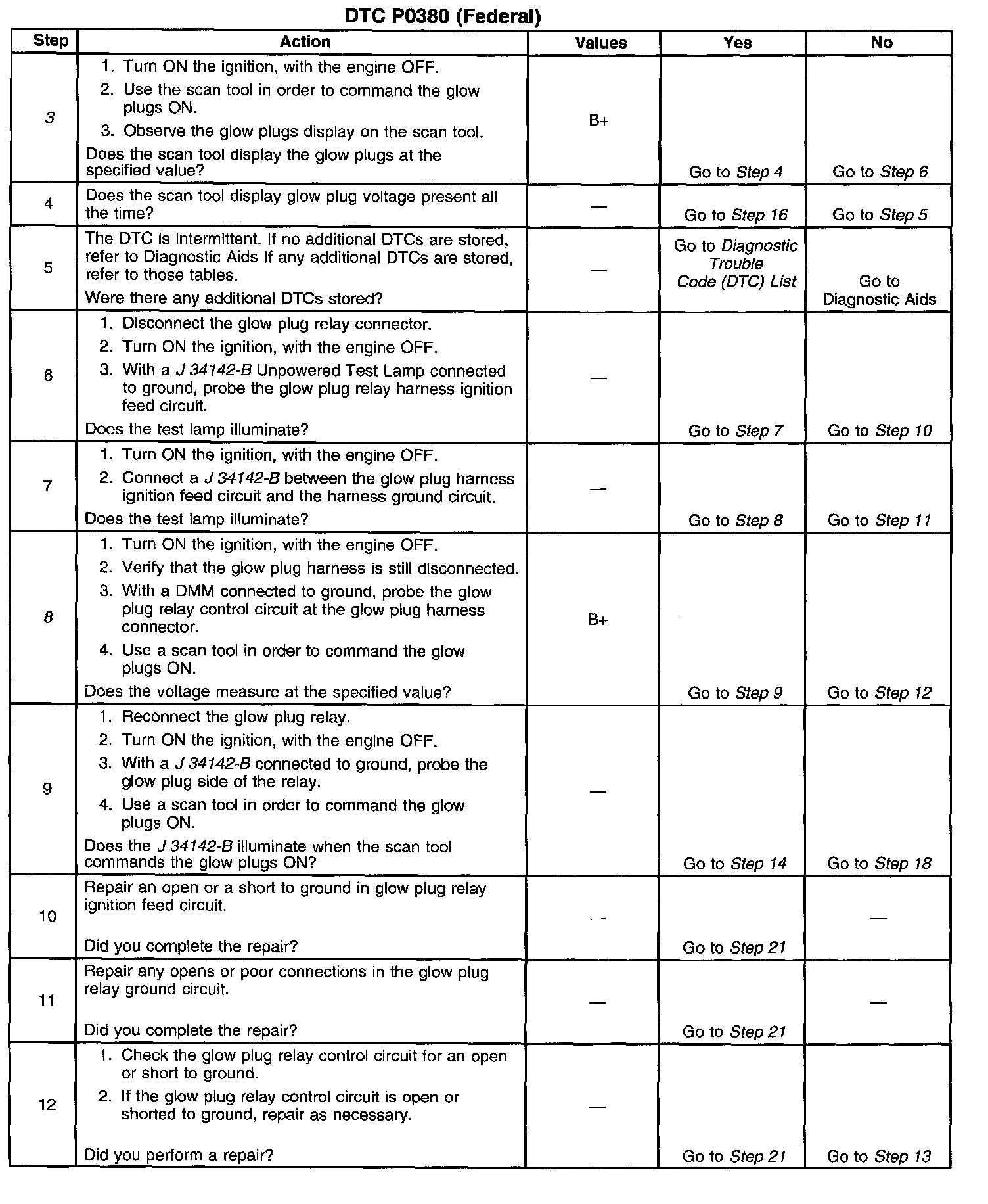

Steps 3-12:

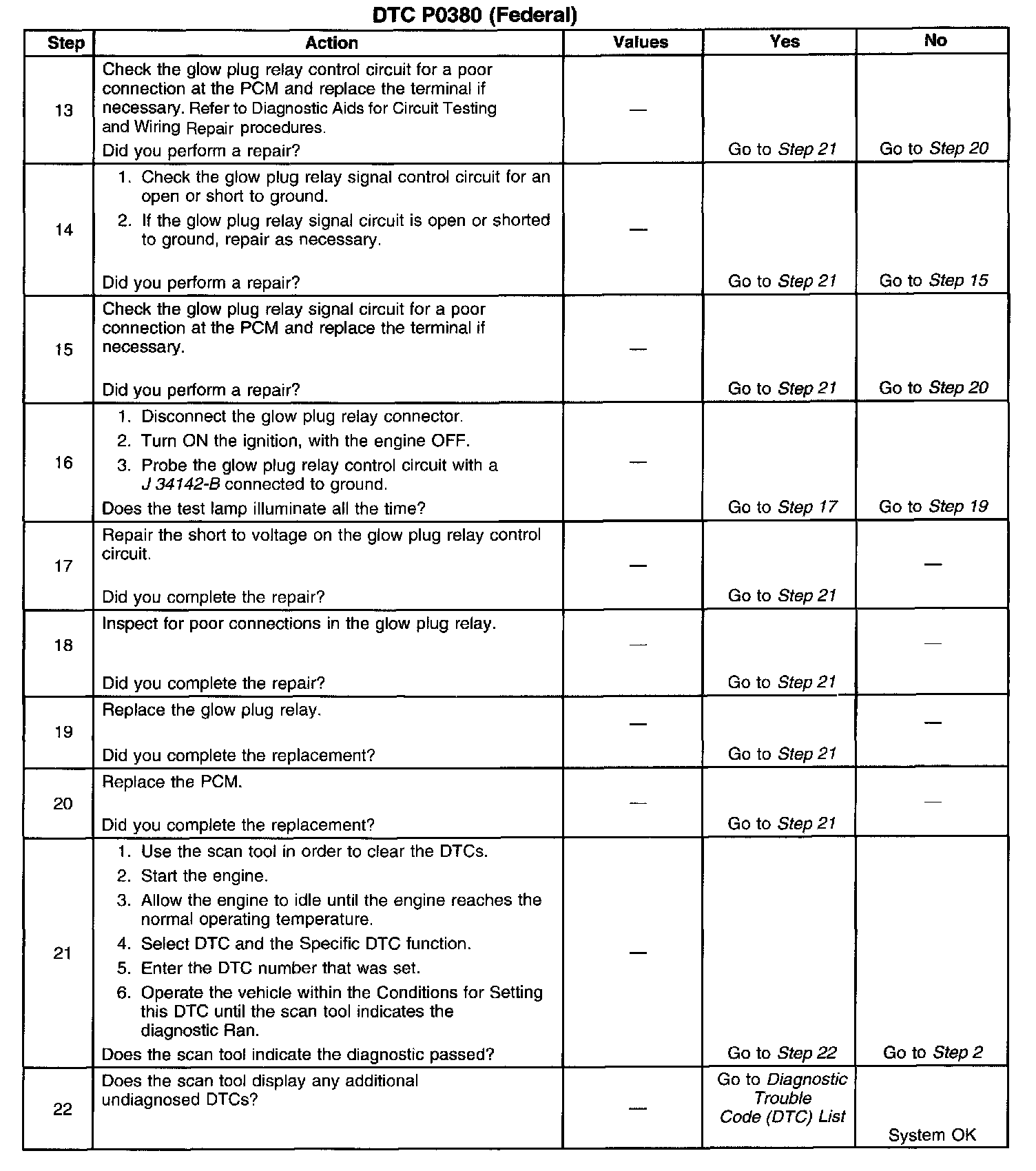

Steps 13-22:

The numbers below refer to the step numbers on the diagnostic table.
2. This step determines if DTC P0380 is a hard failure.
3. This step determines if the PCM is requesting the glow plug system is ON.
8. This step determines if the glow plug relay has been activated and the output voltage has been seen by the PCM.
