P0227

CIRCUIT DESCRIPTION
The accelerator pedal position (APP) module provides a voltage signal that changes relative to the accelerator pedal position. There are 3 sensors located within the APP module that are scaled differently.

CONDITIONS FOR RUNNING THE DTC
The ignition is ON.

CONDITIONS FOR SETTING THE DTC
^ The voltage is less than 0.25 volts on the APP 3 sensor.
^ The conditions were met for 2 seconds.

ACTION TAKEN WHEN THE DTC SETS
^ The control module stores the DTC information into memory when the diagnostic runs and fails.
^ The malfunction indicator lamp (MIL) will not illuminate.
^ The control module records the operating conditions at the time the diagnostic fails. The control module stores this information in the Failure Records.
^ The driver information center, if equipped, may display a message.

CONDITIONS FOR CLEARING THE DTC
^ A current DTC Last Test Failed clears when the diagnostic runs and passes.
^ A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other non-emission related diagnostic.
^ Clear the DTC with a scan tool.

DIAGNOSTIC AIDS
There are no driveability issues associated with the APP module unless a DTC is present. The most likely cause of this DTC are poor connections or the sensor itself. The least likely is a PCM condition. A scan tool reads the APP 3 position in volts. The scan tool should read approximately 4 volts with the throttle closed and the ignition ON or during idle. The voltage should steadily decrease as the throttle is moved toward a wide open throttle (WOT). Also, 90 percent pedal travel is acceptable for correct APP operation. Scan the APP 3 sensor while depressing the accelerator pedal with the engine stopped and the ignition ON. The display should vary from approximately 4 volts when the throttle is closed to approximately 2 volts when the throttle is held at a WOT position.

TEST DESCRIPTION

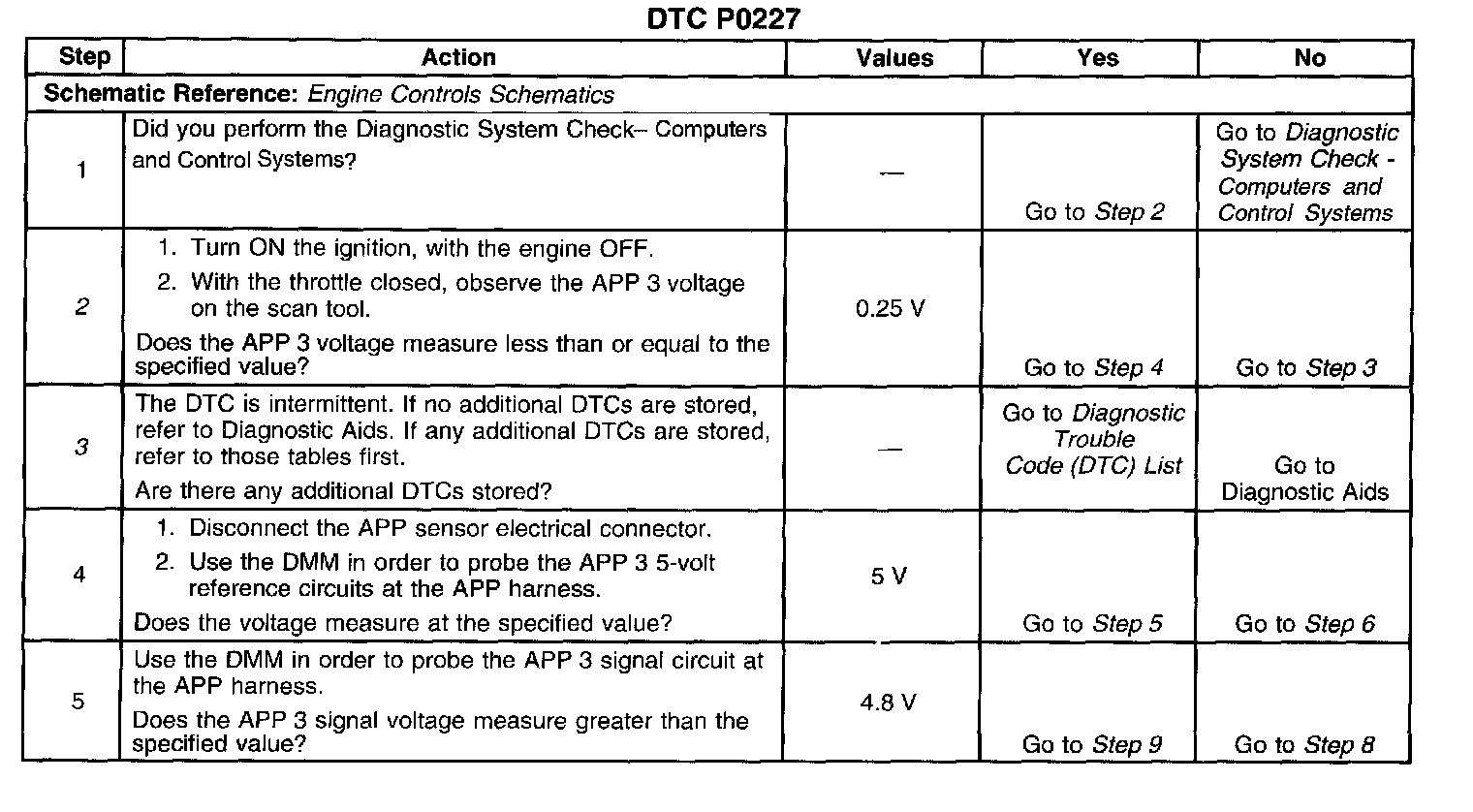

Steps 1-5:

Steps 6-13:

The numbers below refer to the step numbers on the diagnostic table.
2. This step will determine if DTC P0227 is the result of a hard failure or an intermittent condition.
3. This step checks the PCM and the wiring.
