P0221

CIRCUIT DESCRIPTION
The accelerator pedal position (APP) module provides a voltage signal that changes relative to the accelerator position. There are 3 differently scaled sensors located within the APP module.

CONDITIONS FOR RUNNING THE DTC
^ The ignition voltage is more than 6.4 volts.
^ The engine speed is more than 300 RPM.
^ There are no in range faults for APP 1 or APP 3.

The powertrain control module (PCM) checks for high and low voltage faults.

CONDITIONS FOR SETTING THE DTC
^ The difference between APP 2 and APP 3 is more than 0.50 volts. The PCM compares pre-scaled voltage that is internal to the PCM.
^ The difference between APP 2 and APP 1 is more than 0.23 volts. The PCM compares the pre-scaled voltage that is internal to the PCM.
^ The conditions were met for 2 seconds.

ACTION TAKEN WHEN THE DTC SETS
^ The control module stores the DTC information into memory when the diagnostic runs and fails.
^ The malfunction indicator lamp (MIL) will not illuminate.
^ The control module records the operating conditions at the time the diagnostic fails. The control module stores this information in the Failure Records.
^ The driver information center, if equipped, may display a message.

CONDITIONS FOR CLEARING THE DTC
^ A current DTC Last Test Failed clears when the diagnostic runs and passes.
^ A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other non-emission related diagnostic.
^ Clear the DTC with a scan tool.

DIAGNOSTIC AIDS
There are no driveability issues associated with the APP module unless a DTC is present. The most likely causes of this DTC are faulty connections or the sensor itself. The least likely cause is a powertrain control module (PCM) condition.

An intermittent may be caused by the following conditions:
^ Faulty connections
^ Rubbed-through wire insulation
^ Broken wire inside the insulation

A scan tool reads the APP 2 position in volts and should read approximately 4.5 volts with the throttle closed and the ignition ON or at idle. The voltage should steadily decrease as the throttle is moved toward wide open throttle (WOT). Also, 90 percent pedal travel is acceptable for correct APP operation. Scan the APP 2 sensor while depressing the accelerator pedal with the engine stopped and the ignition ON. The display should vary from approximately 4.5 volts when the throttle is closed to approximately 1.5 volts when the throttle is held at the WOT position.

TEST DESCRIPTION

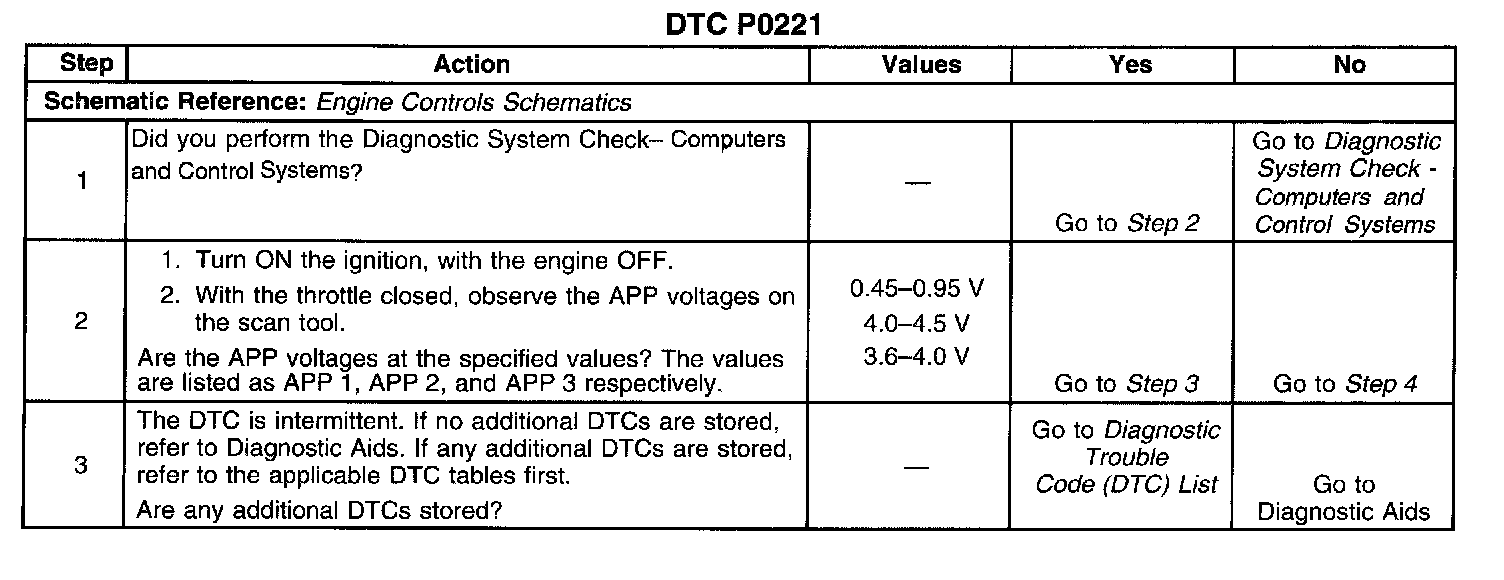

Steps 1-3:

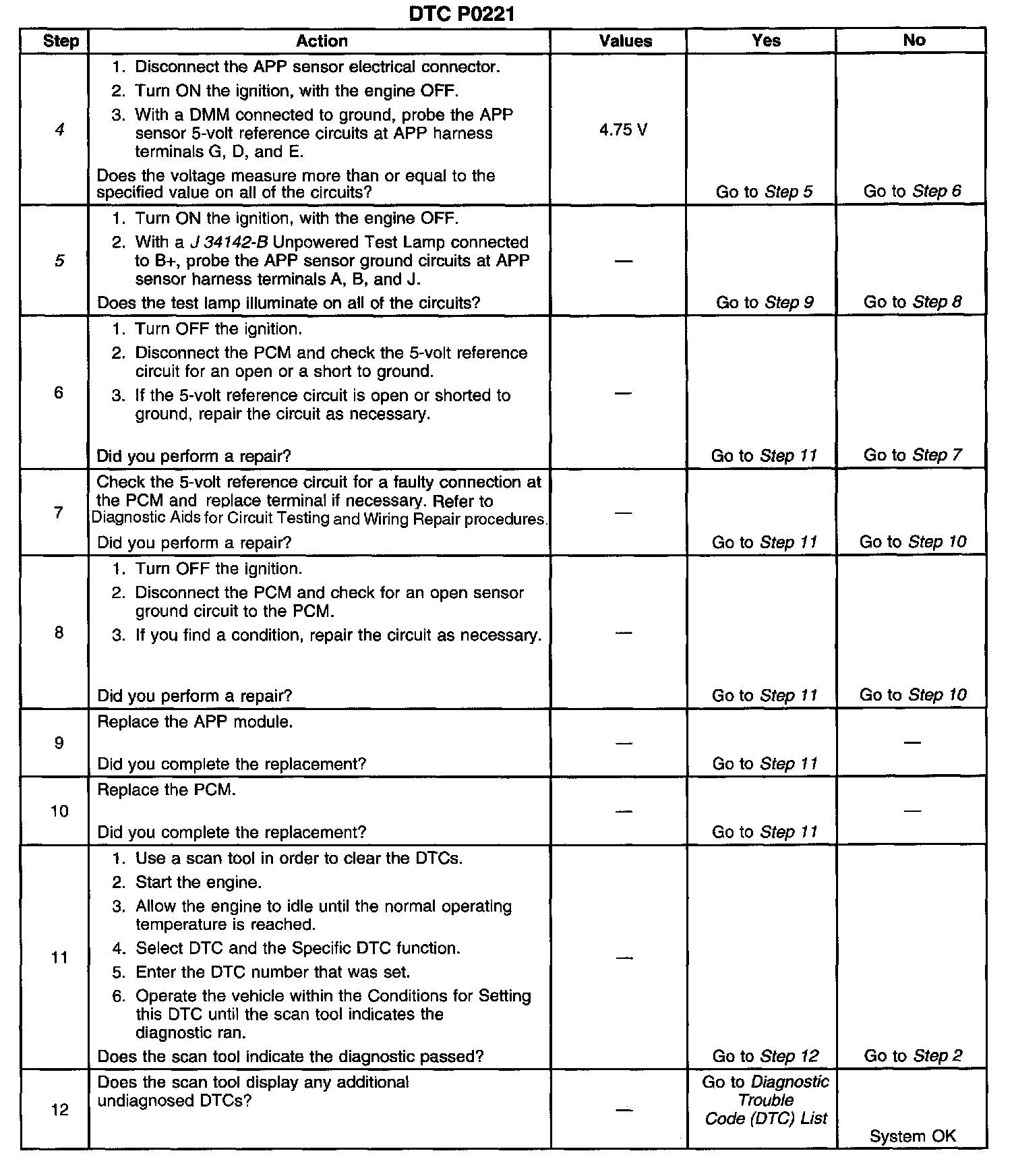

Steps 4-12:

The numbers below refer to the step numbers on the diagnostic table.
4. This step determines if there is a good 5-volt reference.
5. This step will check for an open in the ground circuit.
