Turn Signal & Multifunction Switch - Disassemble

Turn Signal and Multifunction Switch Assembly - Disassemble - Off Vehicle

Caution: Refer to SIR Caution in Service Precautions.

1. Disable the inflatable restraint steering wheel module.
2. Remove the upper and lower trim covers.

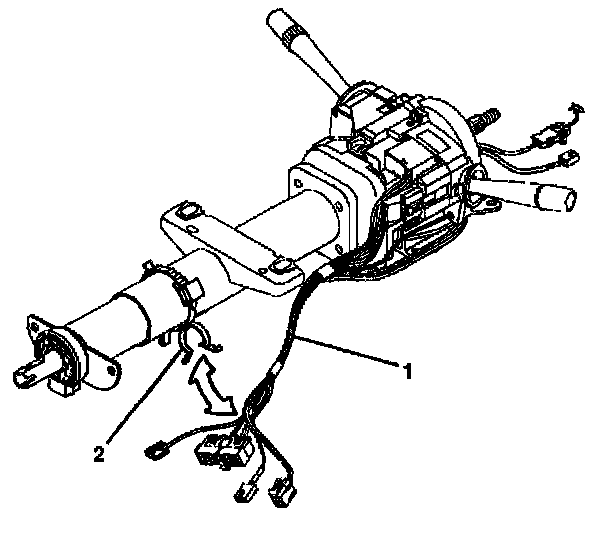

3. Remove the wire harness assembly (1) from the wire harness strap (2).
4. Remove and dispose of the smaller wire harness straps.

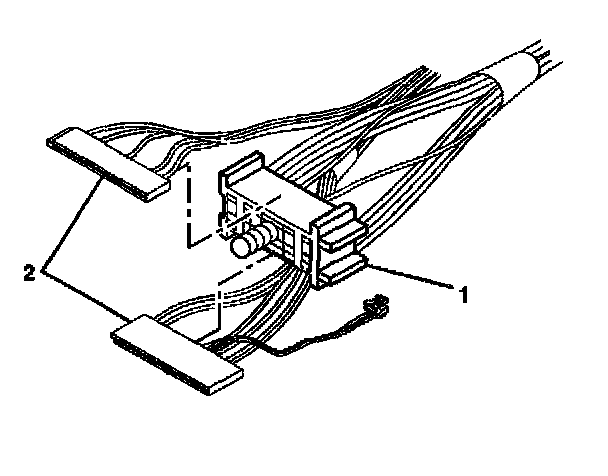

5. Slide the 2 connectors (2) of the turn signal and multifunction switch assembly out of the bulkhead connector (1).

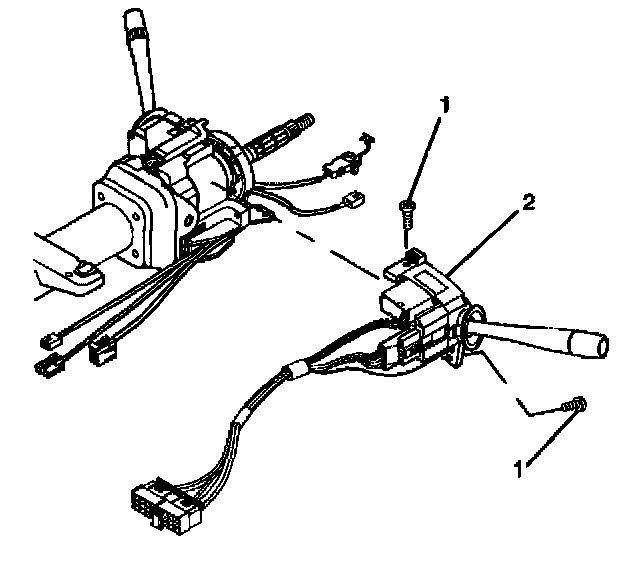

6. Remove the 2 pan head tapping screws (1) from the turn signal and multifunction switch assembly (2).
7. Remove the turn signal and multifunction switch assembly (2) from the steering column tilt head assembly.
