Components Through S152 to G103 - Gasoline Engines

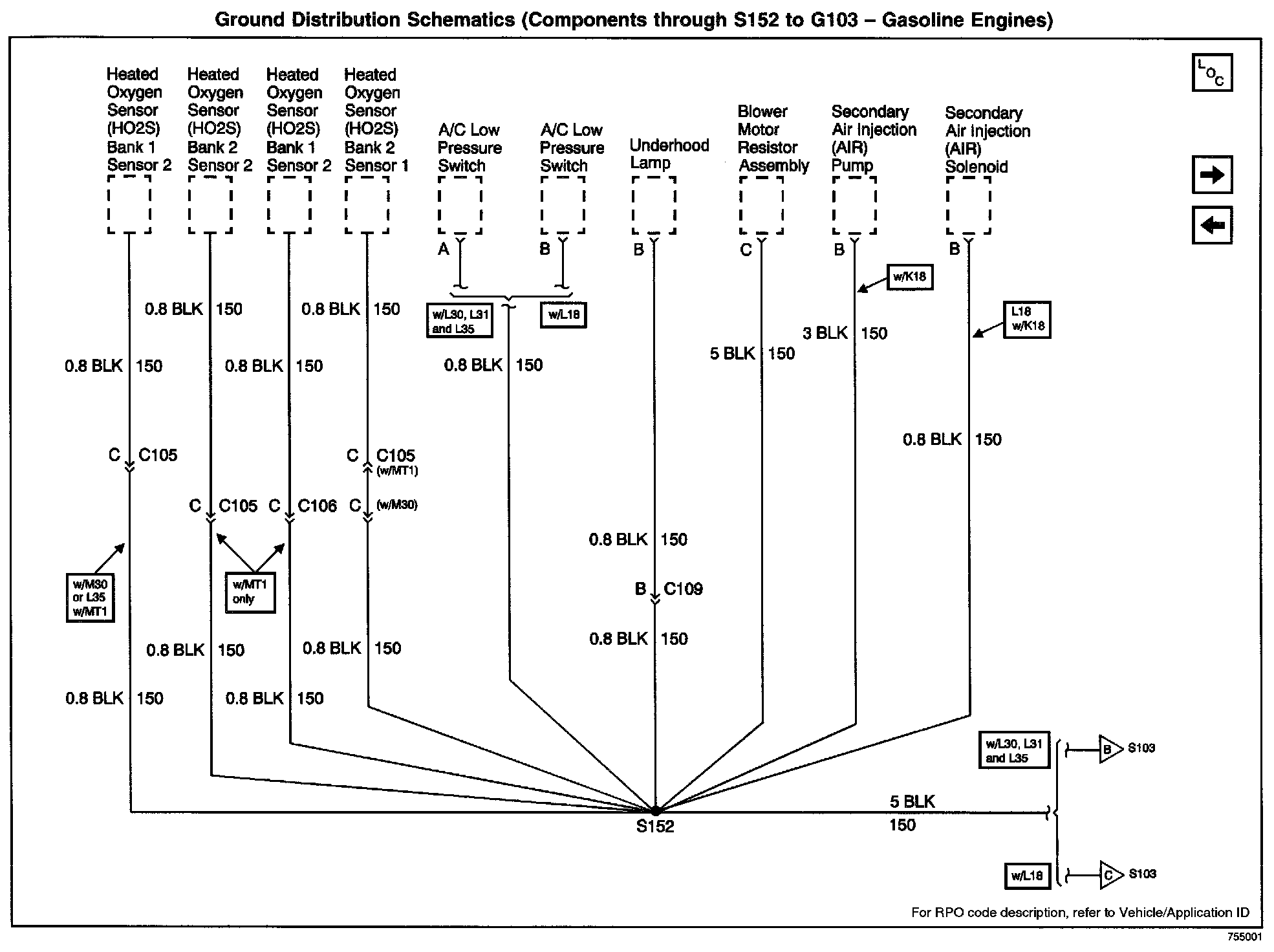

Ground Distribution Schematics: Components Through S152 To G103 - Gasoline Engines:
