Home >> Chevy Truck >> 2002 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - HVAC >> Blower Motor Relay >> Diagrams

Blower Motor Relay: Diagrams

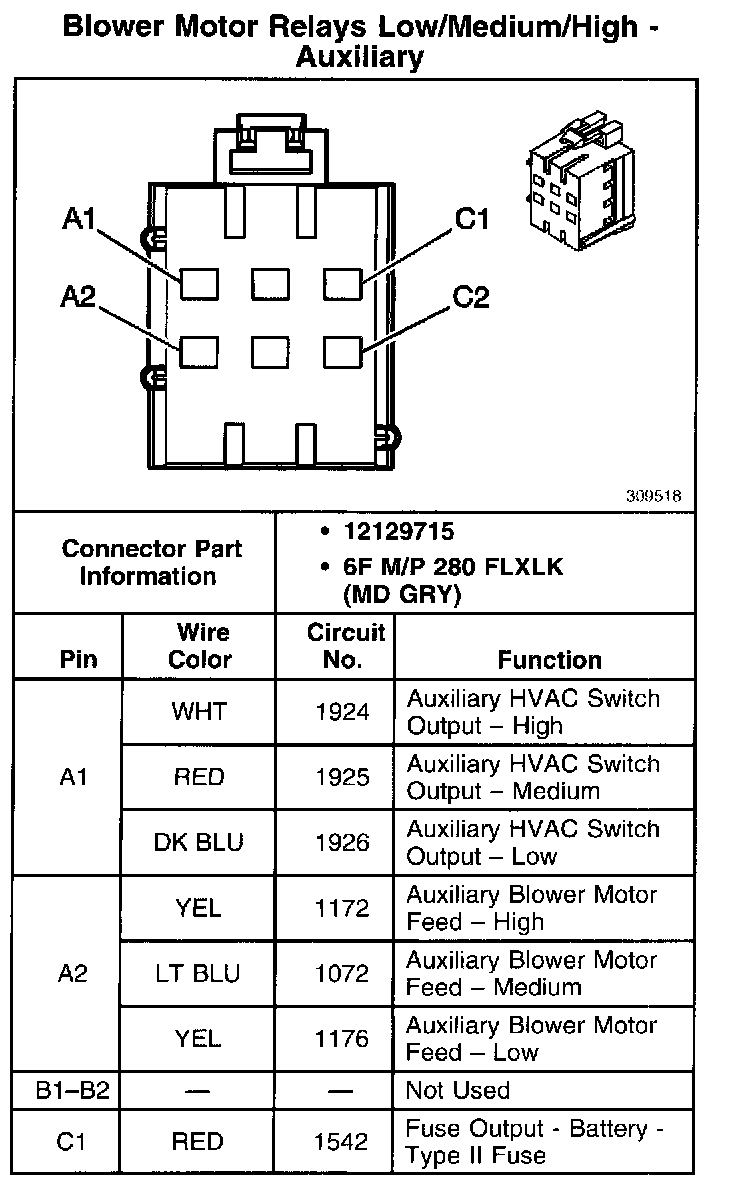

Blower Motor Relays Low/Medium/High - Auxiliary Part 1 - HVAC Systems - Manual:



Blower Motor Relays Low/Medium/High - Auxiliary Part 2 - HVAC Systems - Manual:
