Fuel Fill Pipe

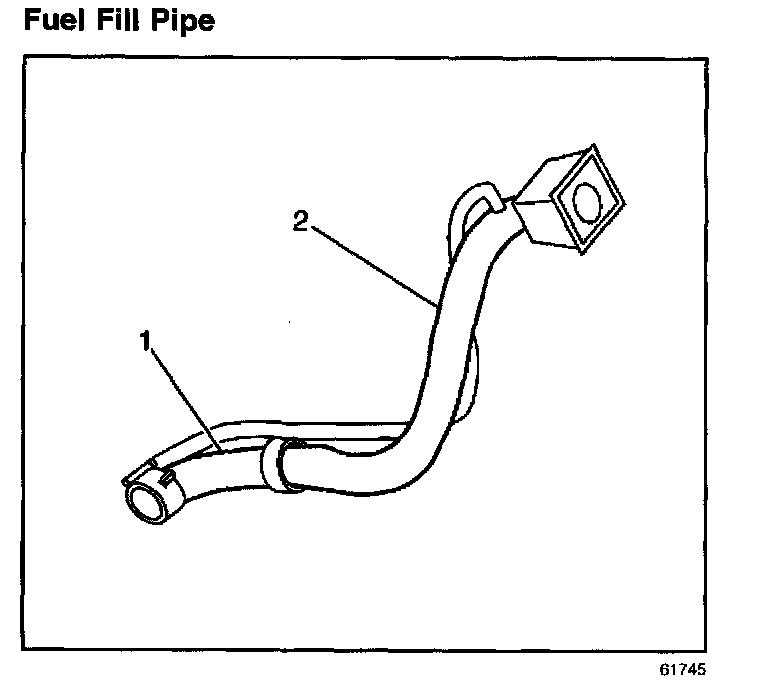

Fuel Fill Pipe:




The fuel fill pipe (2) has a built-in restrictor and deflector in order to prevent refueling with leaded fuel.
