Express 1 Ton Van V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Vanity Lamp
>>
Diagrams
>>
Connector Views
Connector Views

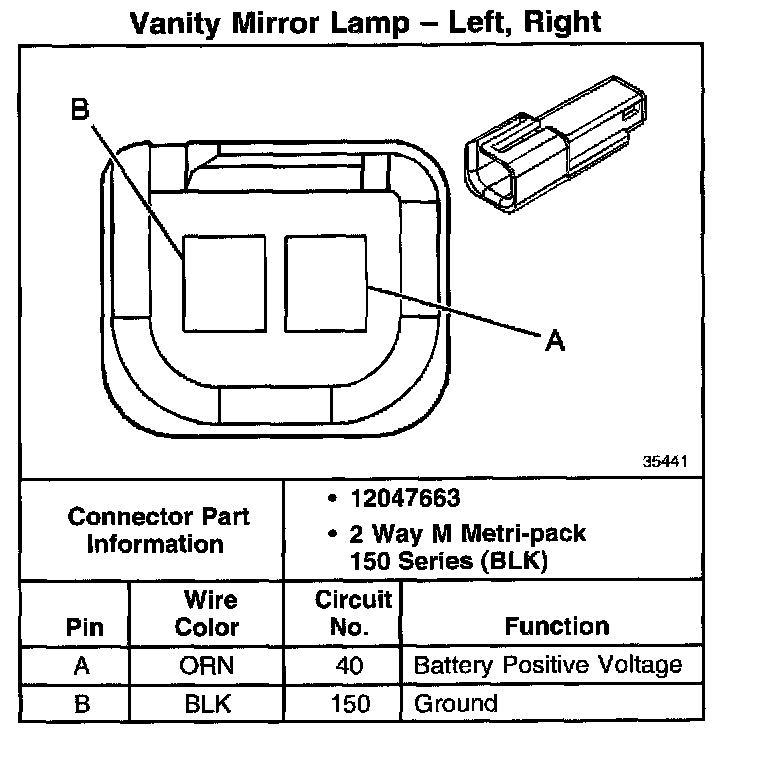

Vanity Mirror Lamp - Left, Right:
