Turn Signal Lamp
>>
Diagrams
>>
Export
Export

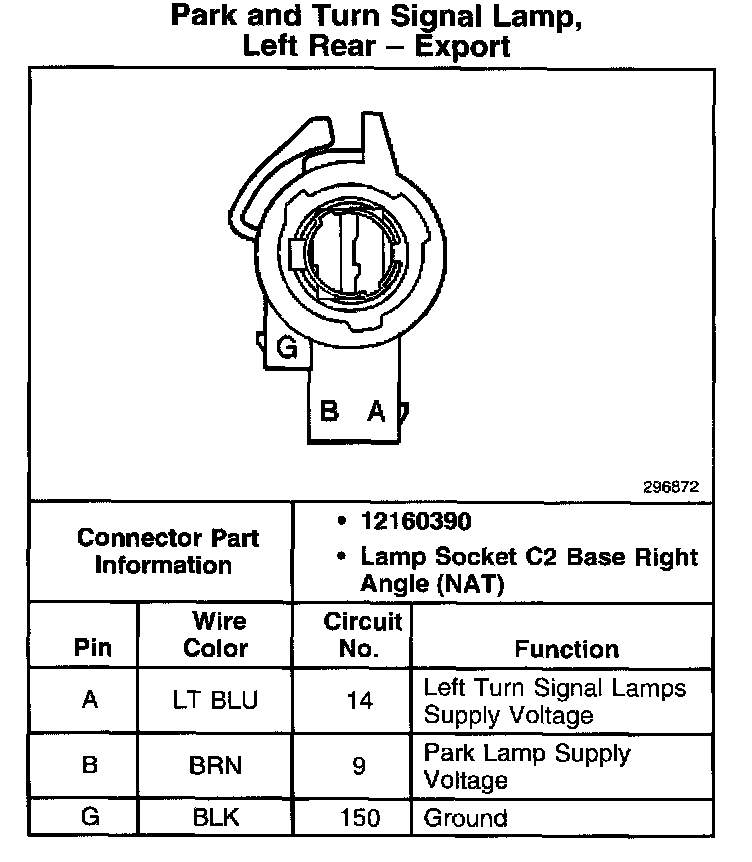

Park And Turn Signal Lamp, Left Rear - Export:
Park And Turn Signal Lamp, Right Rear - Export:

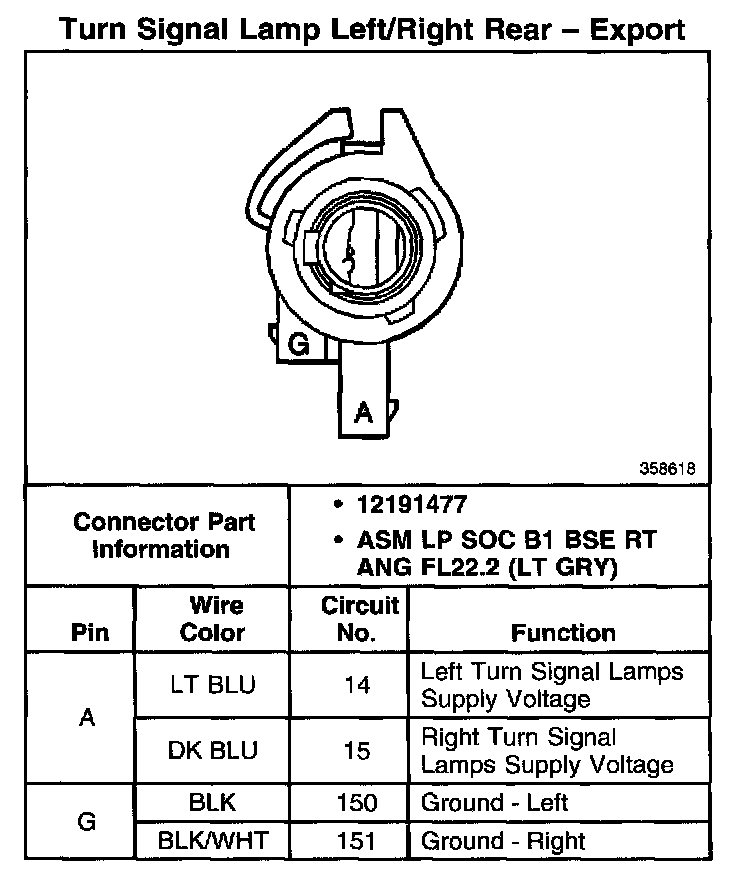

Turn Signal Lamp Left/Right Rear - Export:
