Home >> Chevy Truck >> 2002 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Headlight Leveling Inoperative

Headlight Leveling Inoperative

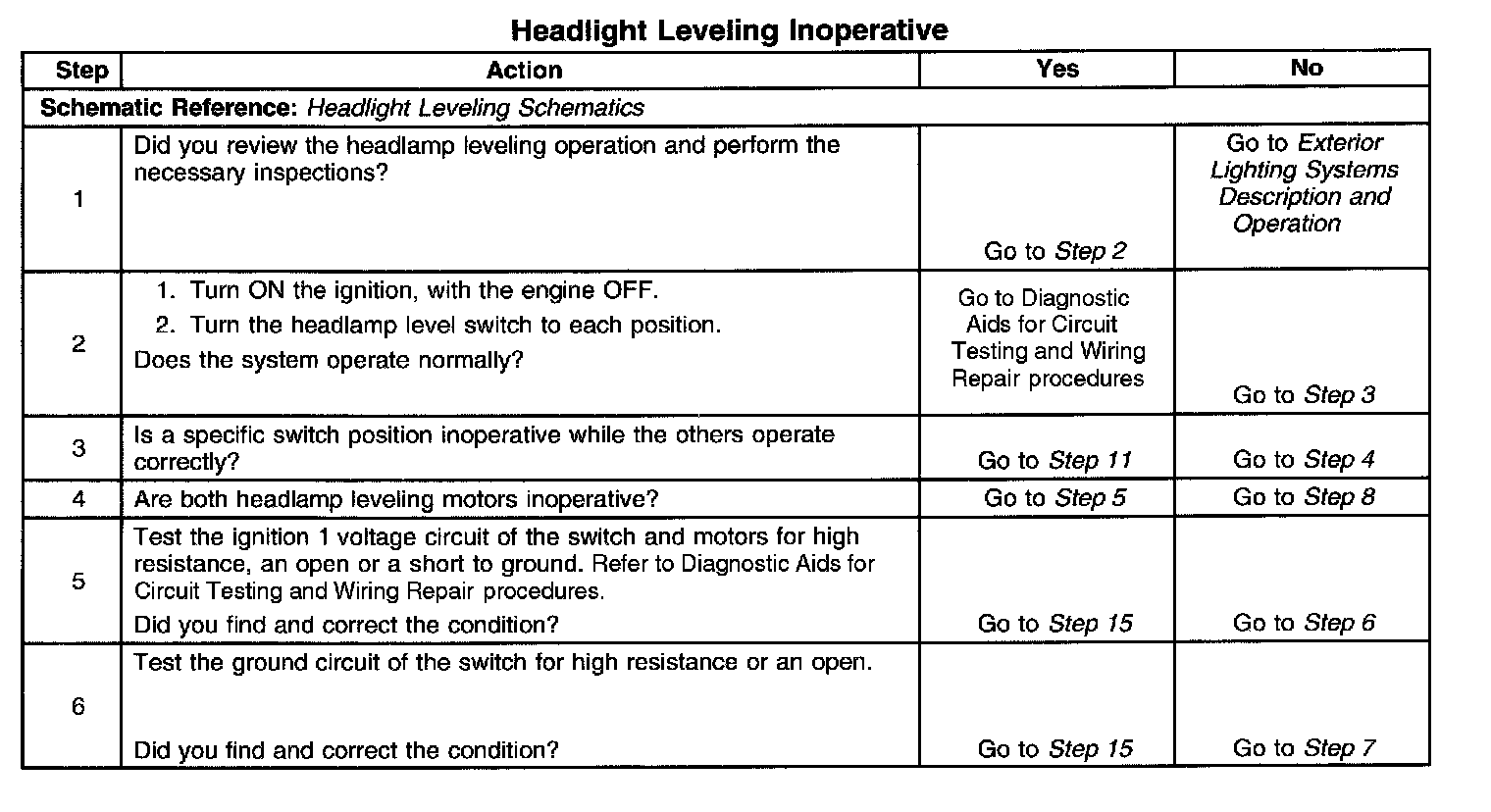

Steps 1-6:

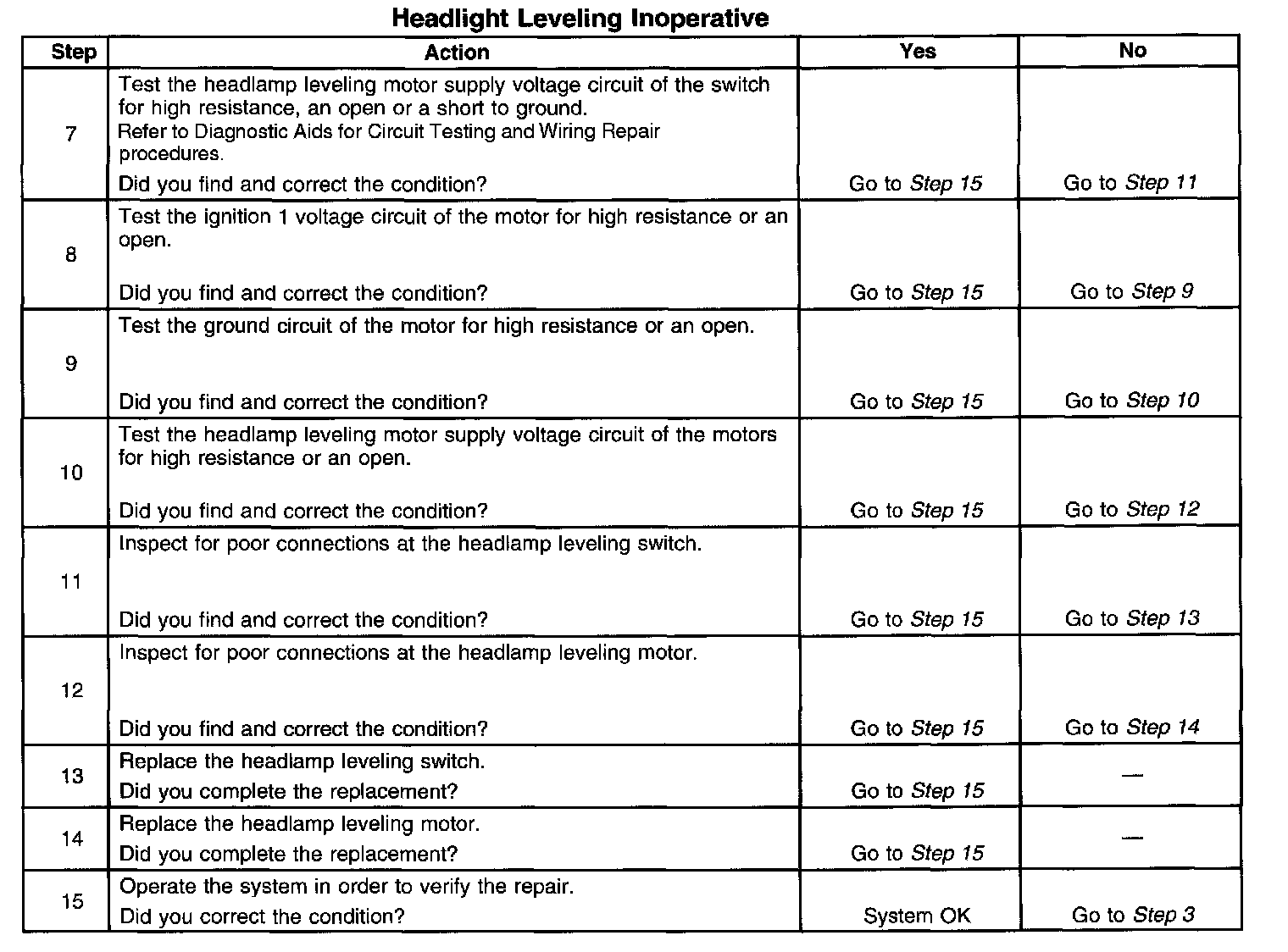

Steps 7-15:
