Home >> Chevy Truck >> 2002 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Daytime Running Lamps (DRL) - Inoperative (Export)

Daytime Running Lamps (DRL) - Inoperative (Export)

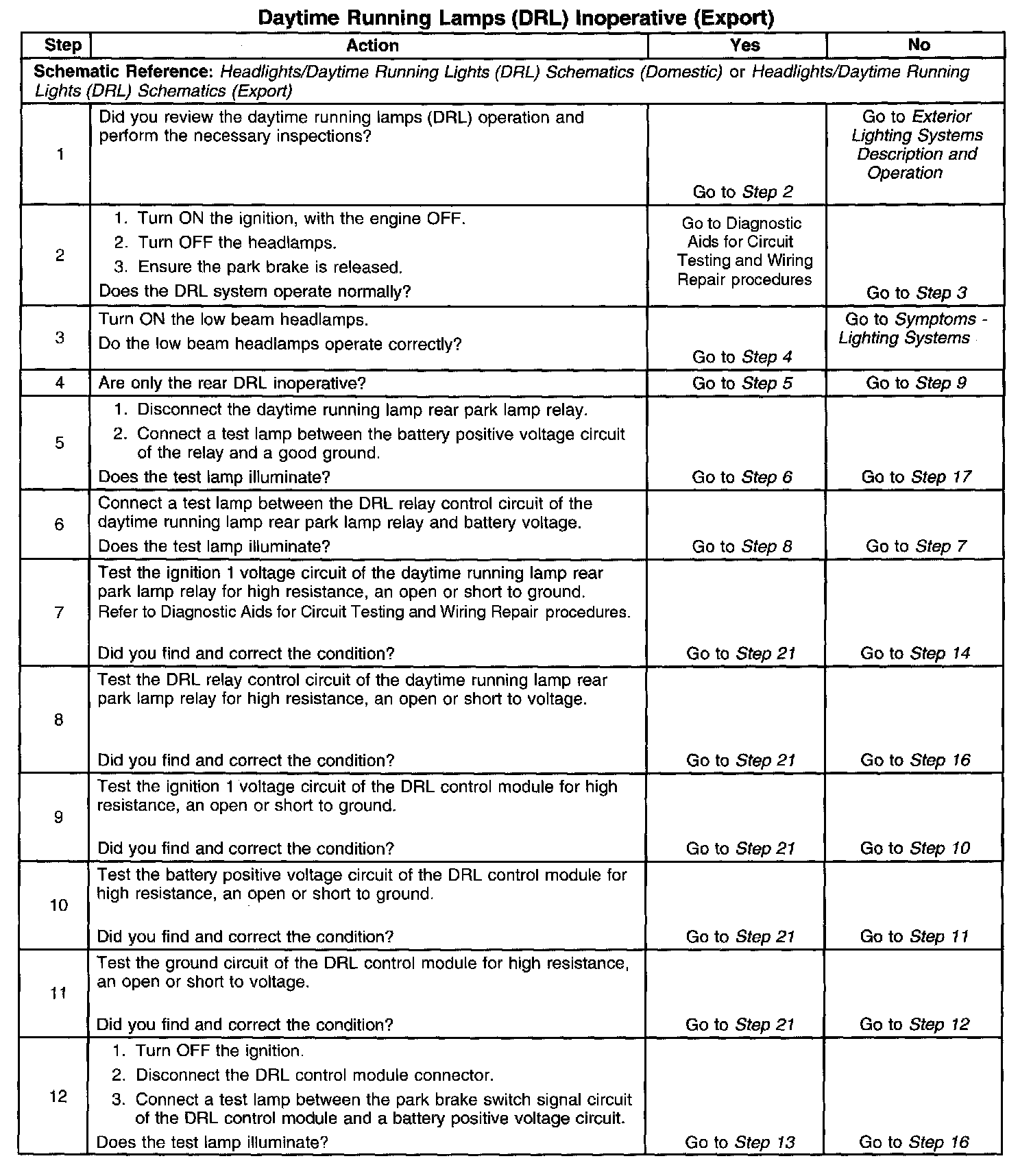

Steps 1-12:

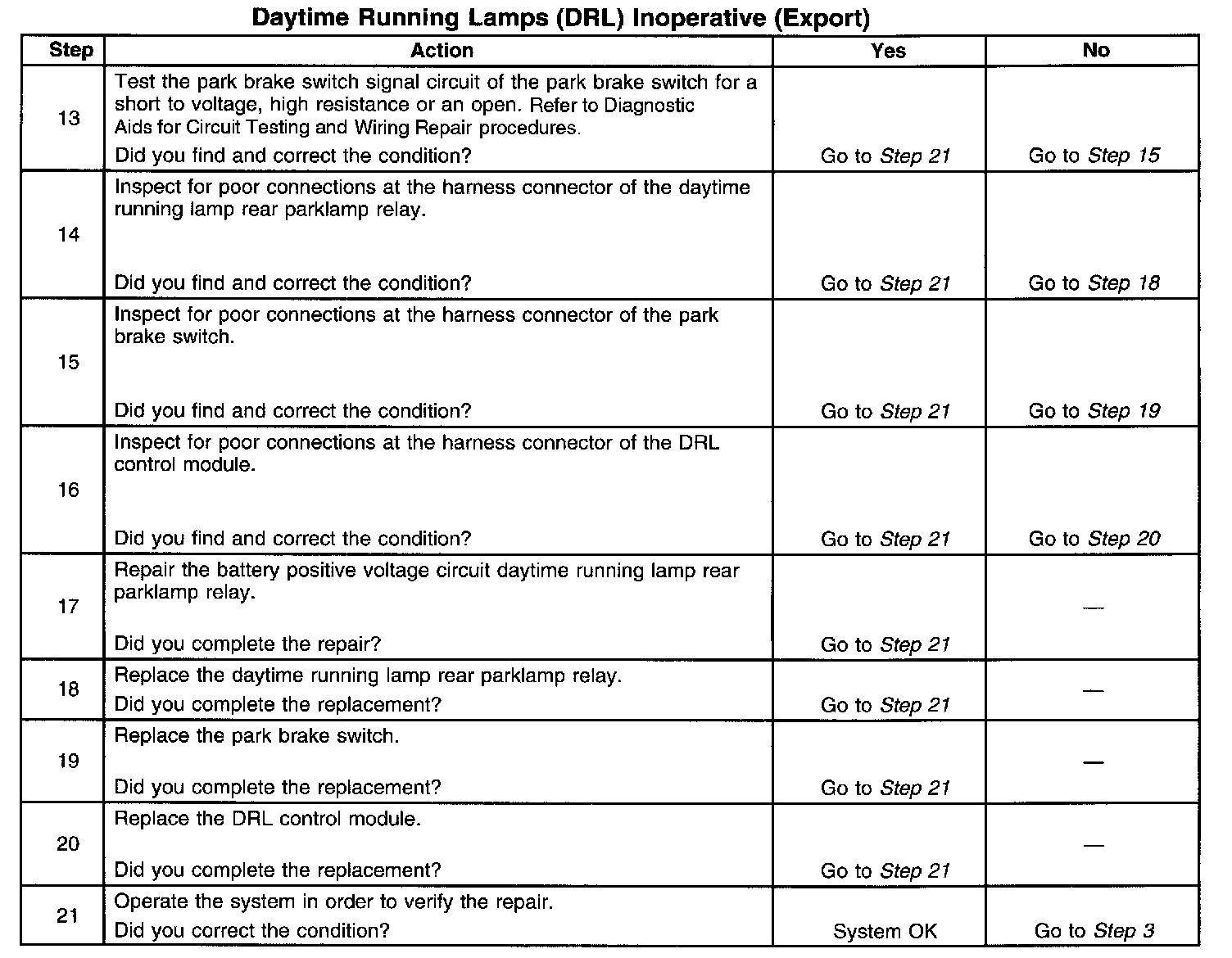

Steps 13-21:
