Connector Views

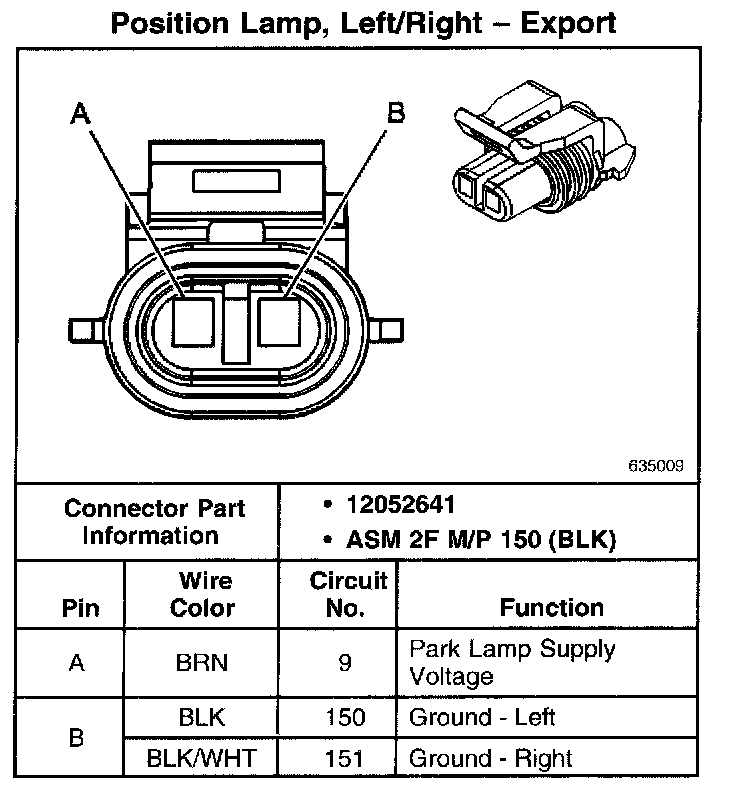

Position Lamp, Left/Right - Export:
Side Marker, Left Front - Domestic:

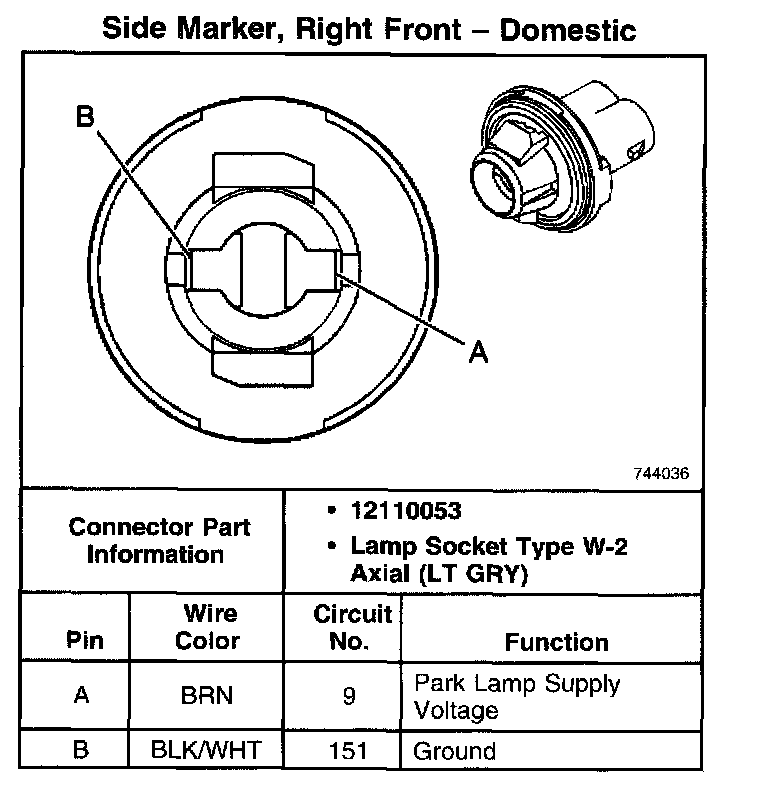

Side Marker, Right Front - Domestic:
Tail/Stop Lamp - Left, Right:

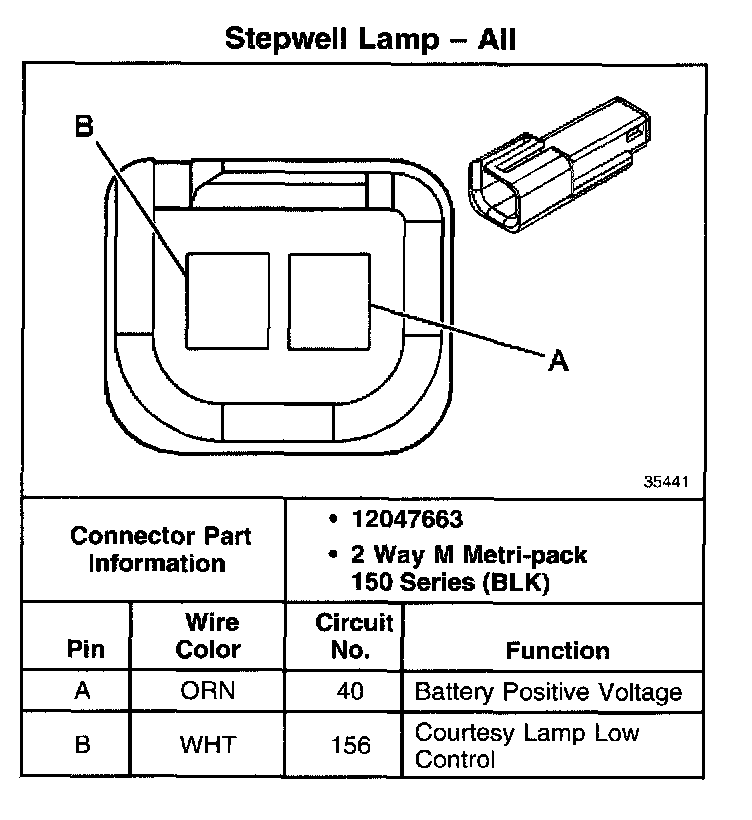

Stepwell Lamp - All:
