Compressor Clutch Does Not Engage

TEST DESCRIPTION

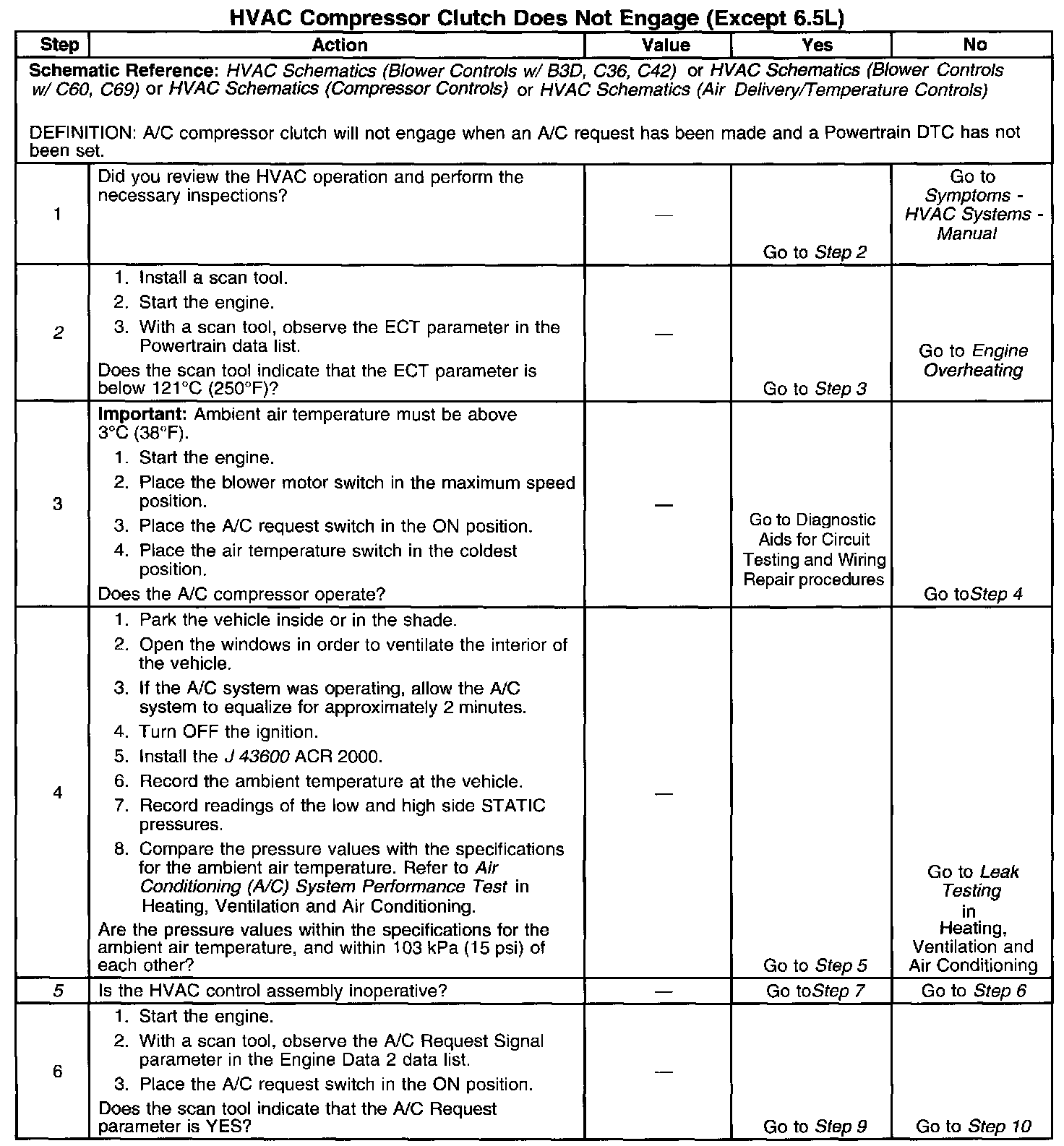

Steps 1-6:

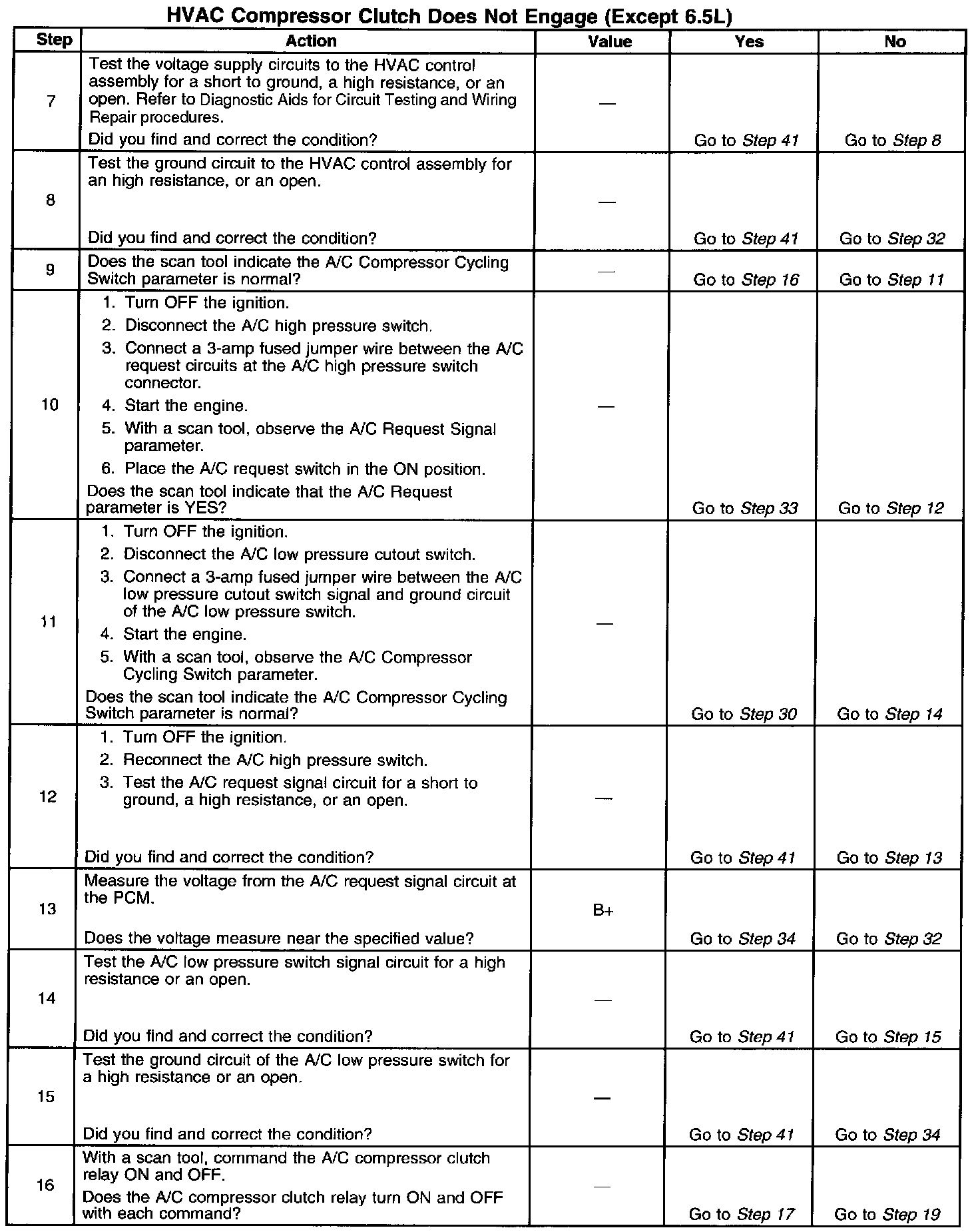

Steps 7-16:

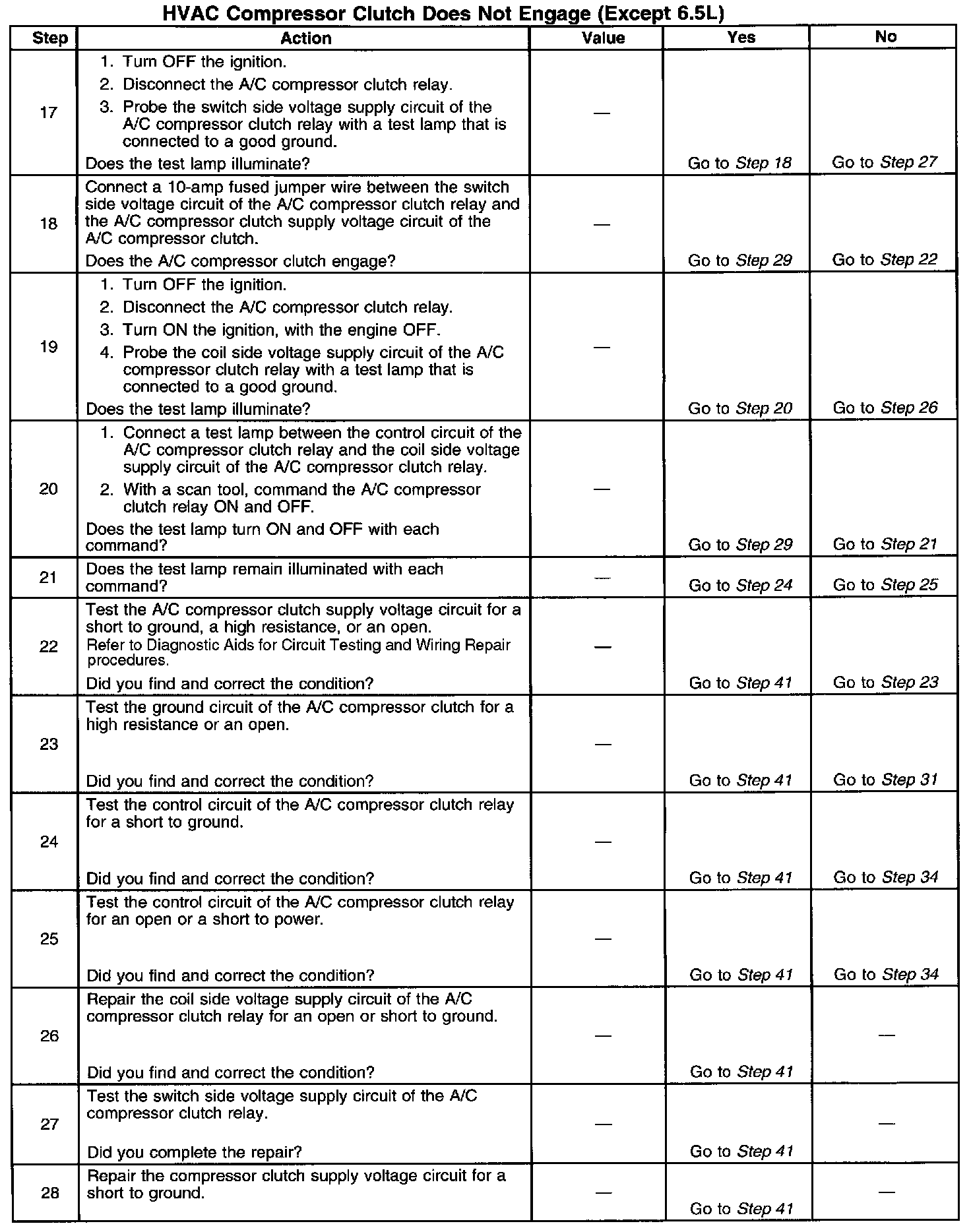

Steps 17-28:

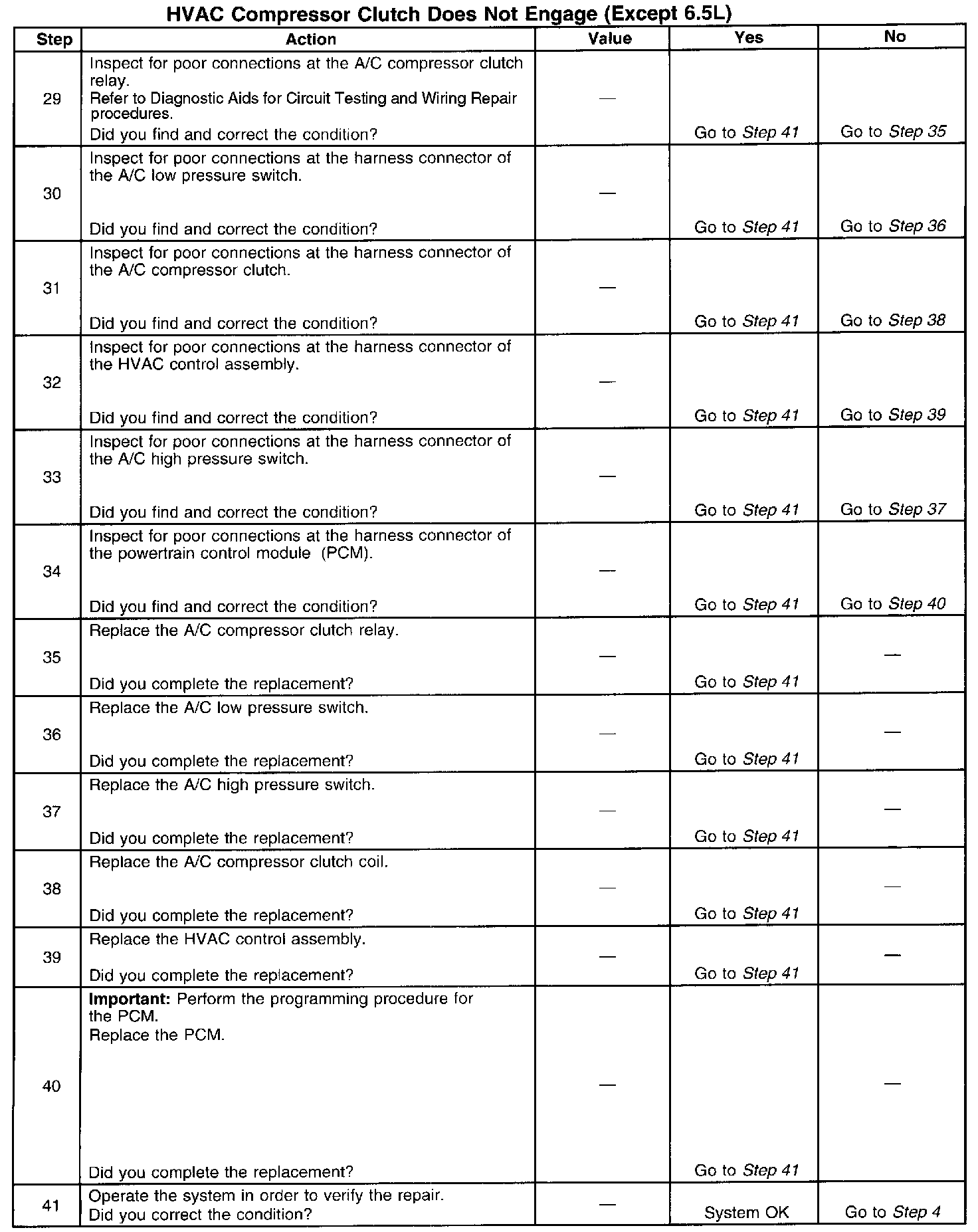

Steps 29-41:

The number(s) below refer to the step number(s) on the diagnostic table.
2. The A/C compressor relay output is disabled if engine coolant temperature is above 121°C (250°F).
5. The HVAC control assembly is inoperative when the assembly does not respond to any operator control requests.

For a description of the RPO Code(s) shown in this article/images refer to the RPO Code List found at Vehicle/Application ID. RPO Codes
