A/C System Performance Table - Rear A/C

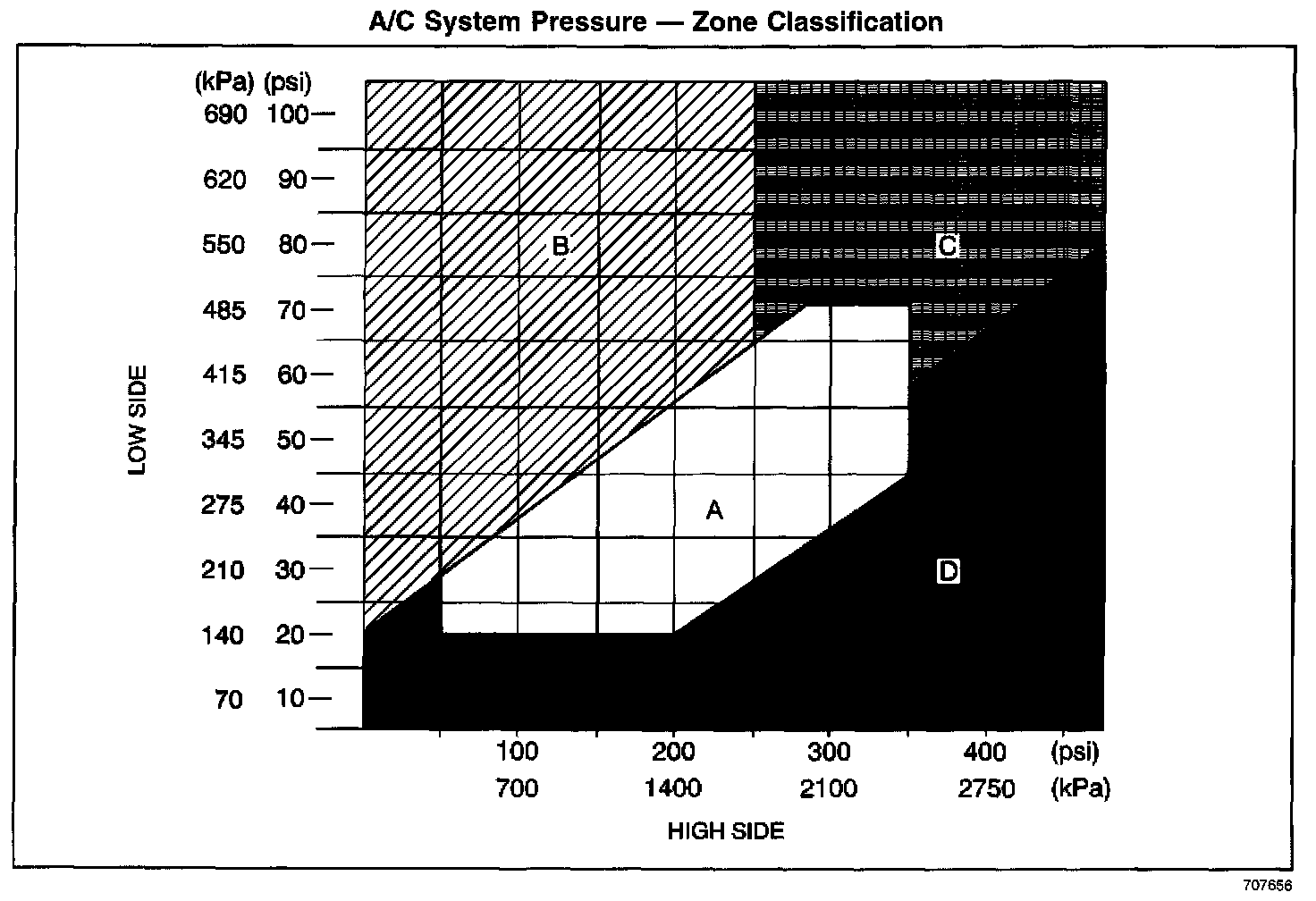

A/C System Performance - Zone Classification:

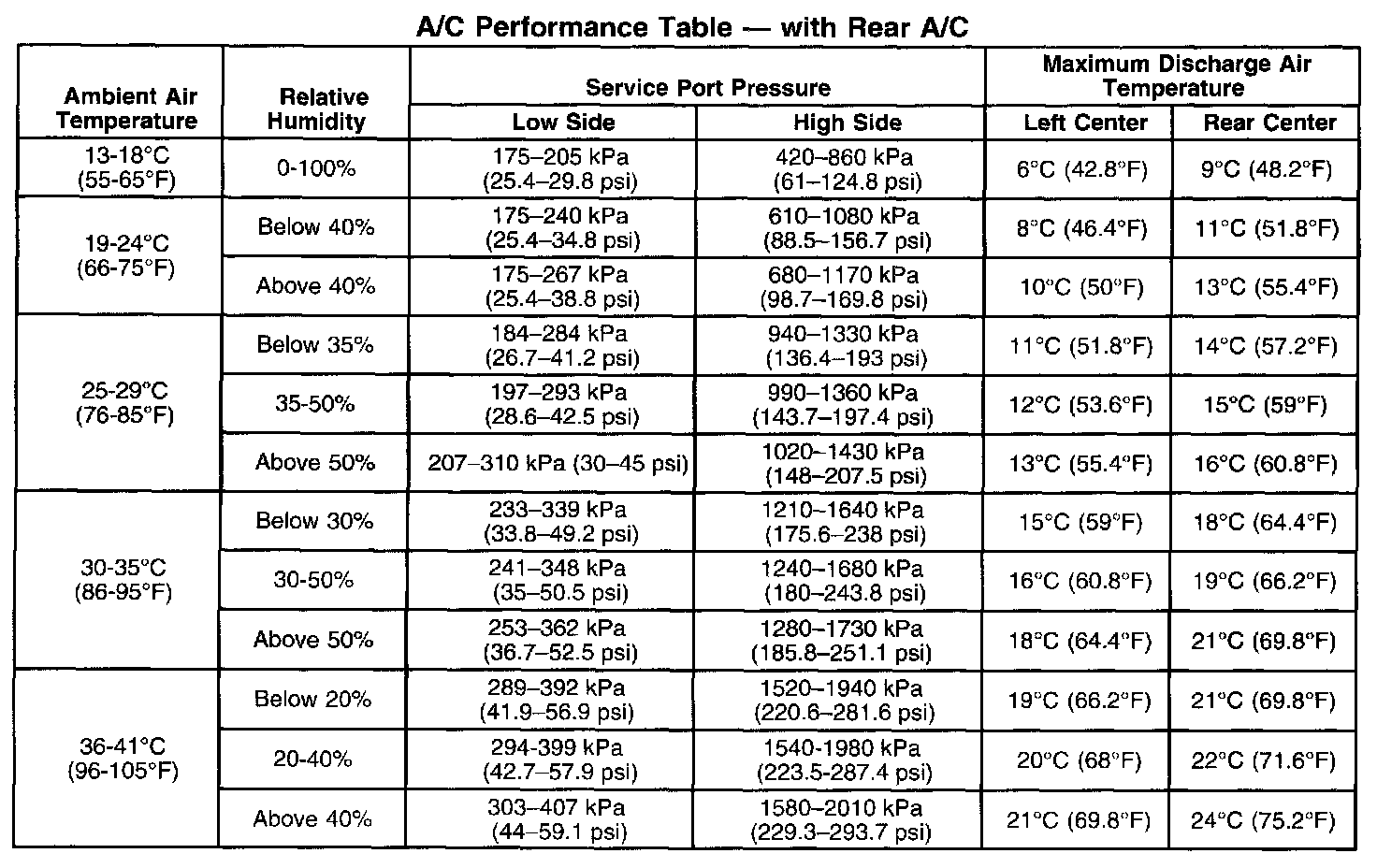

A/C Performance Table - With Rear A/C Part 1:

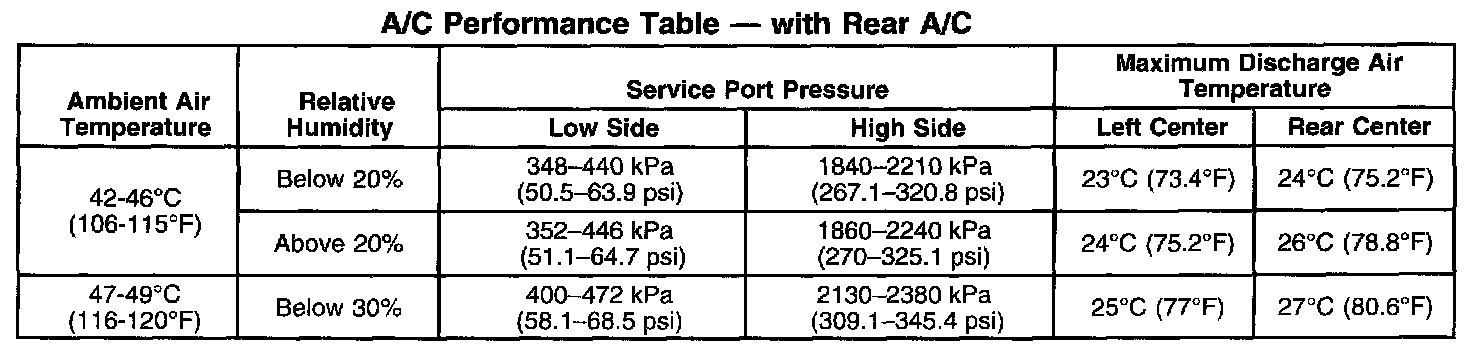

A/C Performance Table - With Rear A/C Part 2:
