A/C System Performance Table

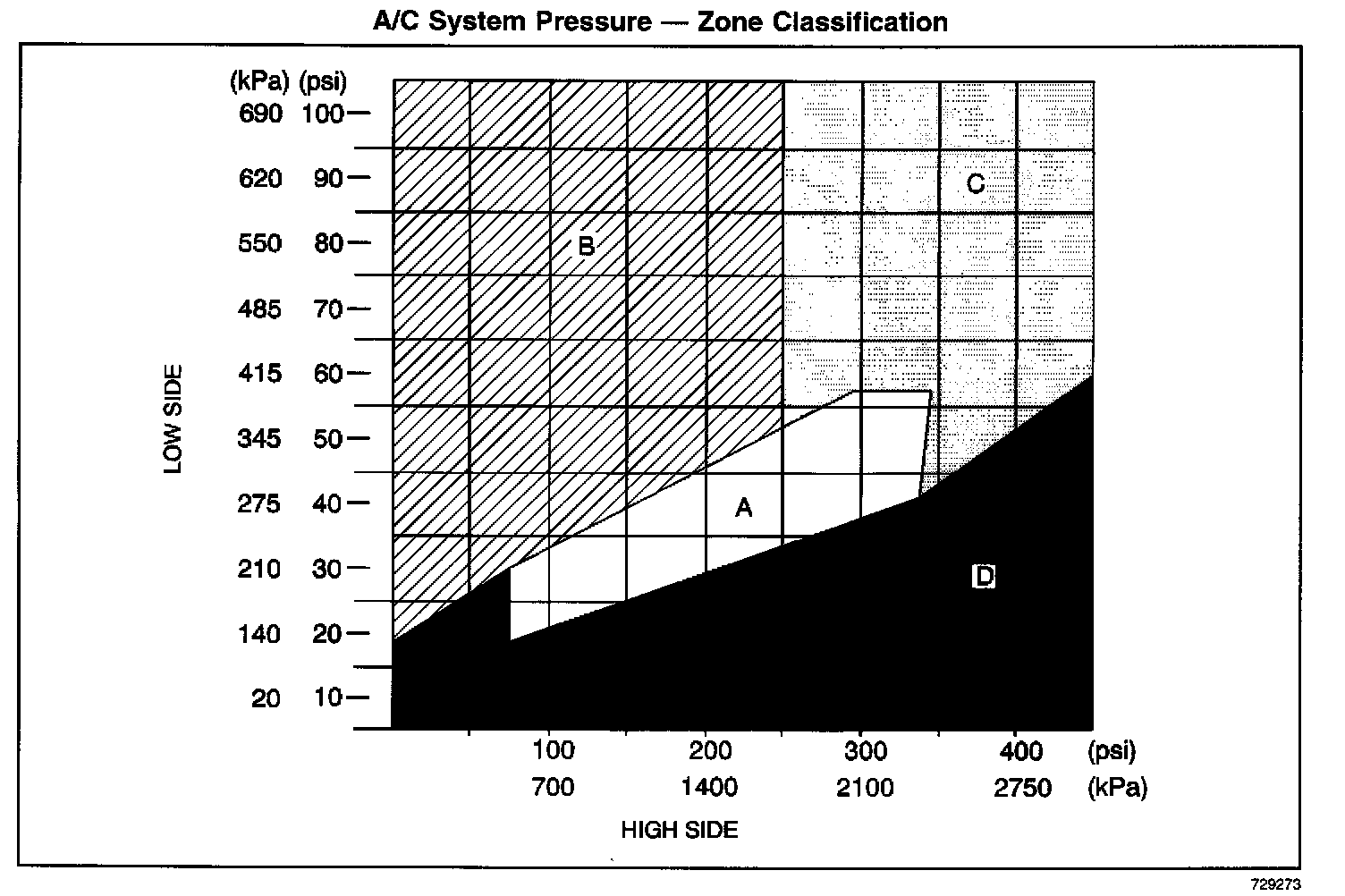

A/C System Pressure - Zone Classification:

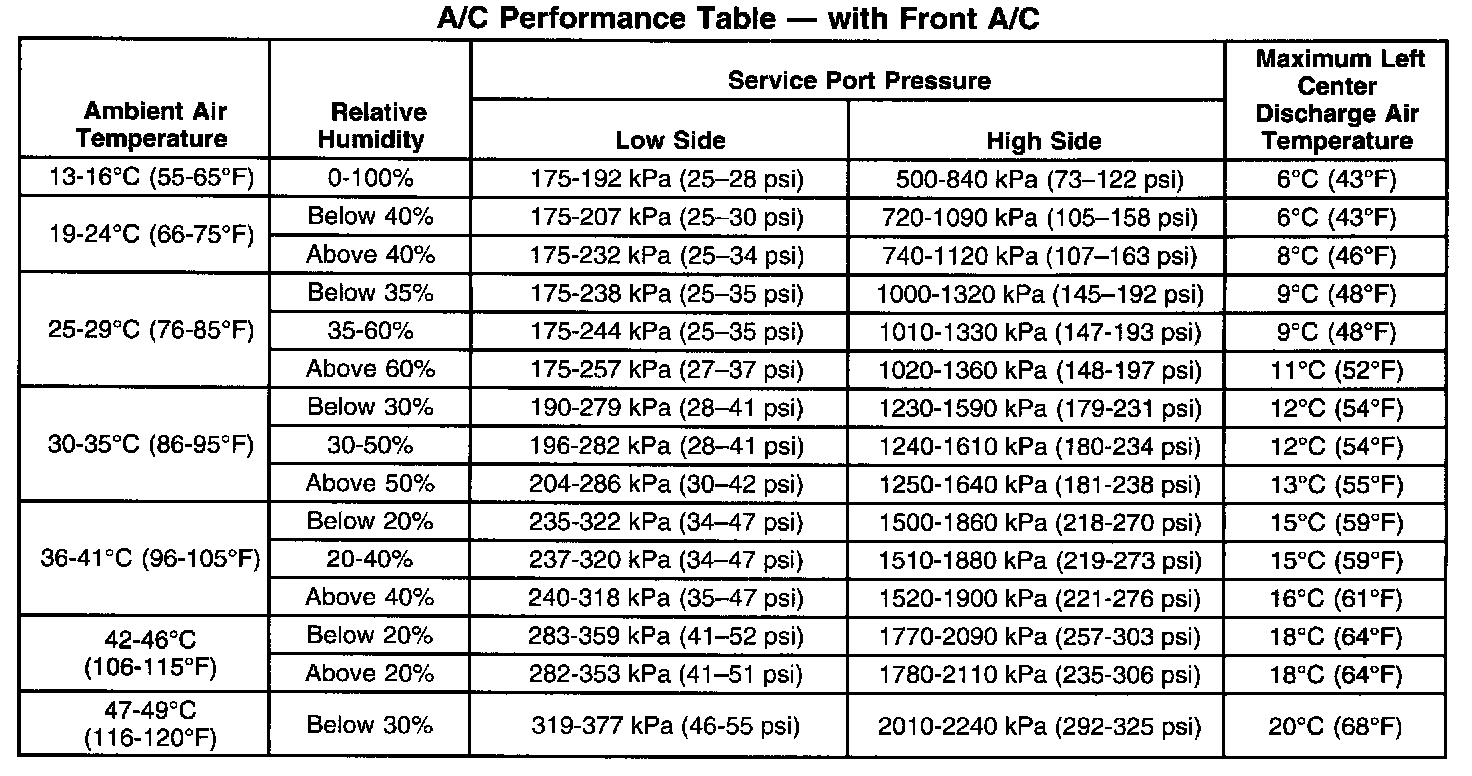

A/C Performance Table - With Front A/C:
