43. Valve Rocker Arm Stud Removal

Valve Rocker Arm Stud Removal

^ Tools Required
- J 5802-01 Rocker Arm Stud Remover

Important:
^ Valve rocker arm ball studs that have damaged threads, or are loose in cylinder heads, should be replaced.
^ Valve rocker arm ball studs are pressed into the cylinder head.
^ New valve rocker arm ball studs are available in 0.0762 mm (0.003 inch) and 0.3302 mm (0.013 inch) oversize.

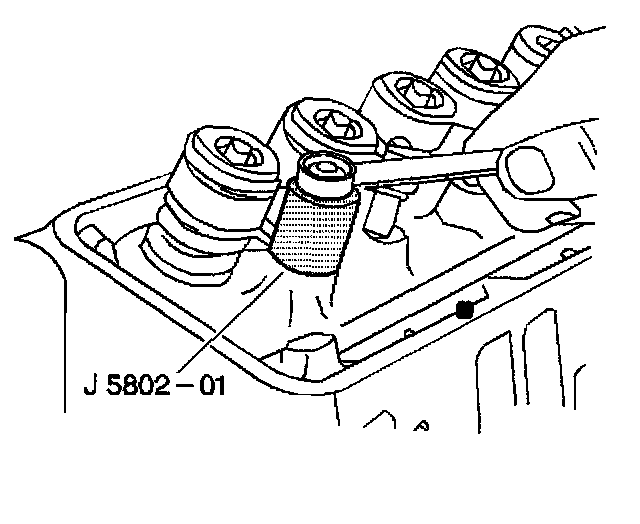

1. Place the J 5802-01 over the valve rocker arm ball stud to be removed.
2. Install a nut and a flat washer.
3. Rotate the nut clockwise to remove the valve rocker arm ball stud.
