19. Engine Front Cover Removal

Engine Front Cover Removal

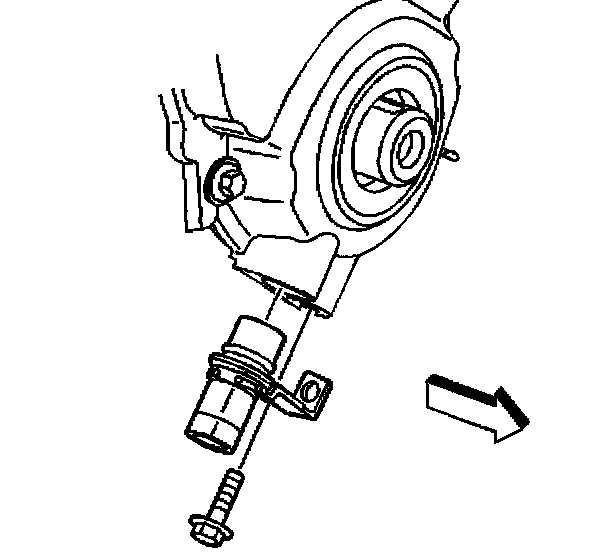

1. Remove the crankshaft position sensor bolt.
2. Remove the crankshaft position sensor.





Important: Always Install a NEW crankshaft position sensor seal, O-ring, during assembly.

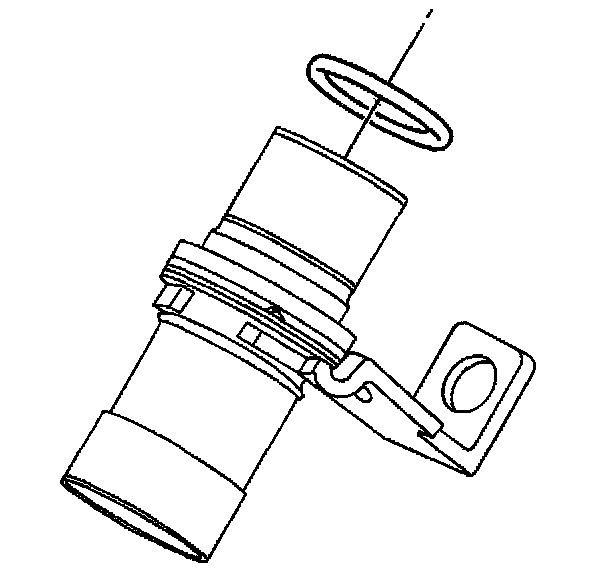

3. Remove the crankshaft position sensor seal, O-ring.
4. Discard the crankshaft position sensor seal, O-ring.

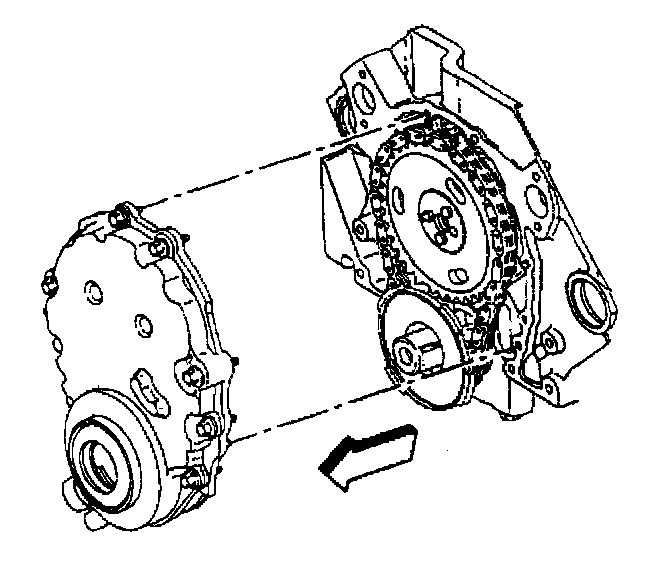

5. Remove the engine front cover bolts.
6. Remove the engine front cover and gasket.

Important: DO NOT reuse the composite engine front cover and gasket. Always Install a NEW engine front cover.

7. Discard the engine front cover and gasket.
