Home >> Chevy Truck >> 2002 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> System Diagram >> Video System Schematics >> Sensor and Control Circuits

Sensor and Control Circuits

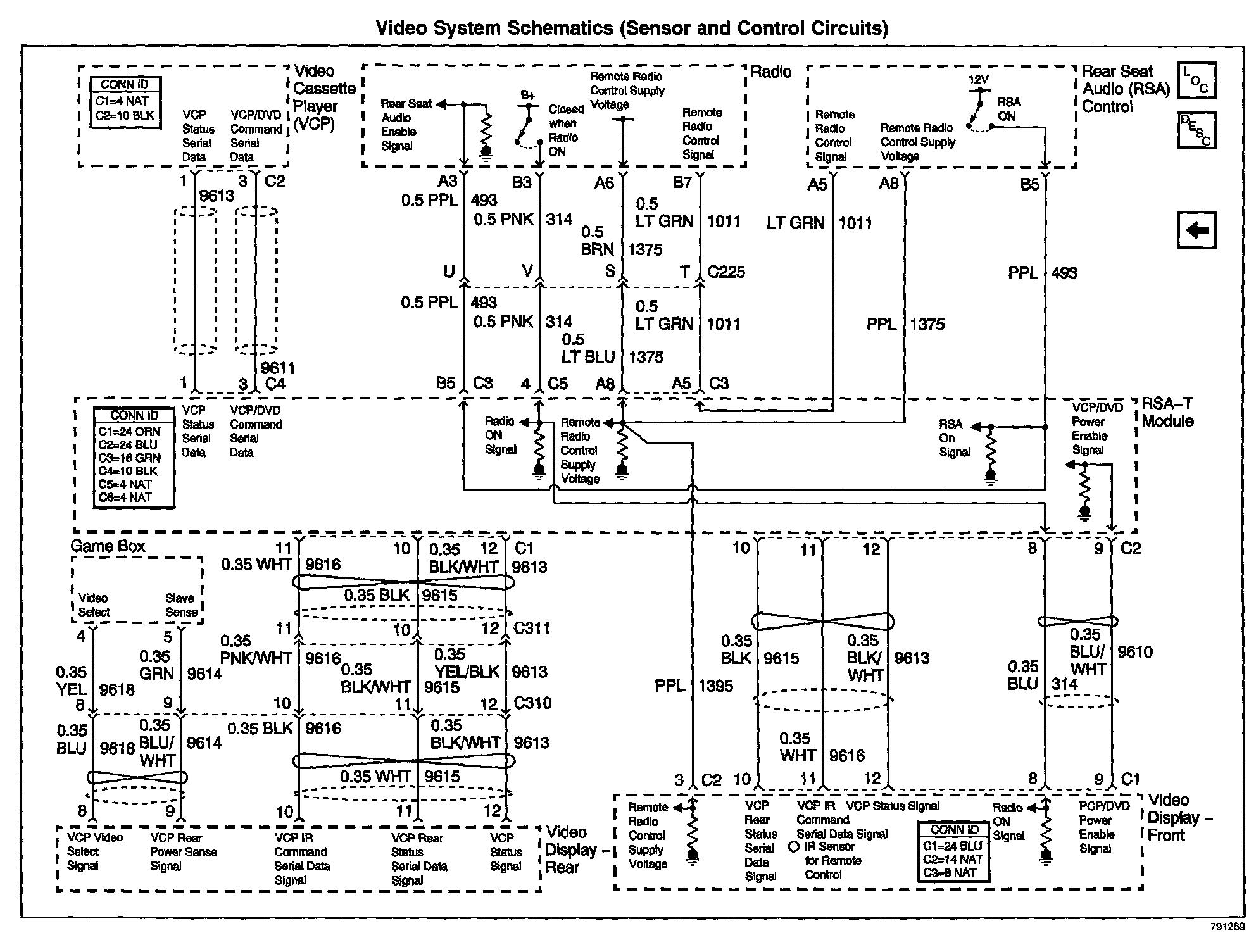

Video System Schematics: Sensor And Control Circuits:
