Controlled/Monitored Subsystems References

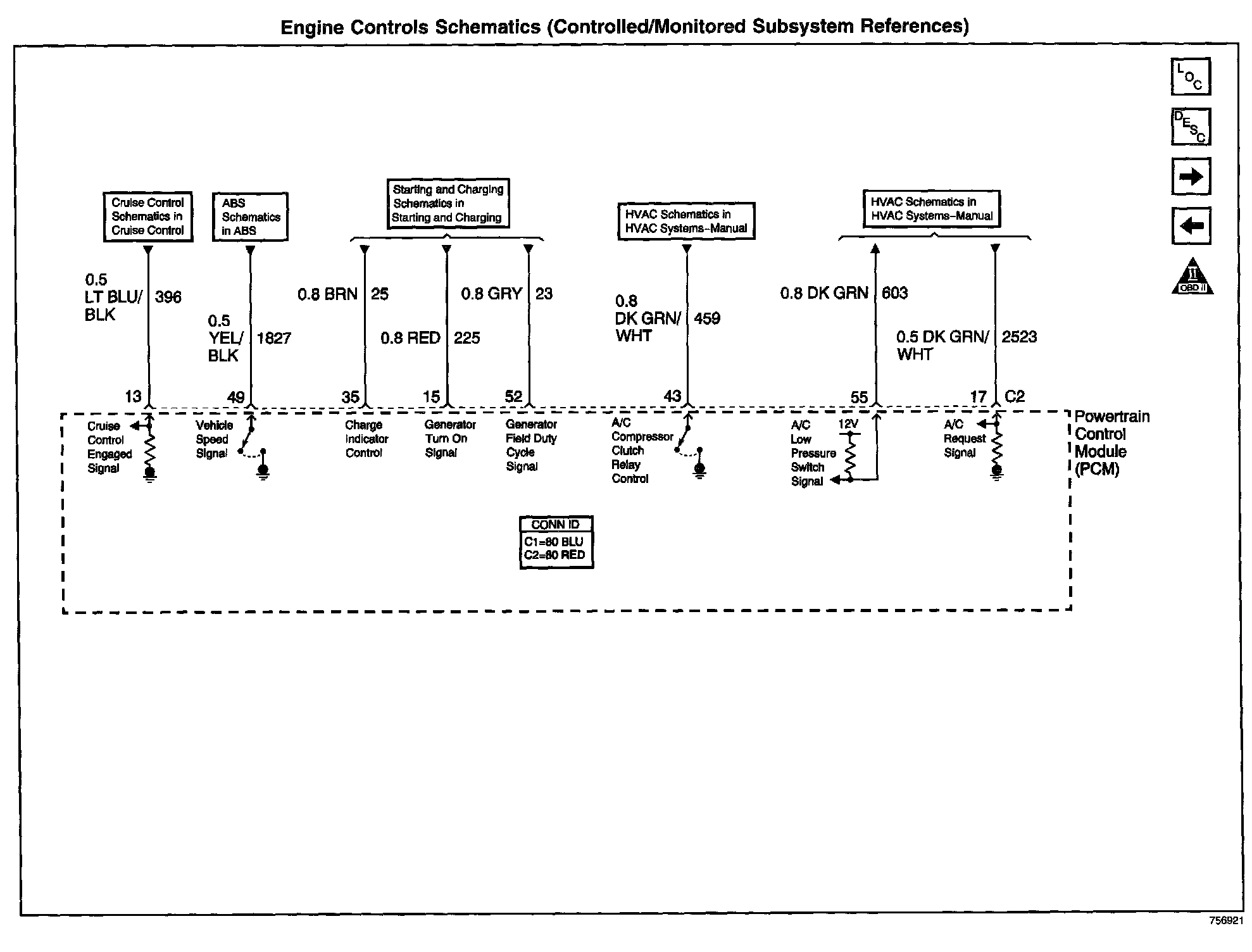

Engine Controls Schematics: Controlled/Monitored Subsystem References:
