Underhood Lamp, Power Window And Lock Switch Illumination

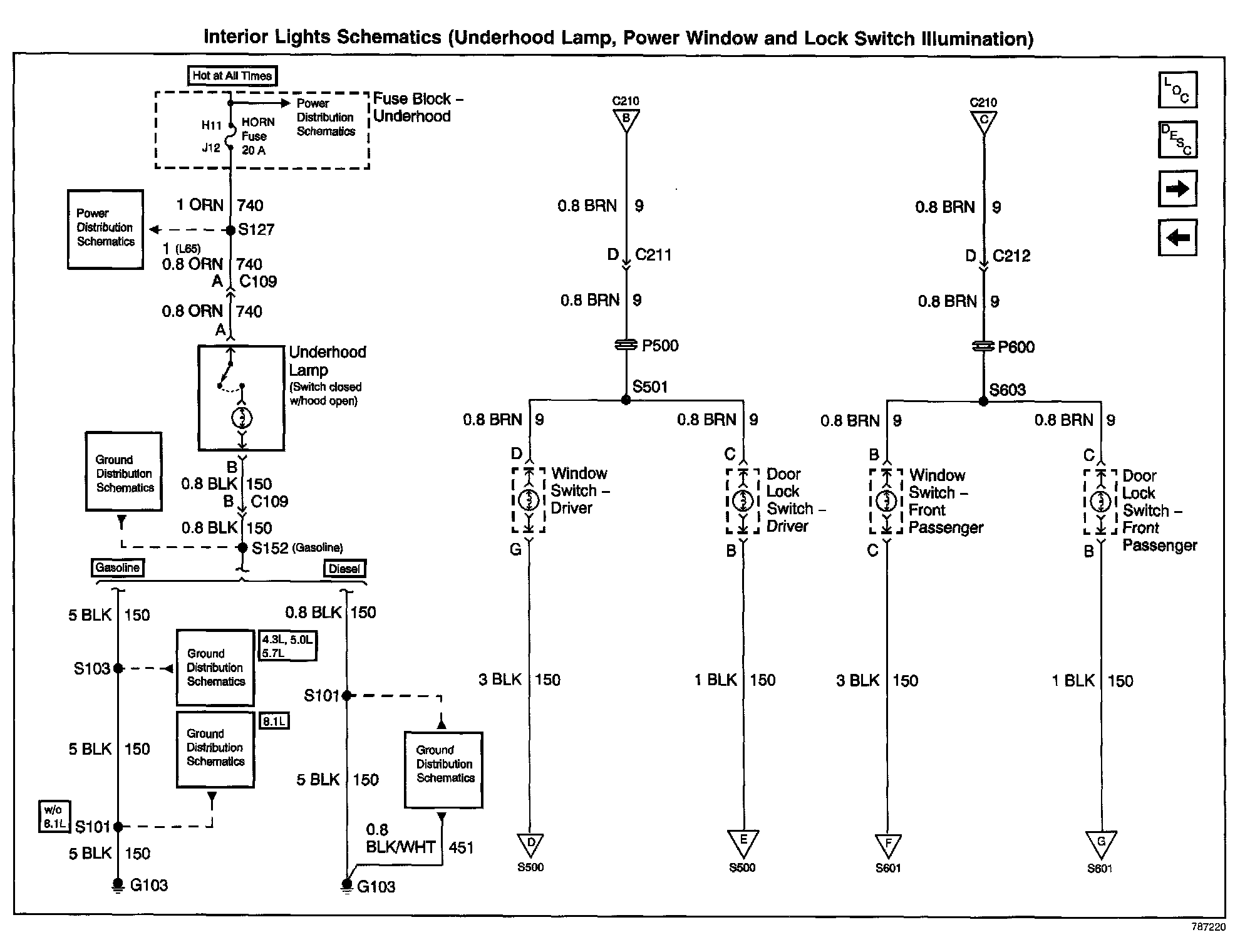

Interior Lights Schematics: Underhood Lamp, Power Window And Lock Switch Illumination:
