BLOWER and HTR-A/C Fuses, Heater and A/C Controller, Blower Motor, G103

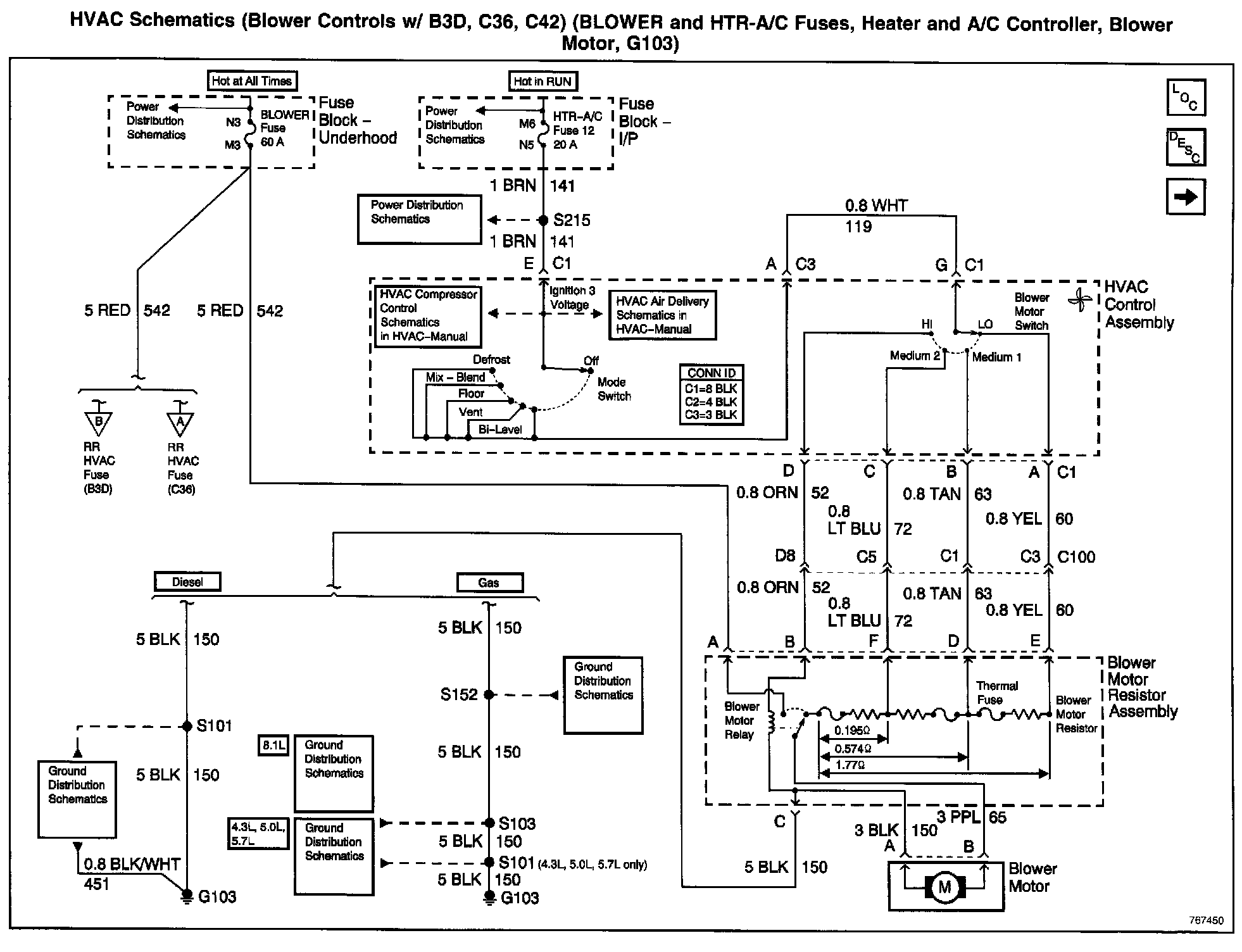

HVAC Schematics: Blower Controls W/B3D, C36, C42 (BLOWER And HTR-A/C Fuses, Heater And A/C Controller, Blower Motor, G103):





For a description of the RPO Code(s) shown in this article/images refer to the RPO Code List found at Vehicle/Application ID. RPO Codes
