RR HVAC Fuse, Front and Rear AUX HVAC Control Modules, Heater and A/C CNTRL Logic Module - Passenger

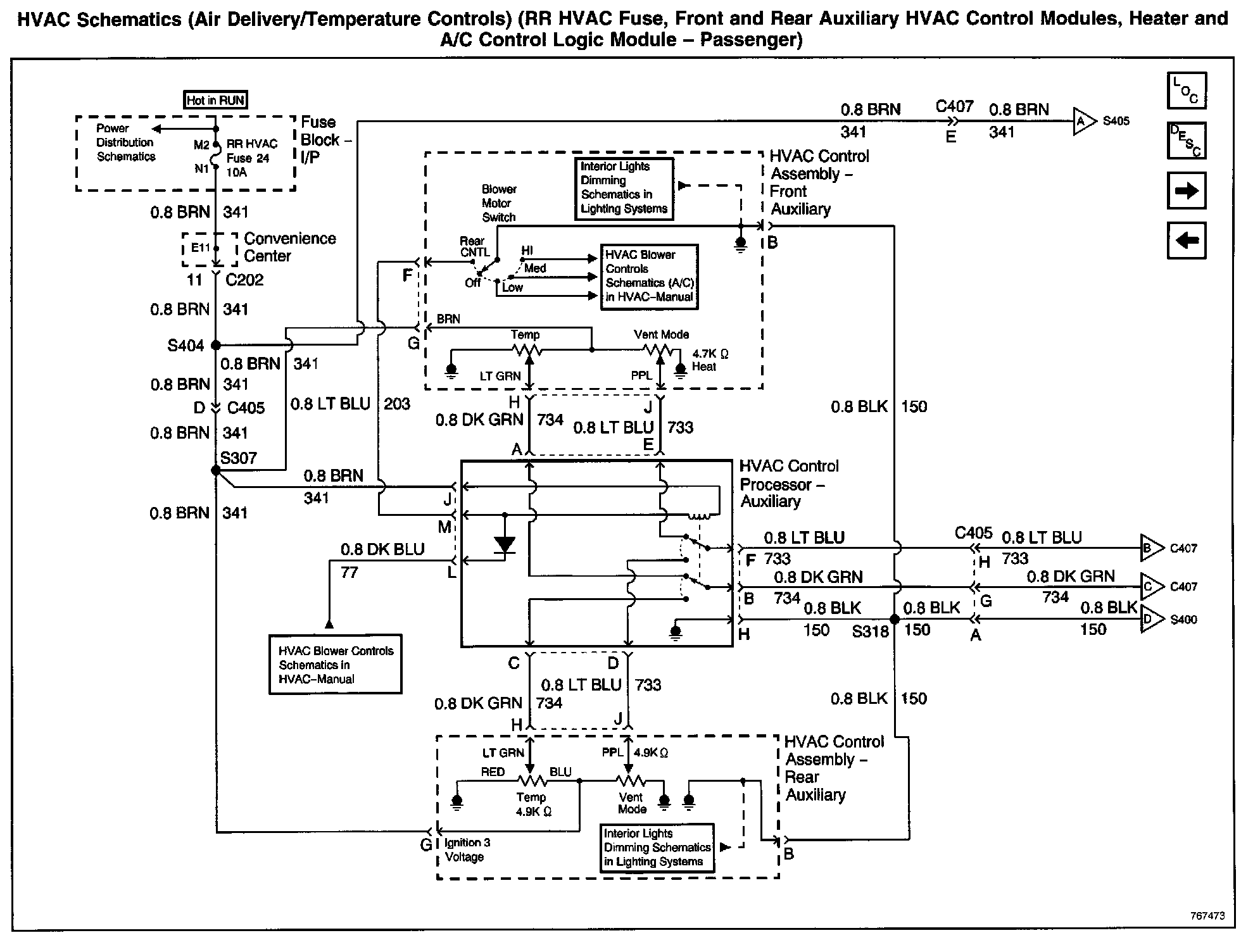

HVAC Schematics: Air Delivery/Temperature Controls (RR HVAC Fuse, Front And Rear Auxiliary HVAC Control Modules, Heater And A/C Control Logic Module - Passenger):
