RR HVAC Fuse, Front Auxiliary HVAC Control Module - Cargo

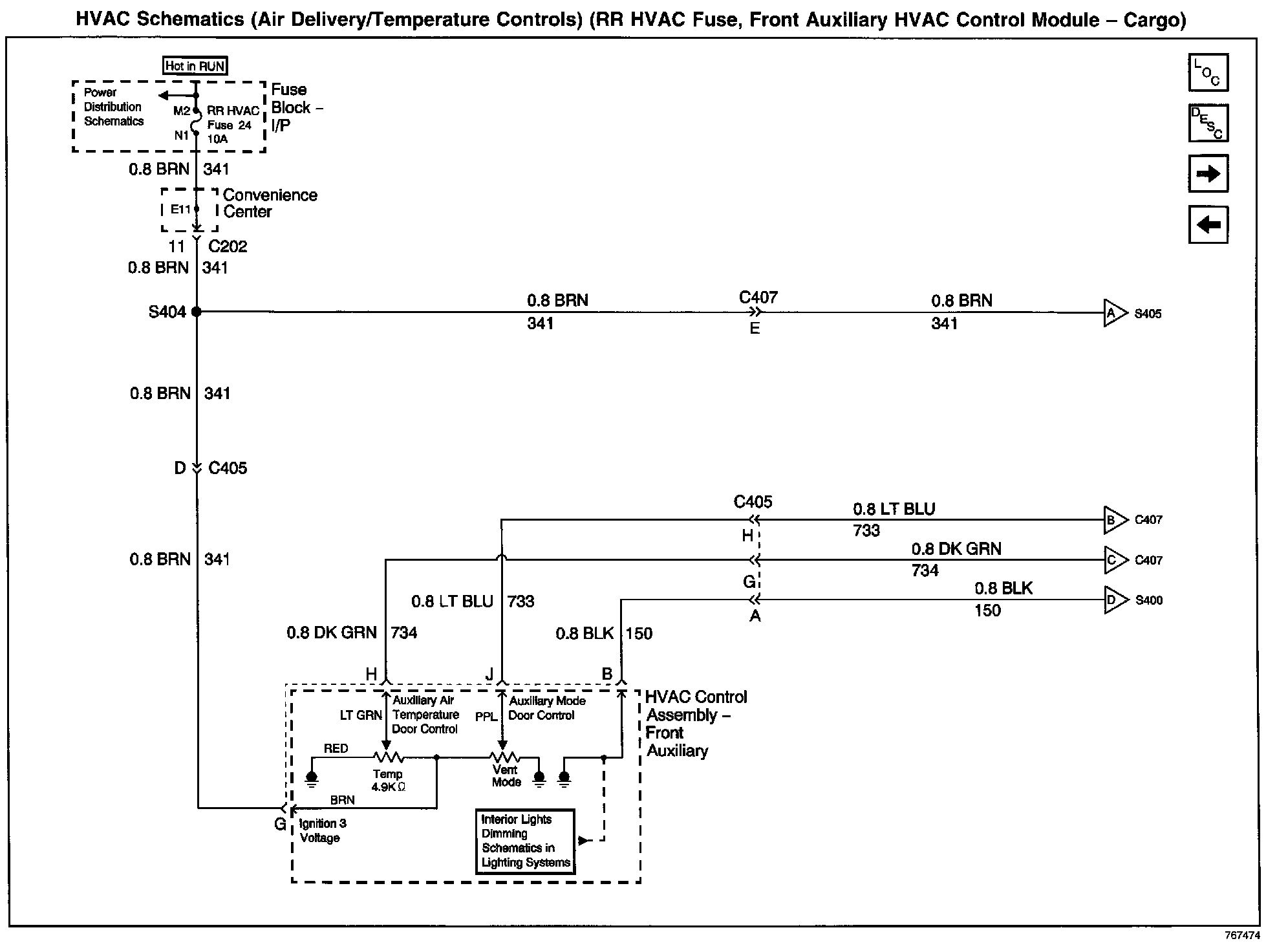

HVAC Schematics: Air Delivery/Temperature Controls (RR HVAC Fuse, Front Auxiliary HVAC Control Module - Cargo):
