Power DR Lock Module, Door Jamb SW, DR Lock SW-Export Only
Power DR Lock Module, Door Jamb SW, DR Lock SW-Export Only

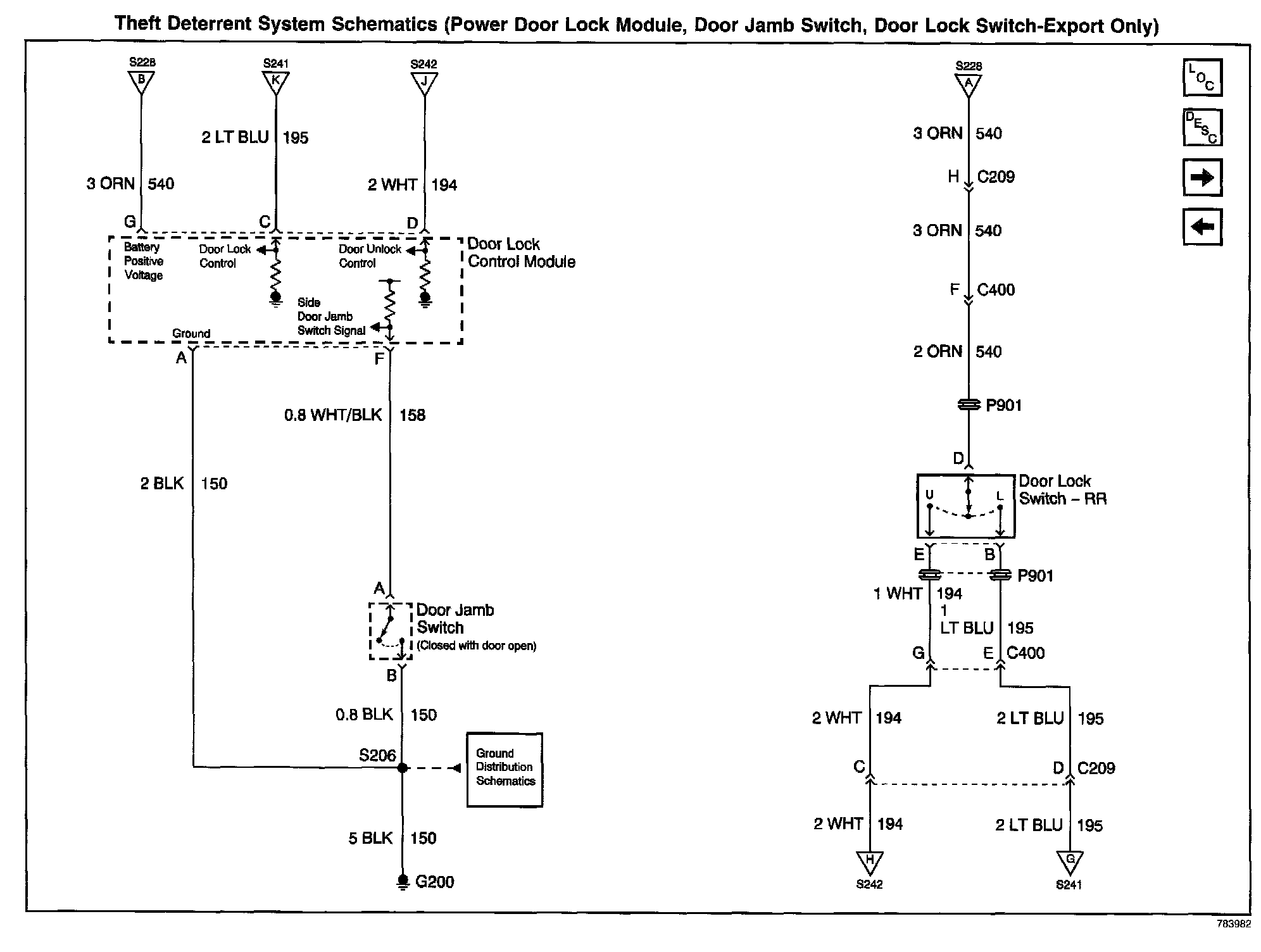

Theft Deterrent System Schematics: Power Door Lock Module, Door Jamb Switch, Door Lock Switch-Export Only:
