Home >> Chevy Truck >> 2002 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> ABS Schematics (Domestic) (Wheel Speed Sensors, VSS and Brake Pressure Switch)

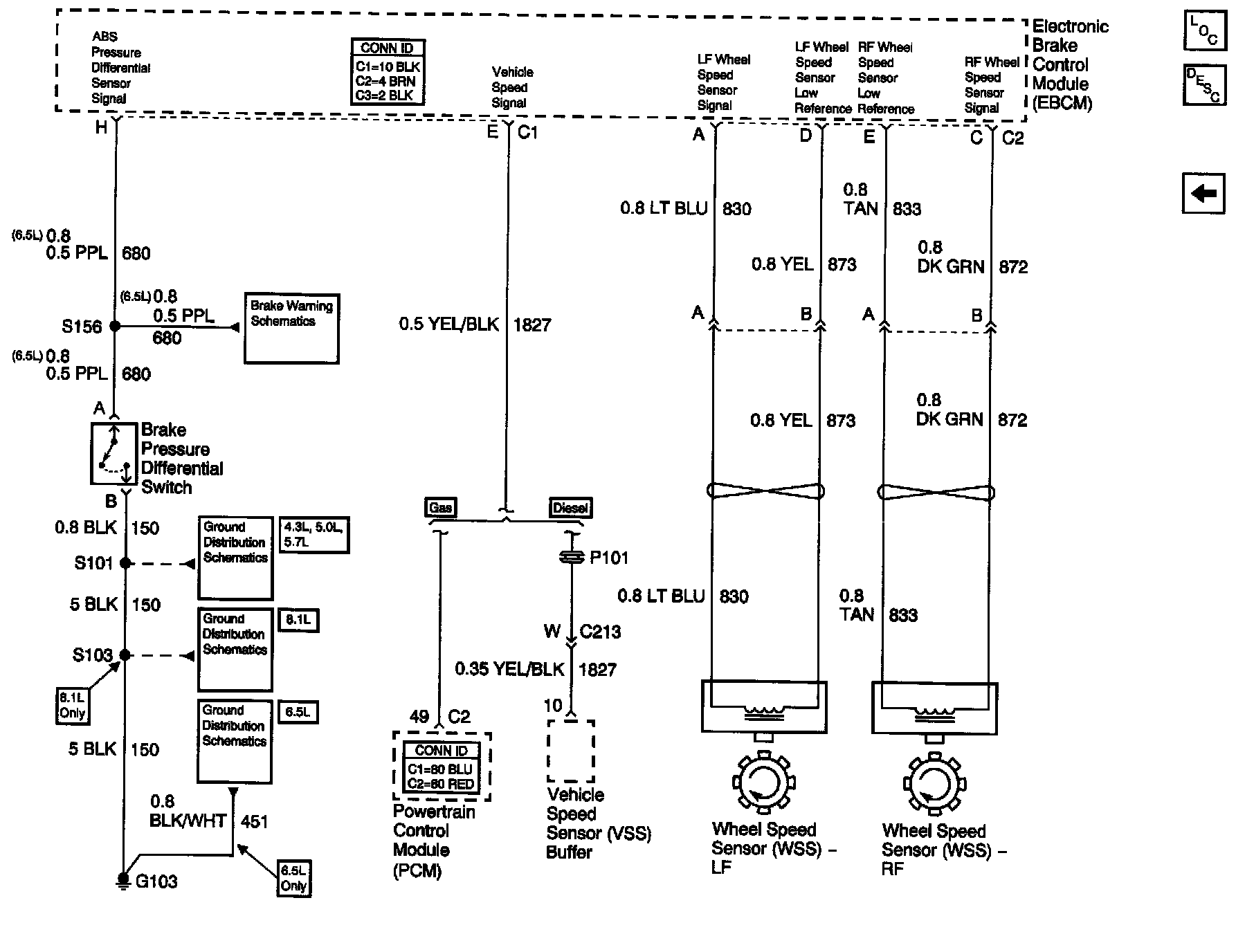

ABS Schematics (Domestic) (Wheel Speed Sensors, VSS and Brake Pressure Switch)
