Home >> Chevy Truck >> 2002 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC

Control Module HVAC

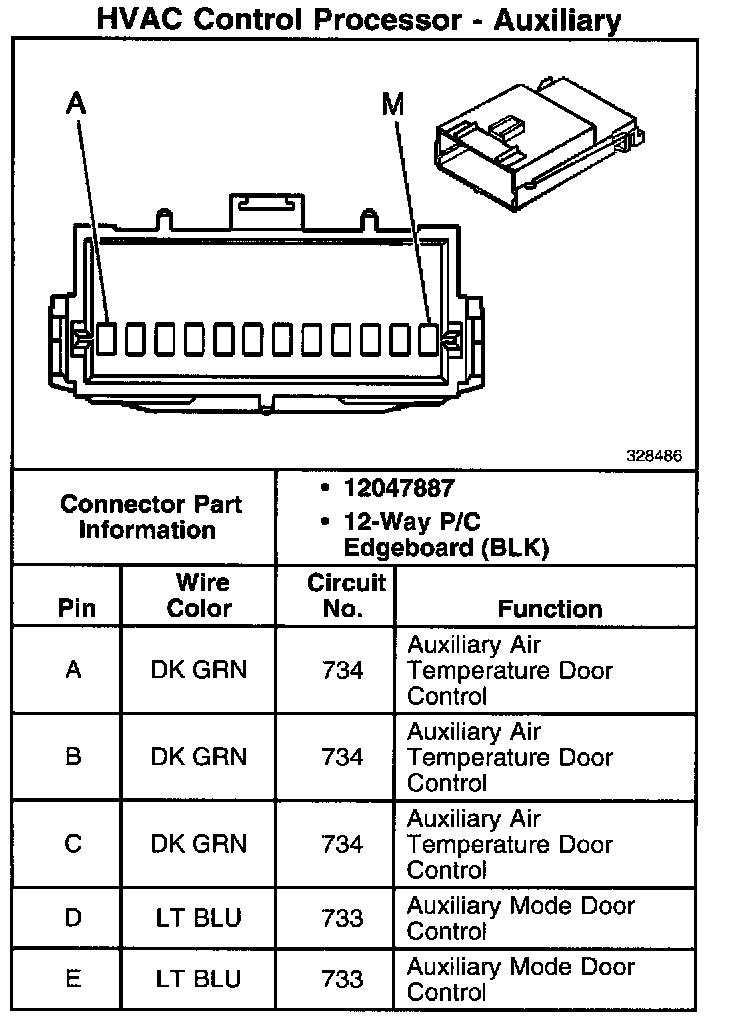

HVAC Control Processor - Auxiliary Part 1 - HVAC Systems - Manual:

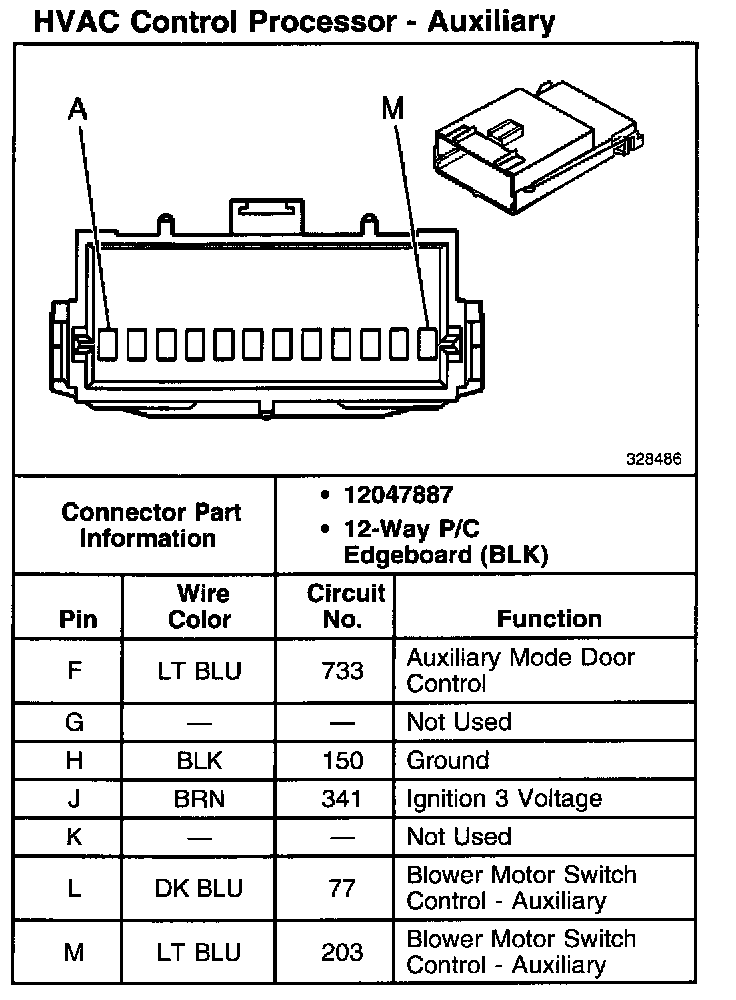

HVAC Control Processor - Auxiliary Part 2 - HVAC Systems - Manual:
