HVAC Control Assembly - Auxiliary

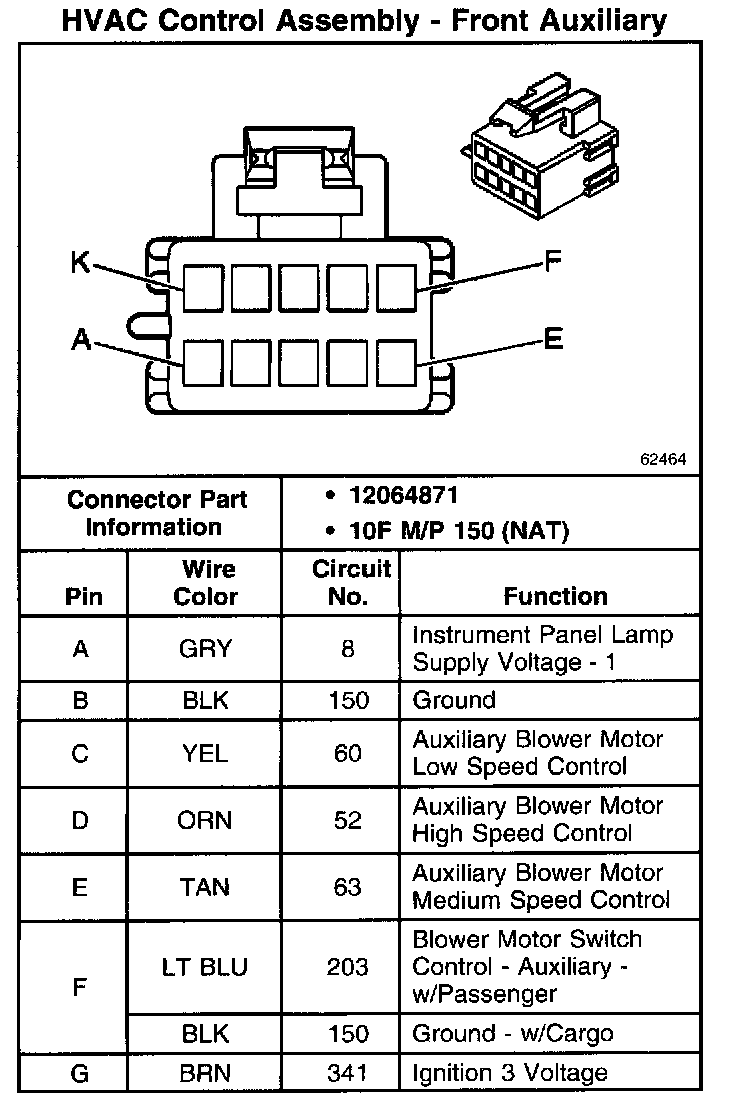

HVAC Control Assembly - Front Auxiliary Part 1 - HVAC Systems - Manual:

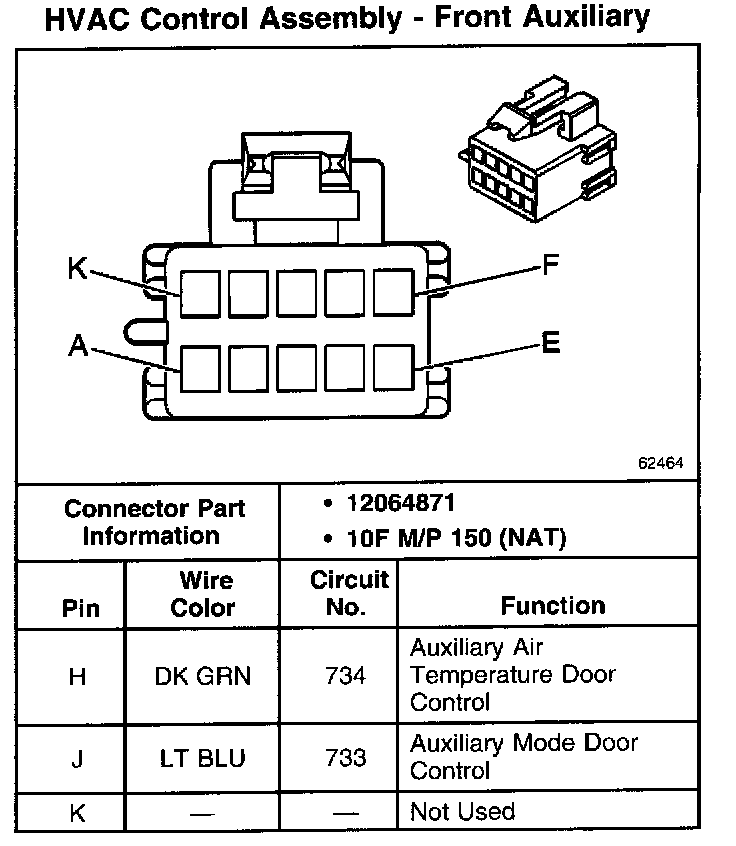

HVAC Control Assembly - Front Auxiliary Part 2 - HVAC Systems - Manual:

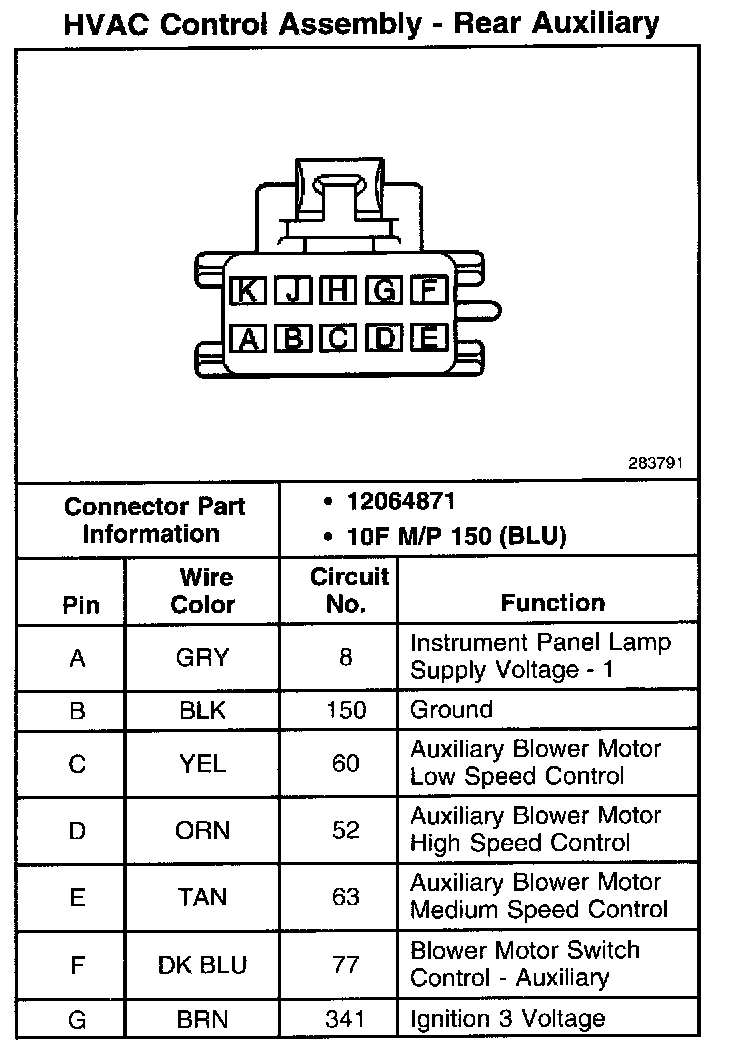

HVAC Control Assembly - Rear Auxiliary Part 1 - HVAC Systems - Manual:

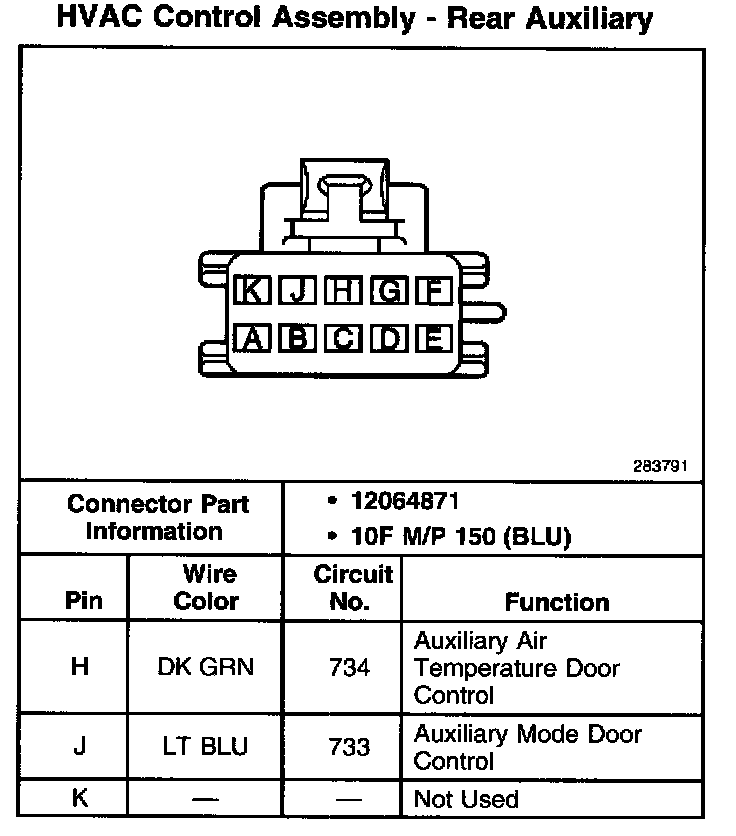

HVAC Control Assembly - Rear Auxiliary Part 2 - HVAC Systems - Manual:
