Power Door Lock Actuator: Diagrams

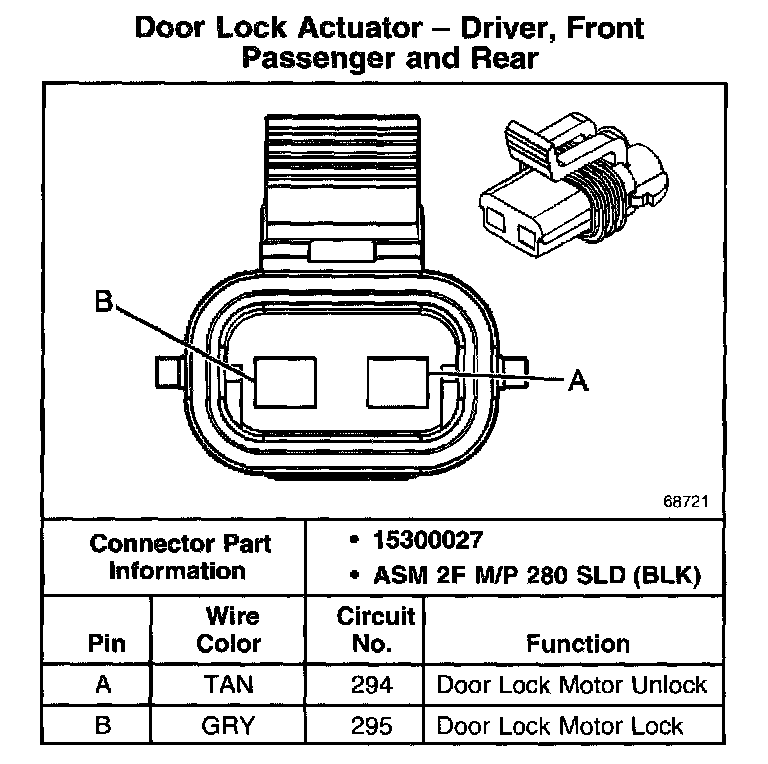

Door Lock Actuator - Driver, Front Passenger And Rear:

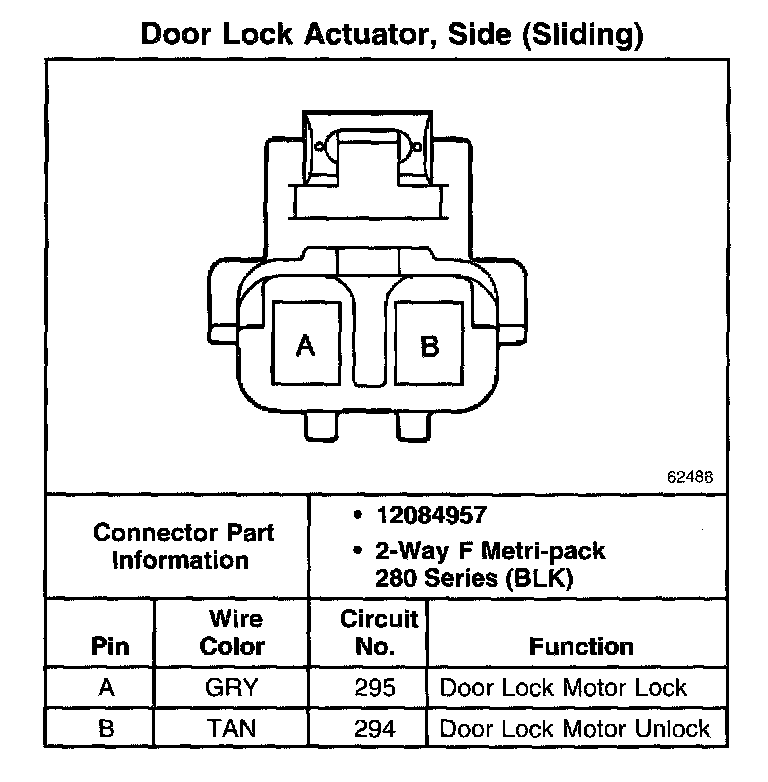

Door Lock Actuator, Side (Sliding):
