Engine

Disassembled Views (M/L Van and G Van)

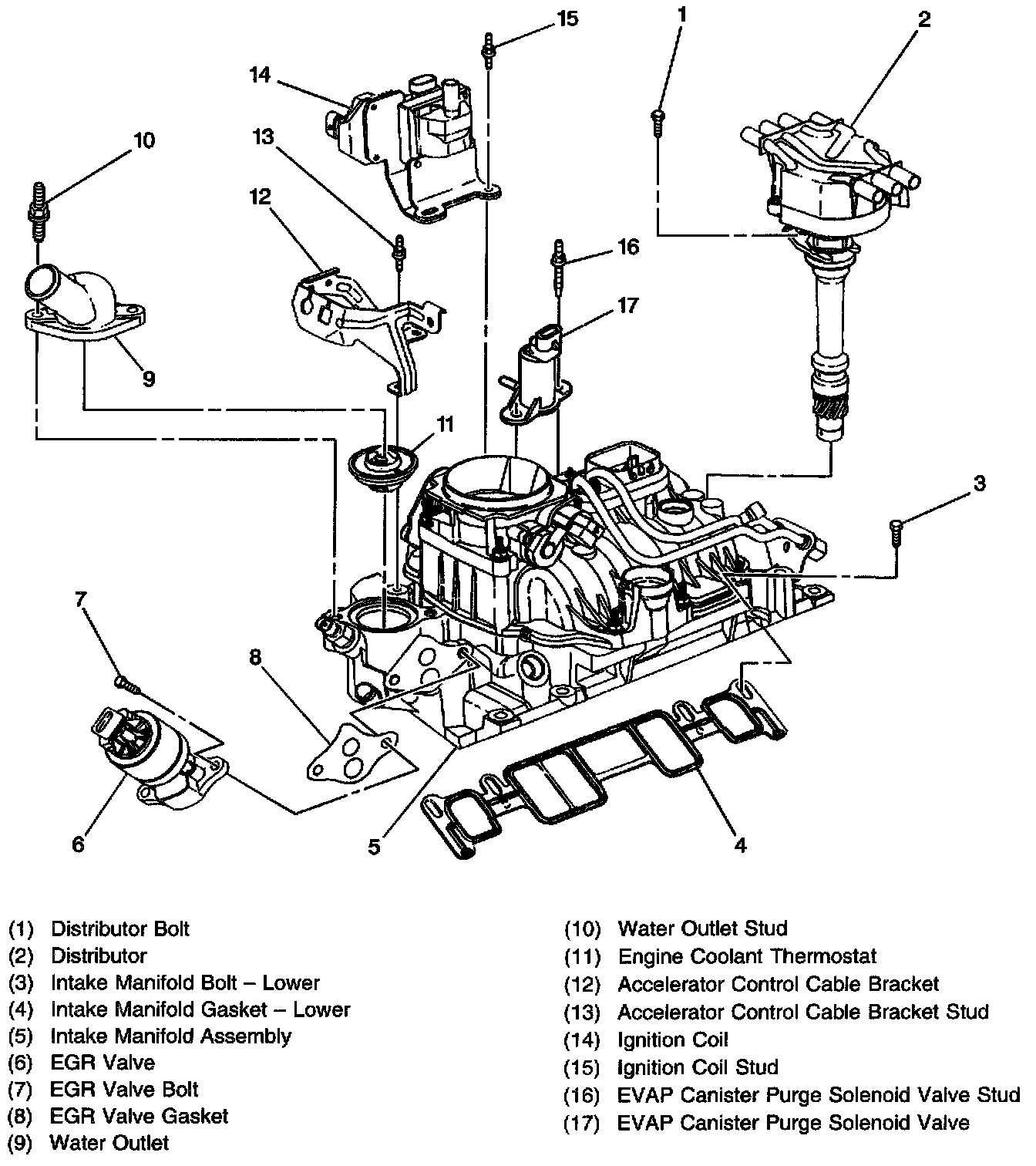

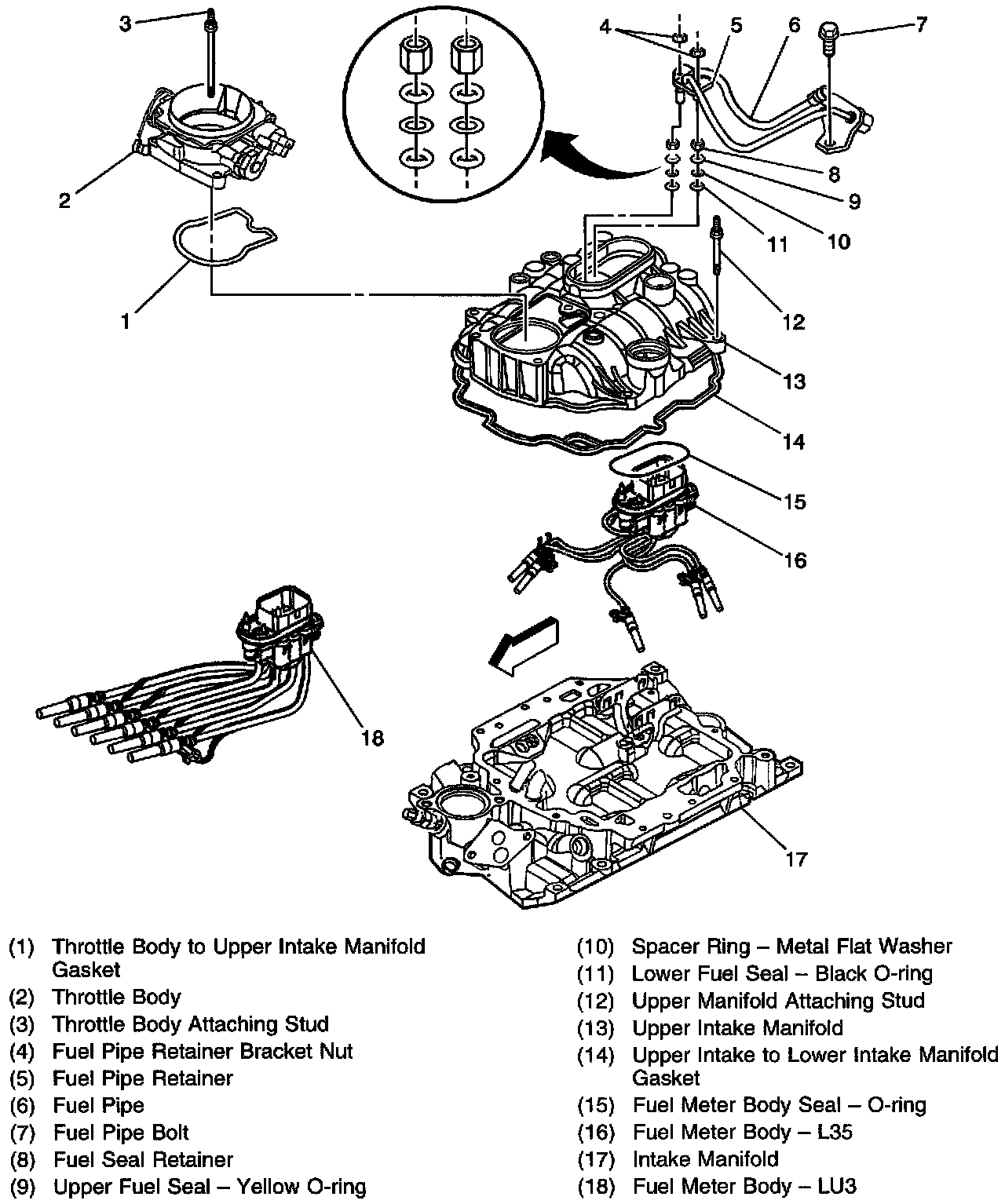

Upper and Lower Intake Manifold View

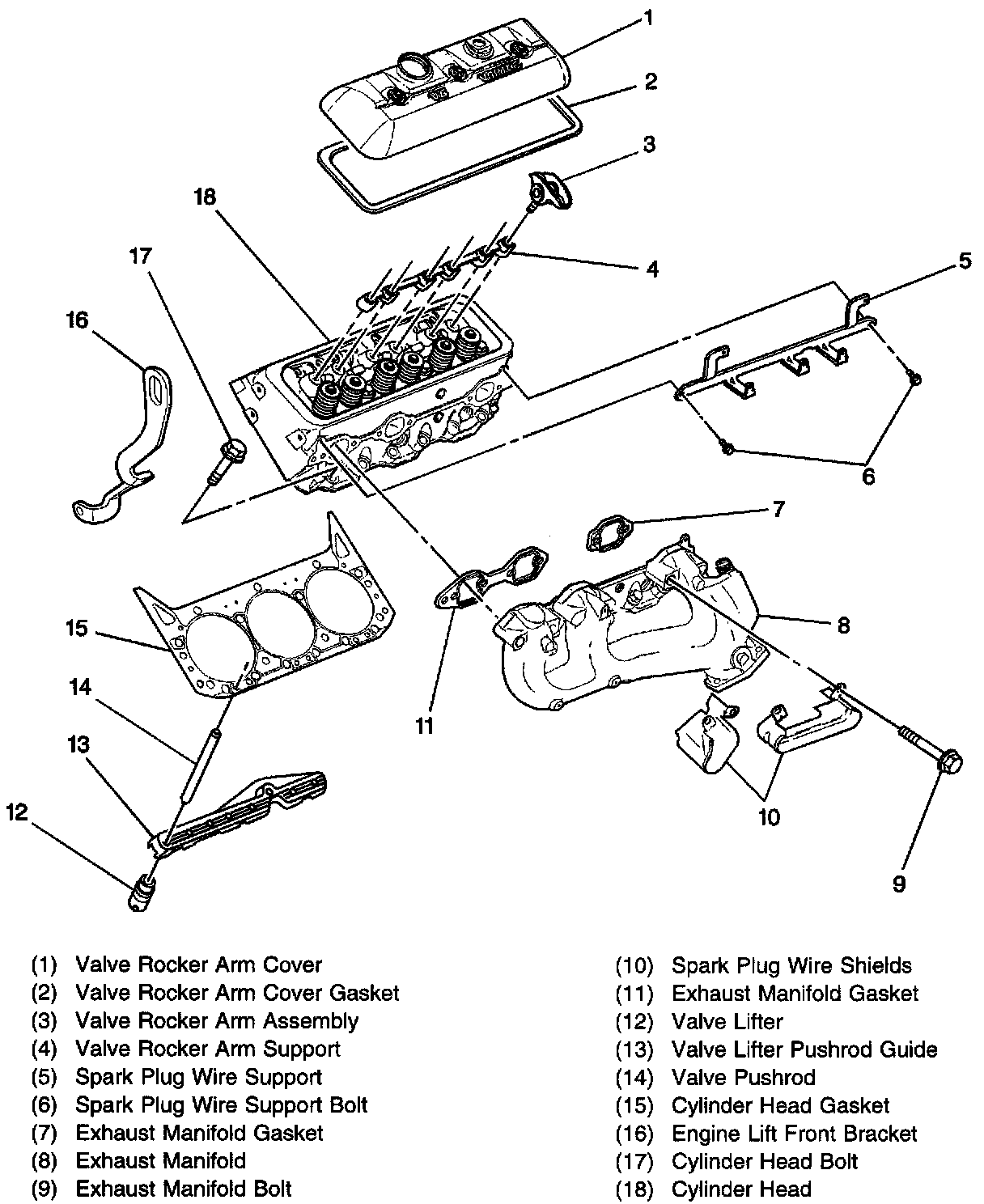

Upper Engine View 1





Upper Engine View 2

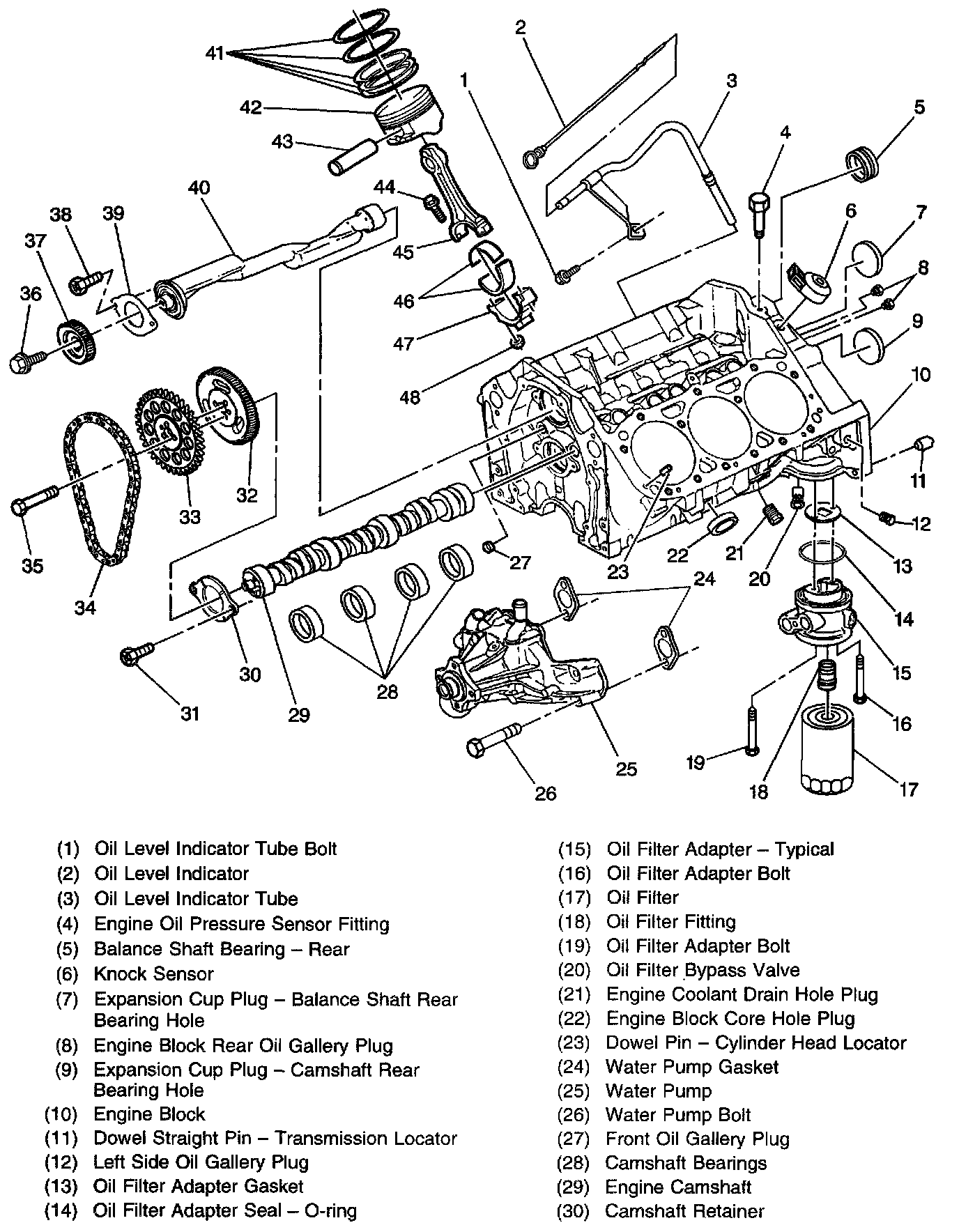

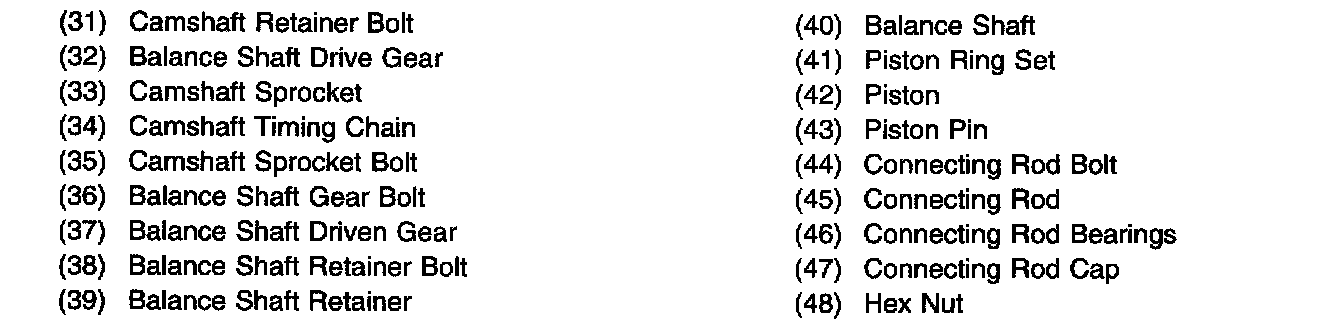

Lower Engine View 1

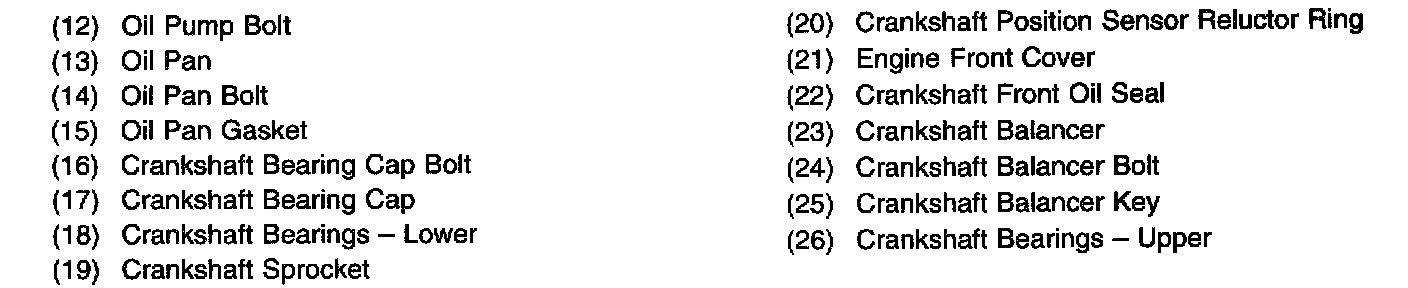

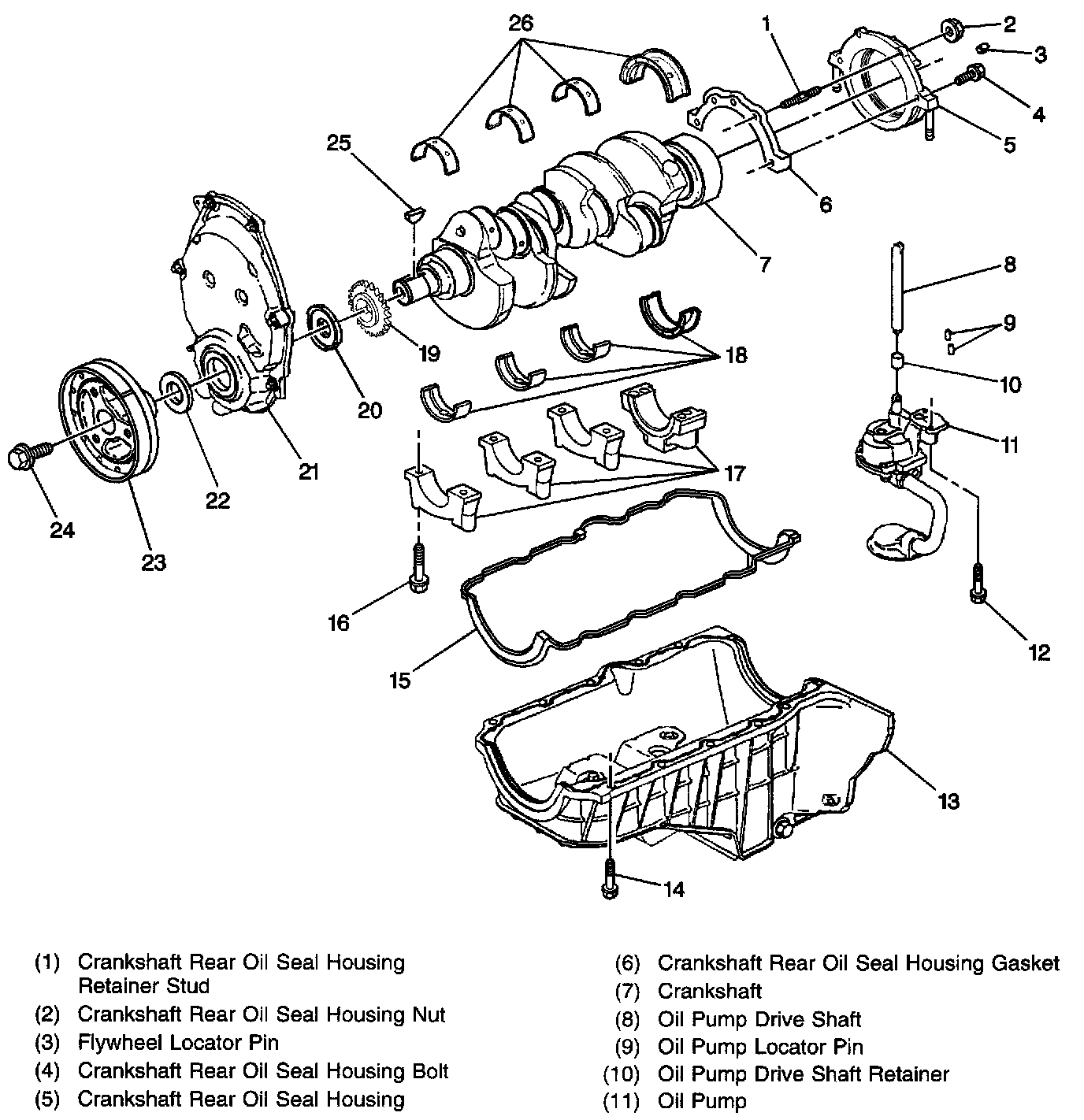

Lower Engine View 2
