On-Vehicle Service

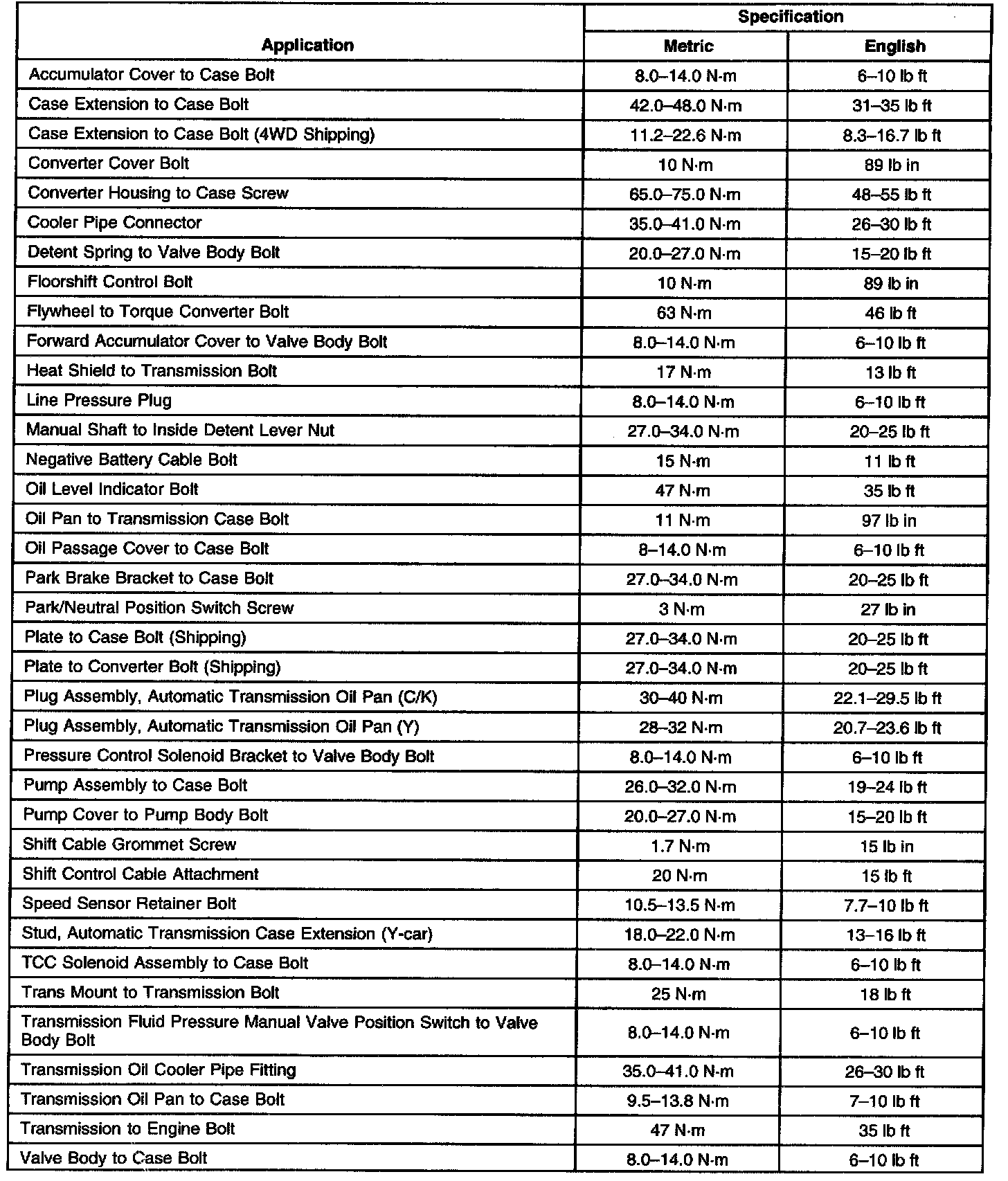

Fastener Tightening Specifications

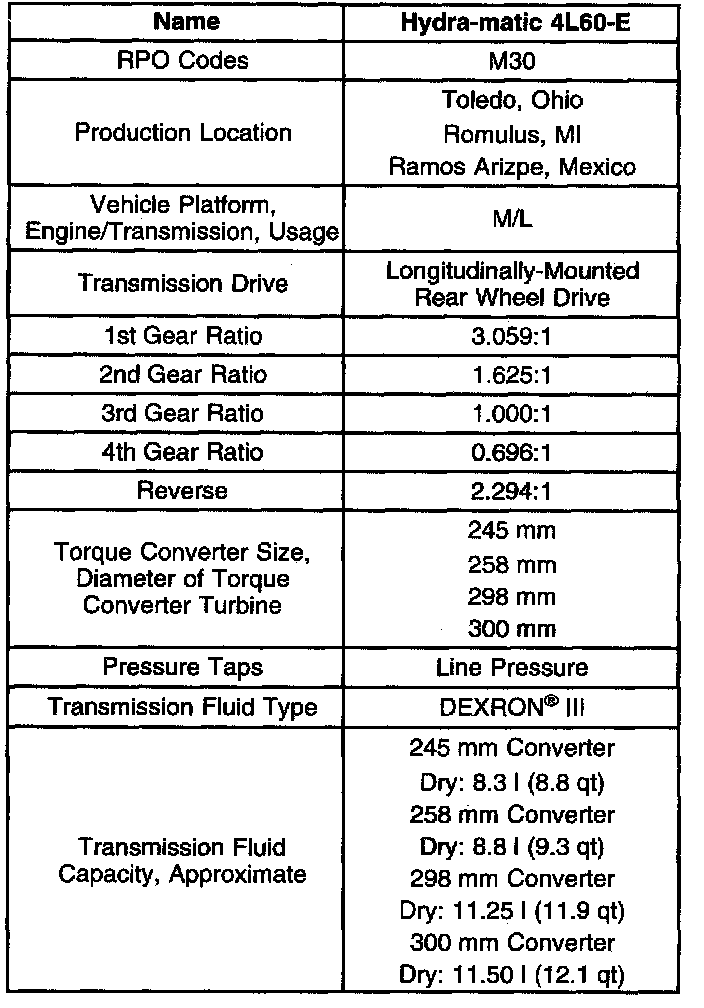

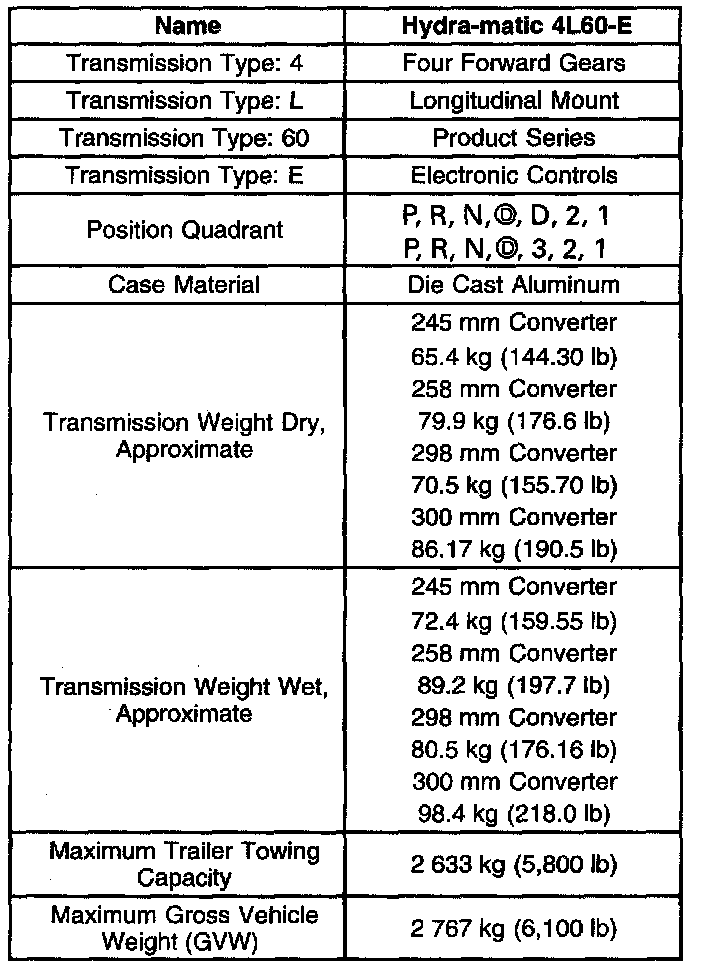

Transmission General Specifications

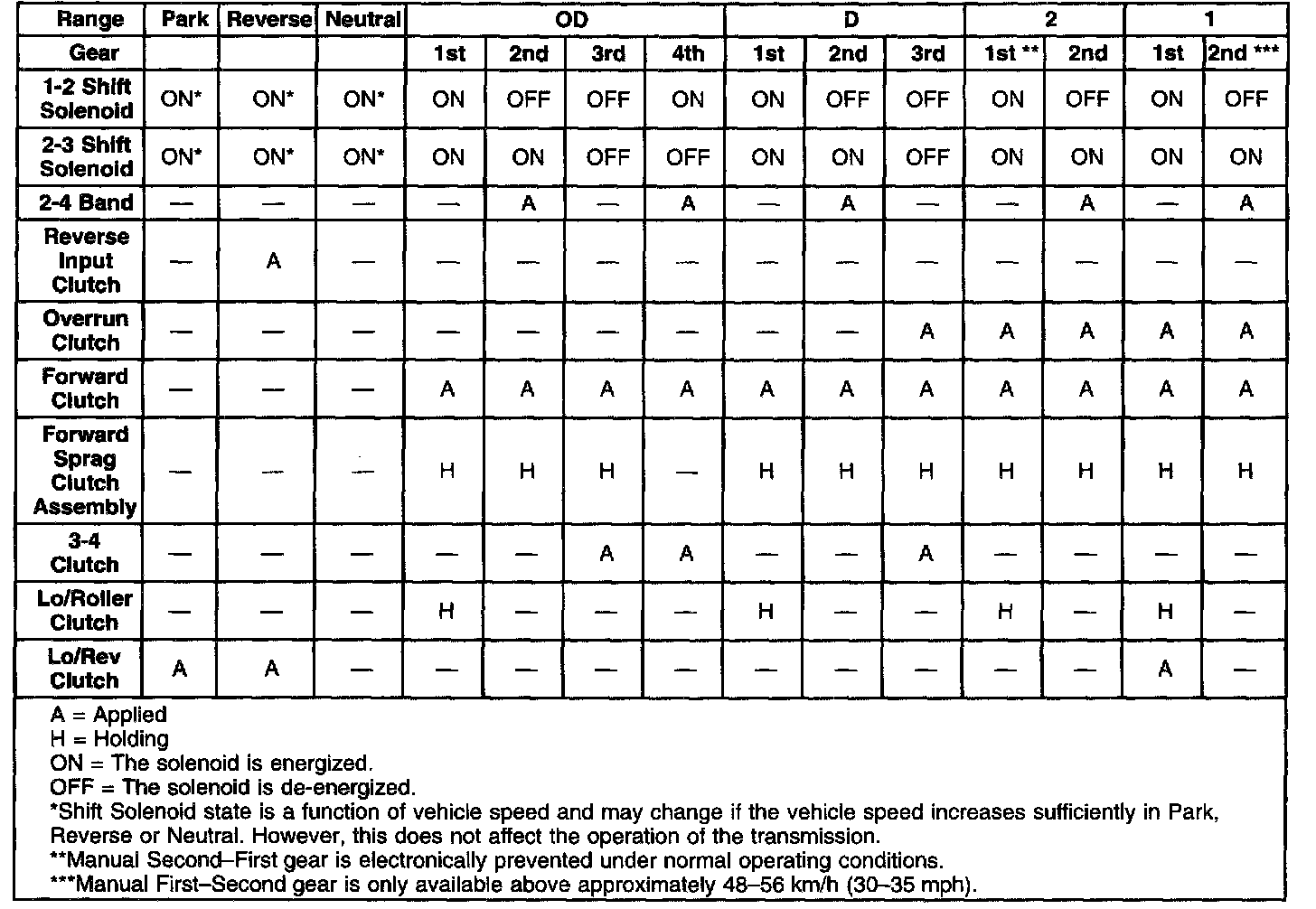

Range Reference

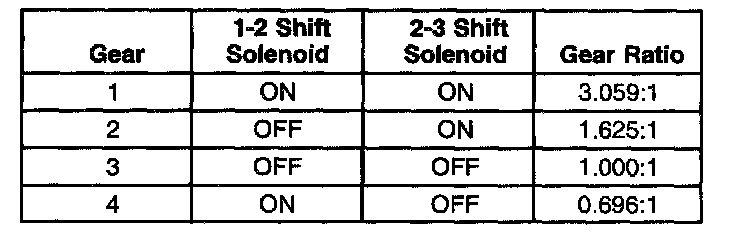

Shift Solenoid Valve State and Gear Ratio

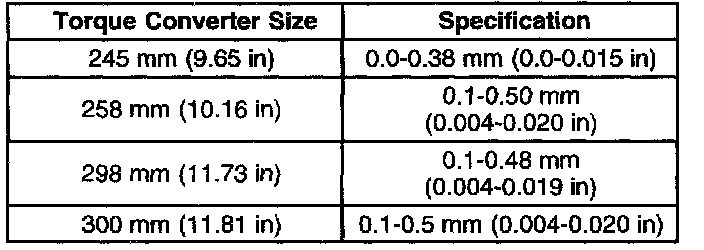

Torque Converter End Play Specifications

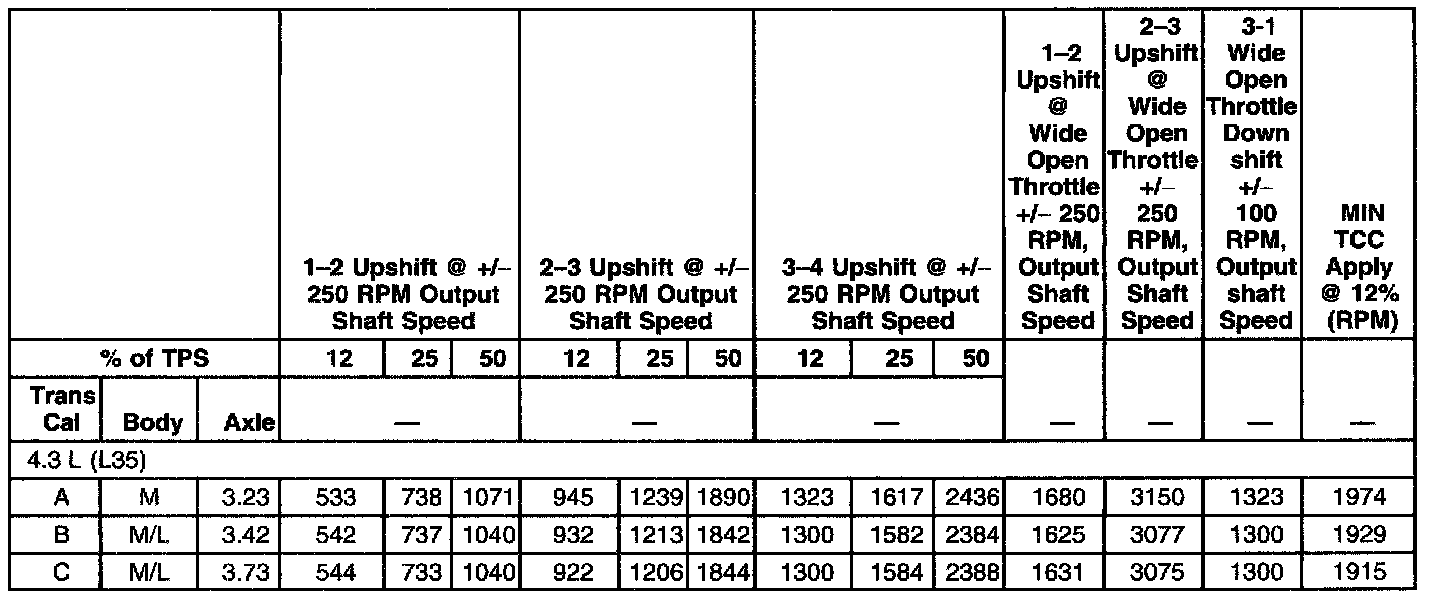

Shift Speed
