Fuse Block I/P (Front View)
Fuse Block I/P (Front View)

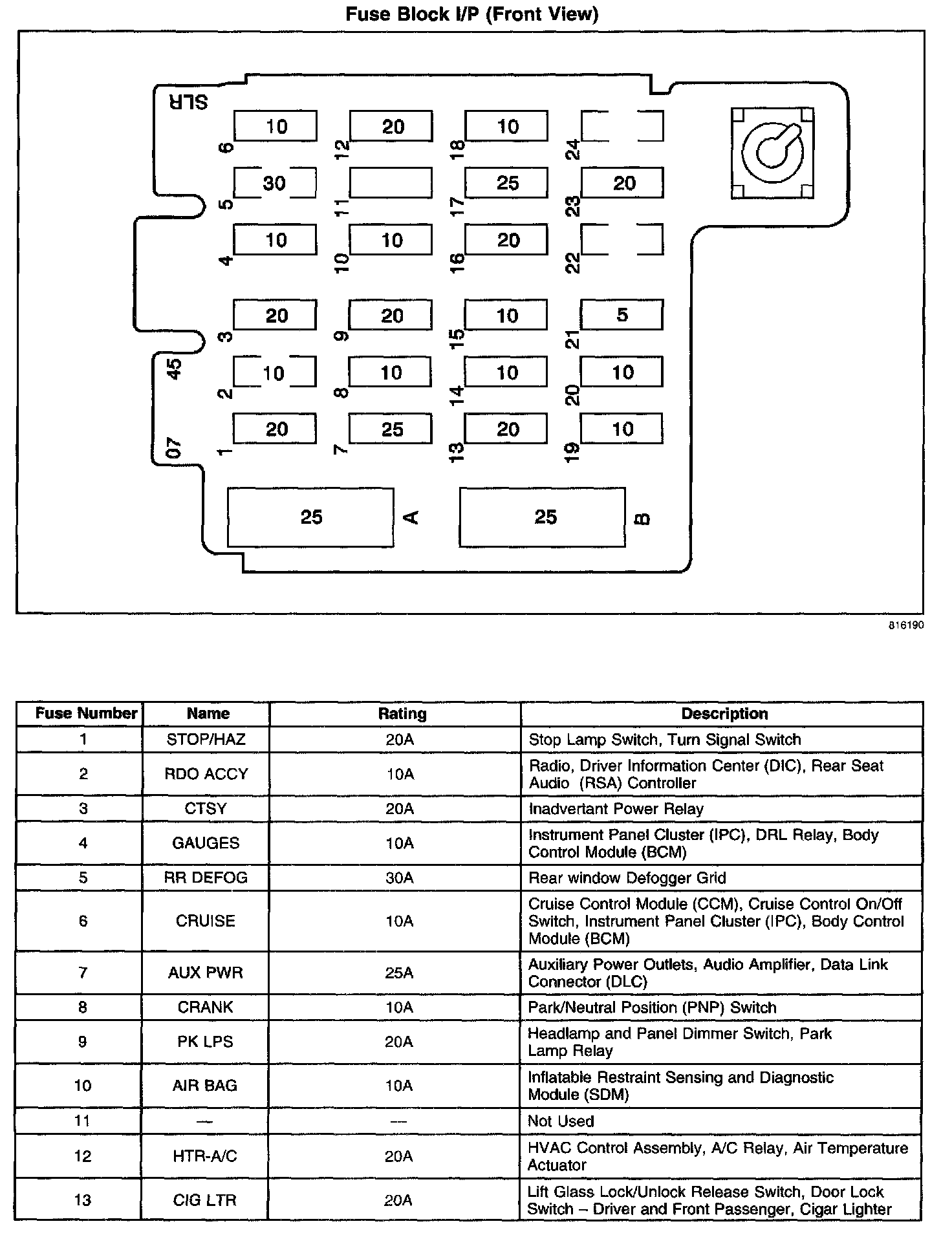

Fuse Block I/P (Front View) Part 1:
Fuse Block I/P (Front View) Part 2:
