Blower Motor Resistor Assembly Replacement (C60)
REMOVAL PROCEDURENOTE: Do not allow the metal coils of the blower resistor to become grounded to any metal surface. This may result in internal circuitry damage.
1. Remove the A/C control relay bracket with the relay.
2. Remove the blower resistor harness.
3. Remove the stud from the IP, if necessary.
4. Remove the blower motor resistor mounting screw.

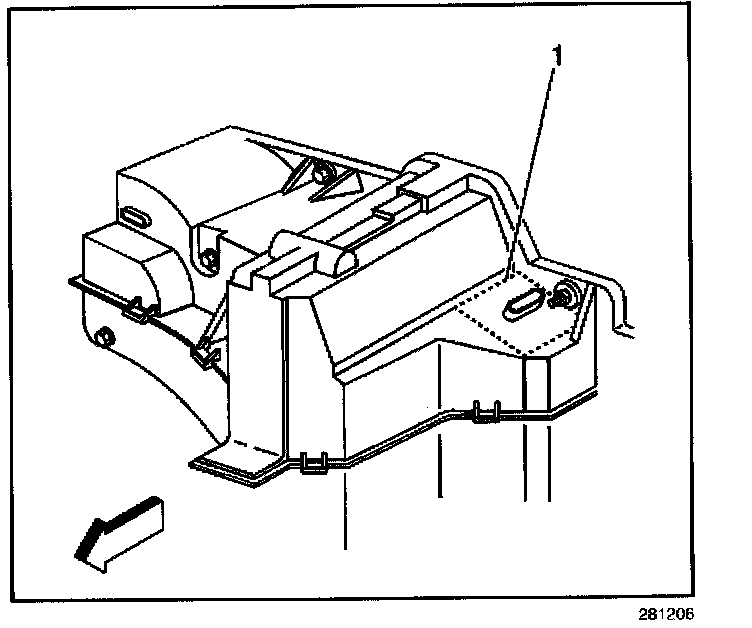

5. Cut the access cover (1) from the case.
Cut all four sides of the cover in order to remove the three attaching screws. Use a sharp utility knife in order to cut the case. Make the cuts straight and clean. The access cover must be reinstalled and is visible to the customer.
6. Remove the blower motor resistor assembly.
INSTALLATION PROCEDURE
1. Install the blower motor resistor assembly.
NOTE: Refer to Fastener Notice in Service Precautions.
2. Install the blower motor resistor mounting screw.
Tighten
Tighten the screw to 1.9 N.m (17 lb in).
3. Apply a bead of black weather-strip adhesive over the cut-line areas (1).
4. Allow the adhesive to set for 15 minutes or until the adhesive skins over.
5. Install the stud to the dash panel, if necessary.
6. Install the resistor harness.
7. Install the A/C relay bracket into the body.
