Sensor Controls: Heated Oxygen Sensors (With 4L80-E)
Sensor Controls: Heated Oxygen Sensors (With 4L80-E)

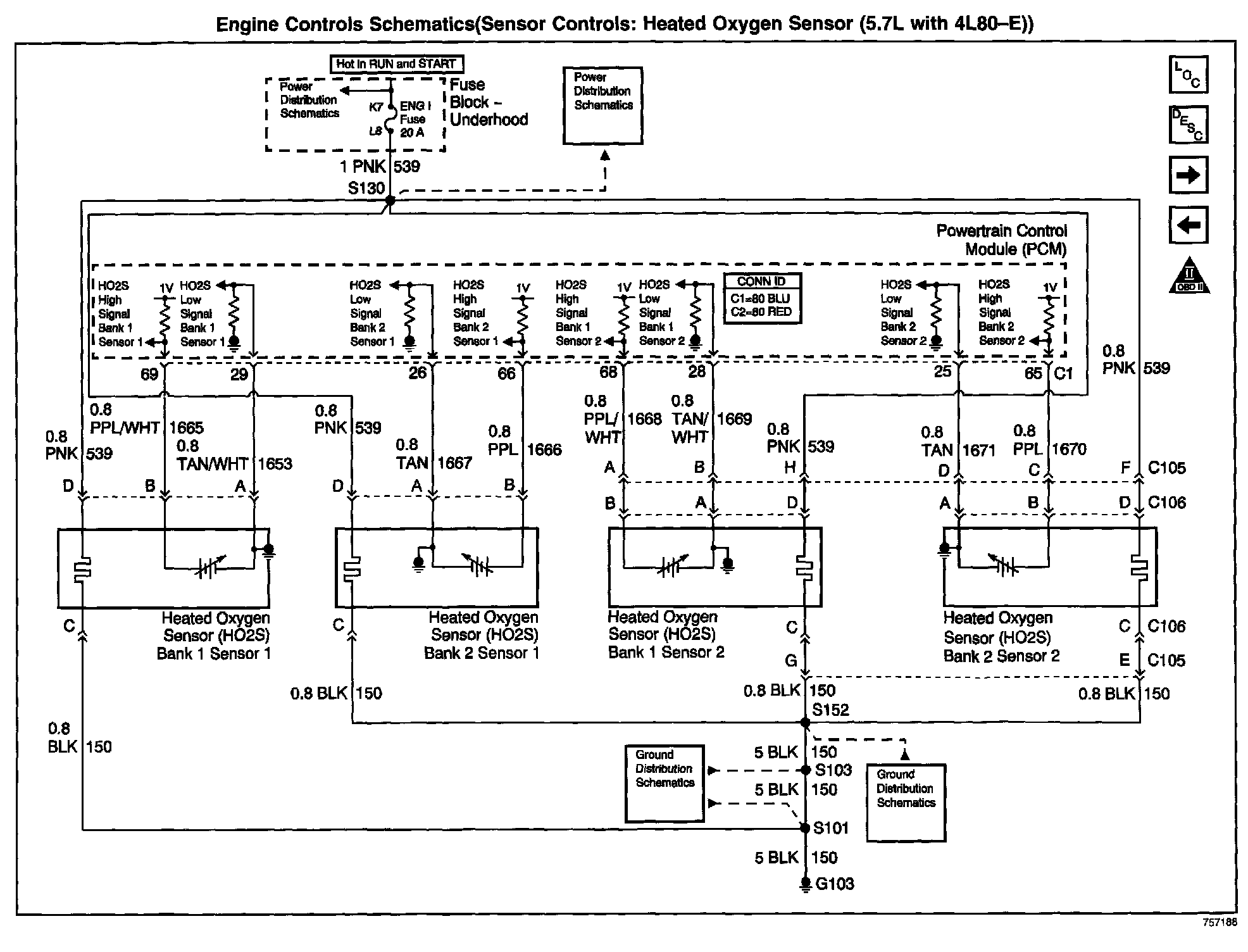

Sensor Controls: Heated Oxygen Sensor (5.7L With 4L80-E) - Standard Models (Non-Alternative Fuels):
