Underhood Fuse-Relay Center Connector
Underhood Fuse-Relay Center Connector

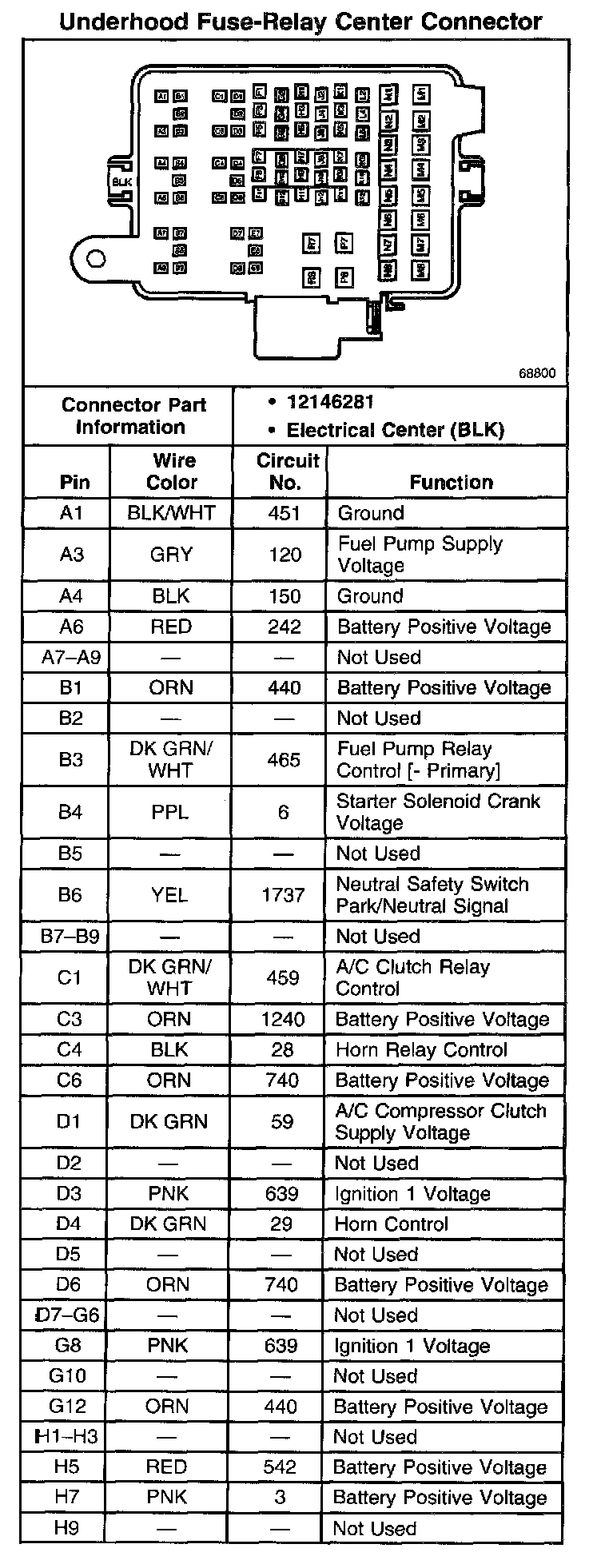

Underhood Fuse-Relay Center Connector (Part 1 Of 2):

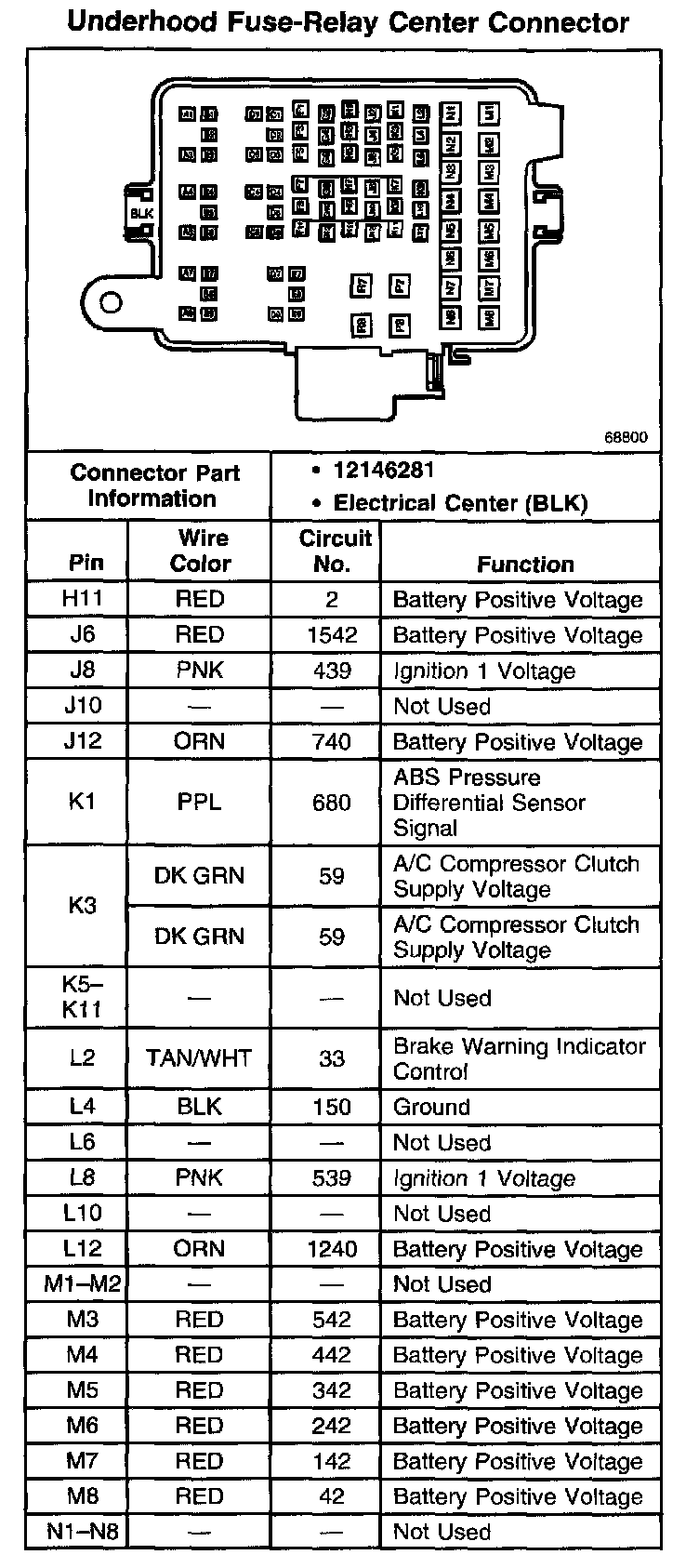

Underhood Fuse-Relay Center Connector (Part 2 Of 2):
