Home >> Chevy Truck >> 2001 >> Express 1/2 Ton Van V8-305 5.0L VIN M SFI >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Automatic Transmission/Transaxle >> 4L80-E/4L85-E Automatic Transmission >> Transmission Range Switch Logic

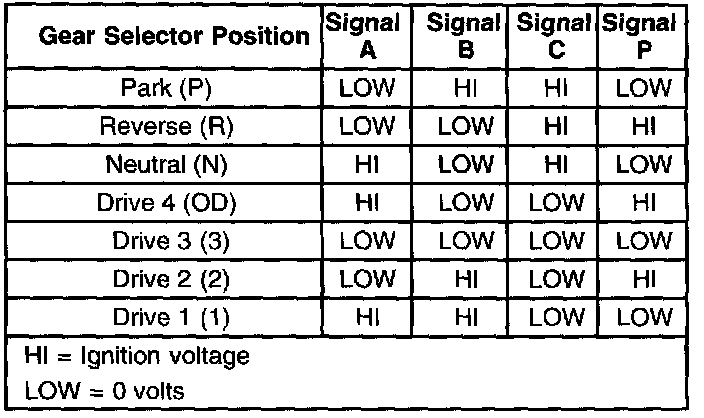

Transmission Range Switch Logic
