Air Temperature Sensor ( Ambient / Intake ): Locations

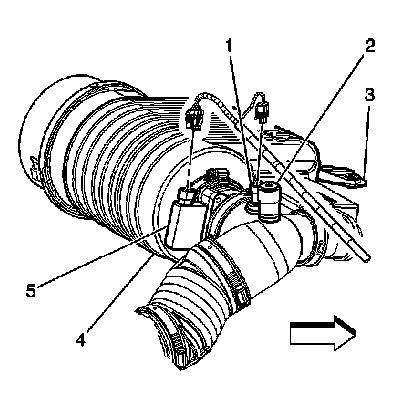

868162






Intake Air Temperature Sensor (IAT) is in the air induction tube.

1. Intake Air Temperature (IAT) Sensor
