Home >> Chevy Truck >> 2001 >> Express 1/2 Ton Van V8-305 5.0L VIN M SFI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Standard Model (Non-Alternative Fuels) >> Surges/Chuggles

Surges/Chuggles

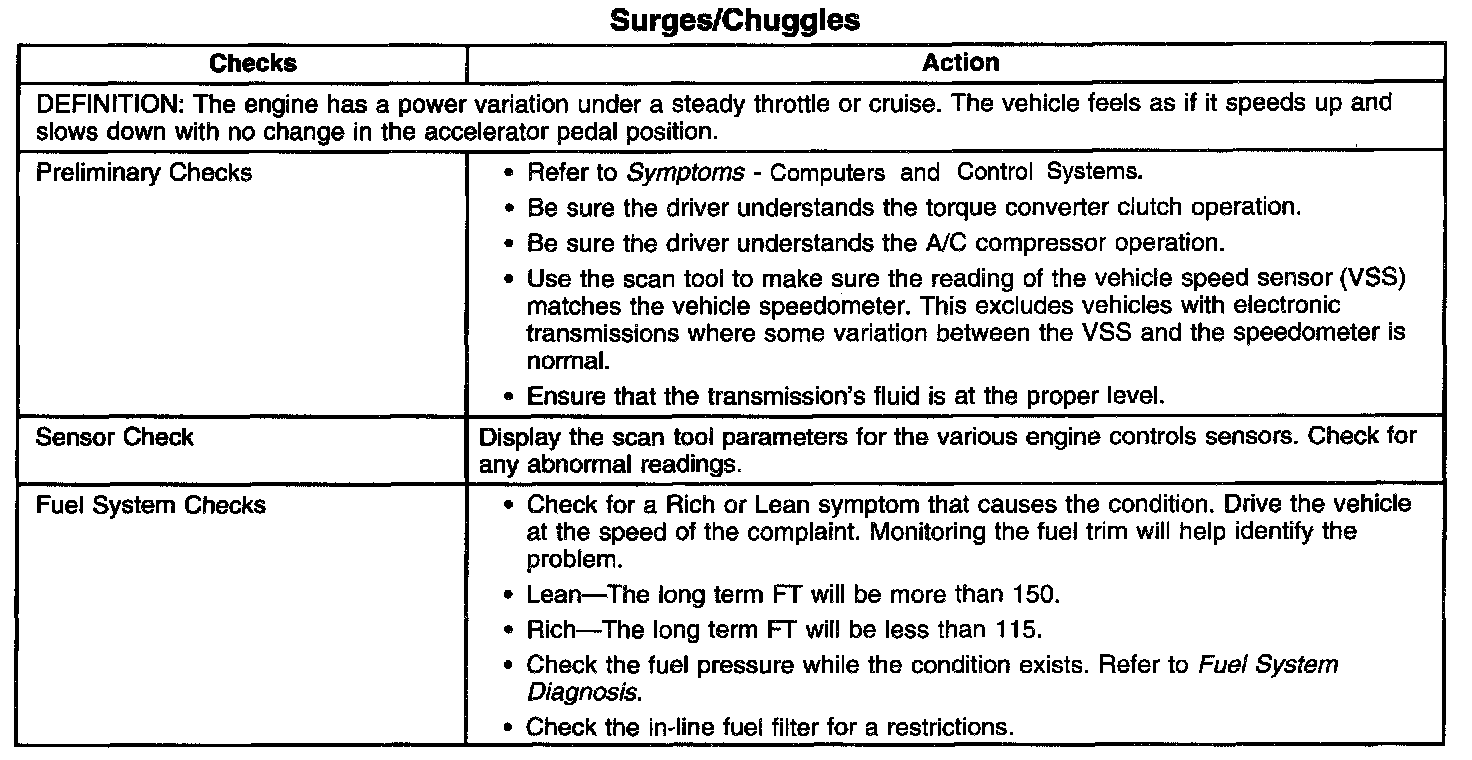

Diagnostic Chart Part 1:

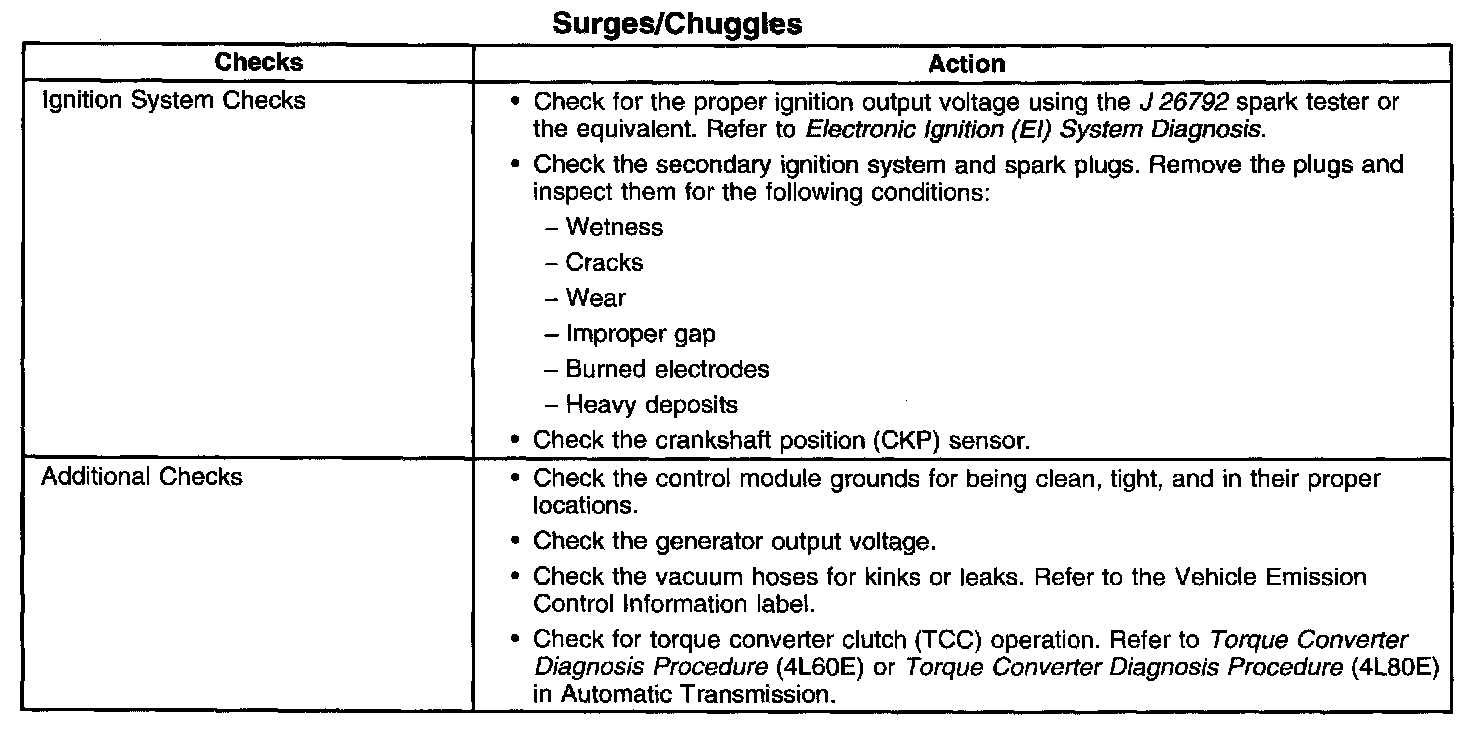

Diagnostic Chart Part 2:
