Underhood Fuse-Relay Center Connector (Export)
Underhood Fuse-Relay Center Connector (Export)

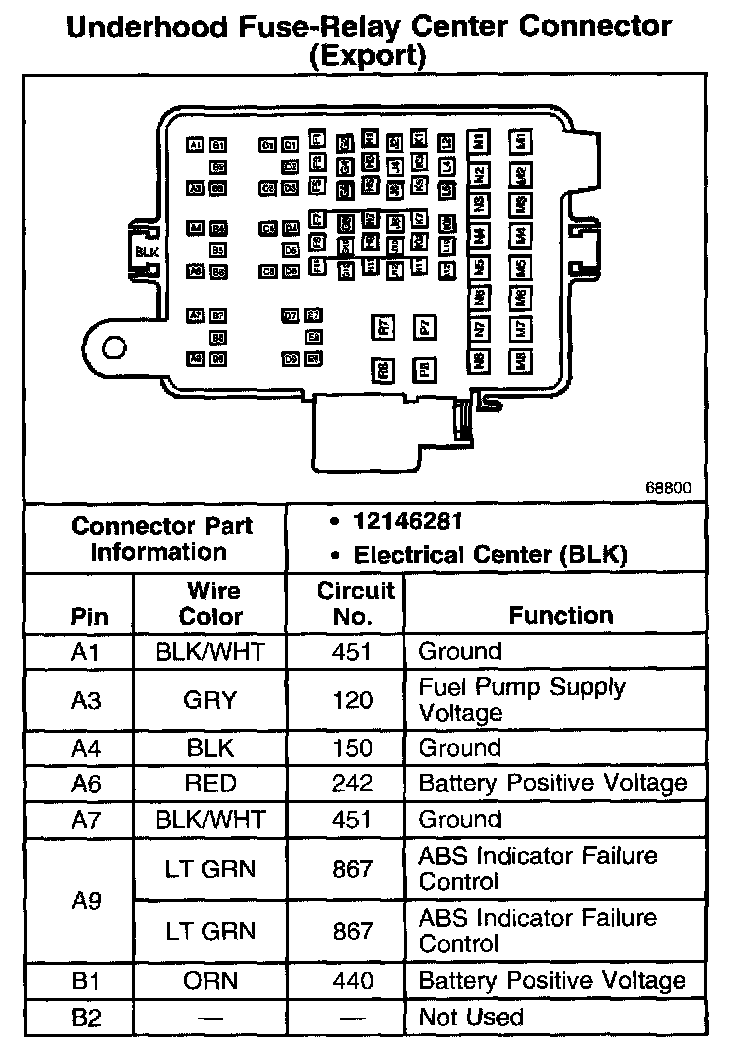

Underhood Fuse-Relay Center Connector (Export) (Part 1 Of 2):

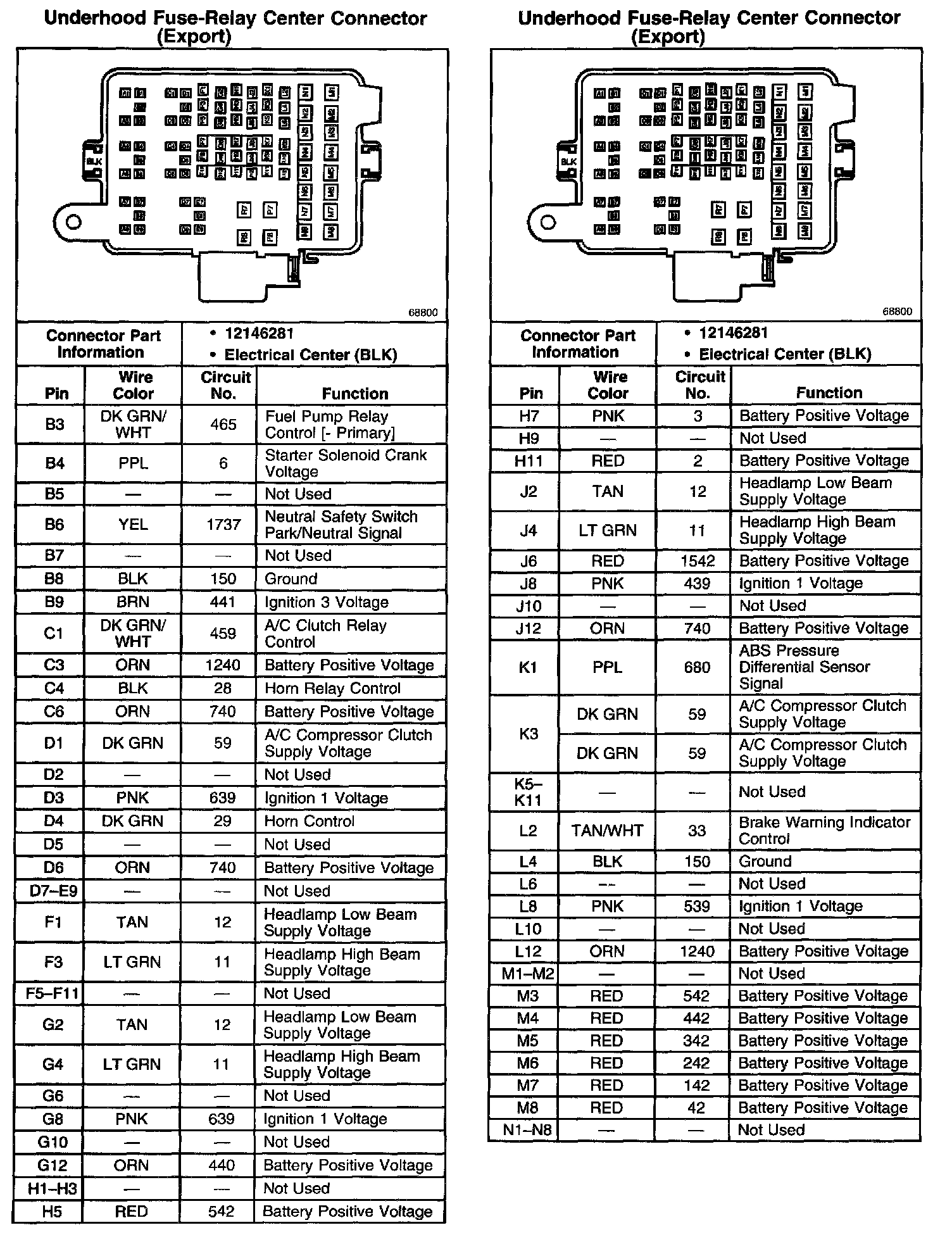

Underhood Fuse-Relay Center Connector (Export) (Part 2 Of 2):
