A/C Diagnostics - Pressure Zone D

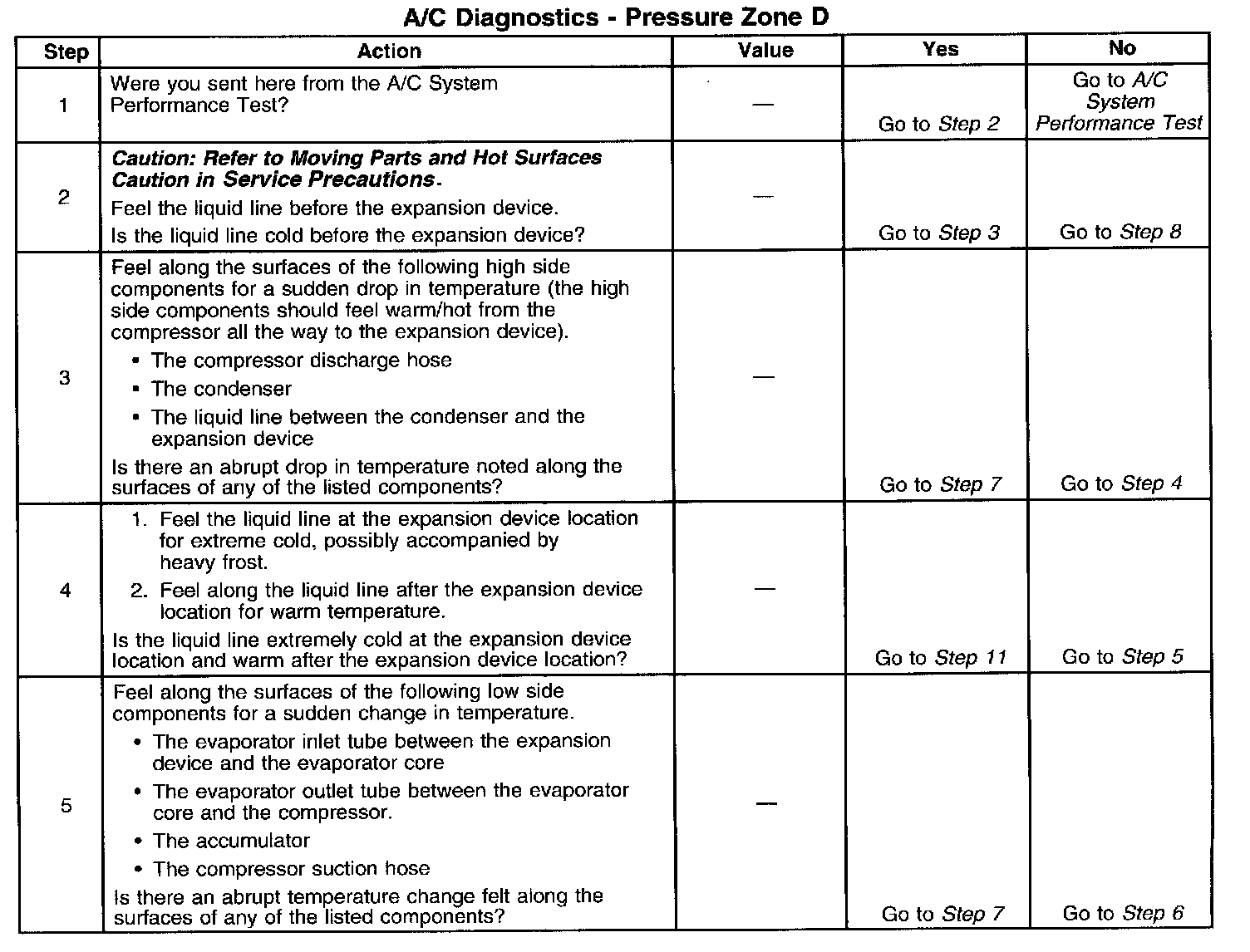

Steps 1-5:

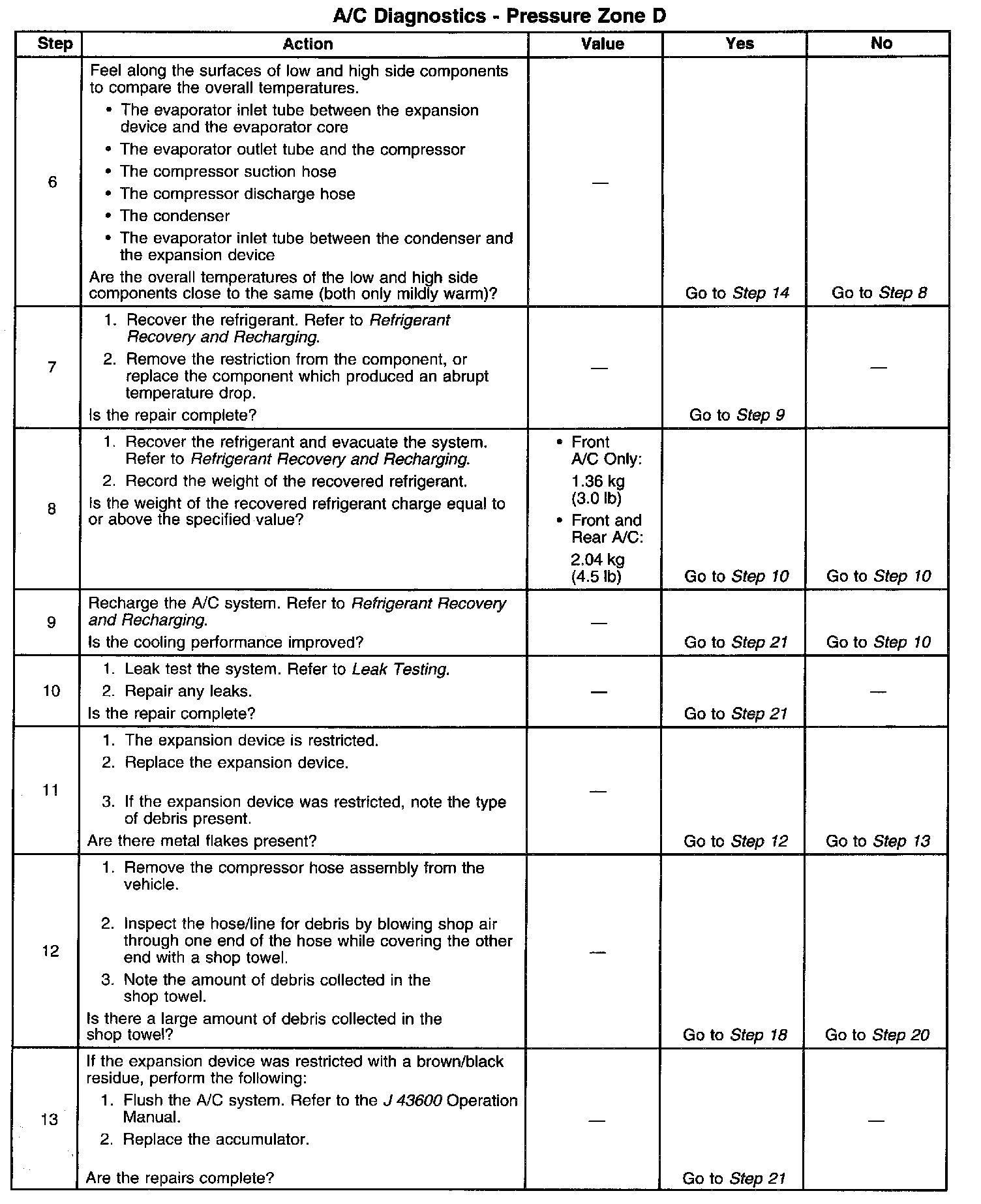

Steps 6-13:

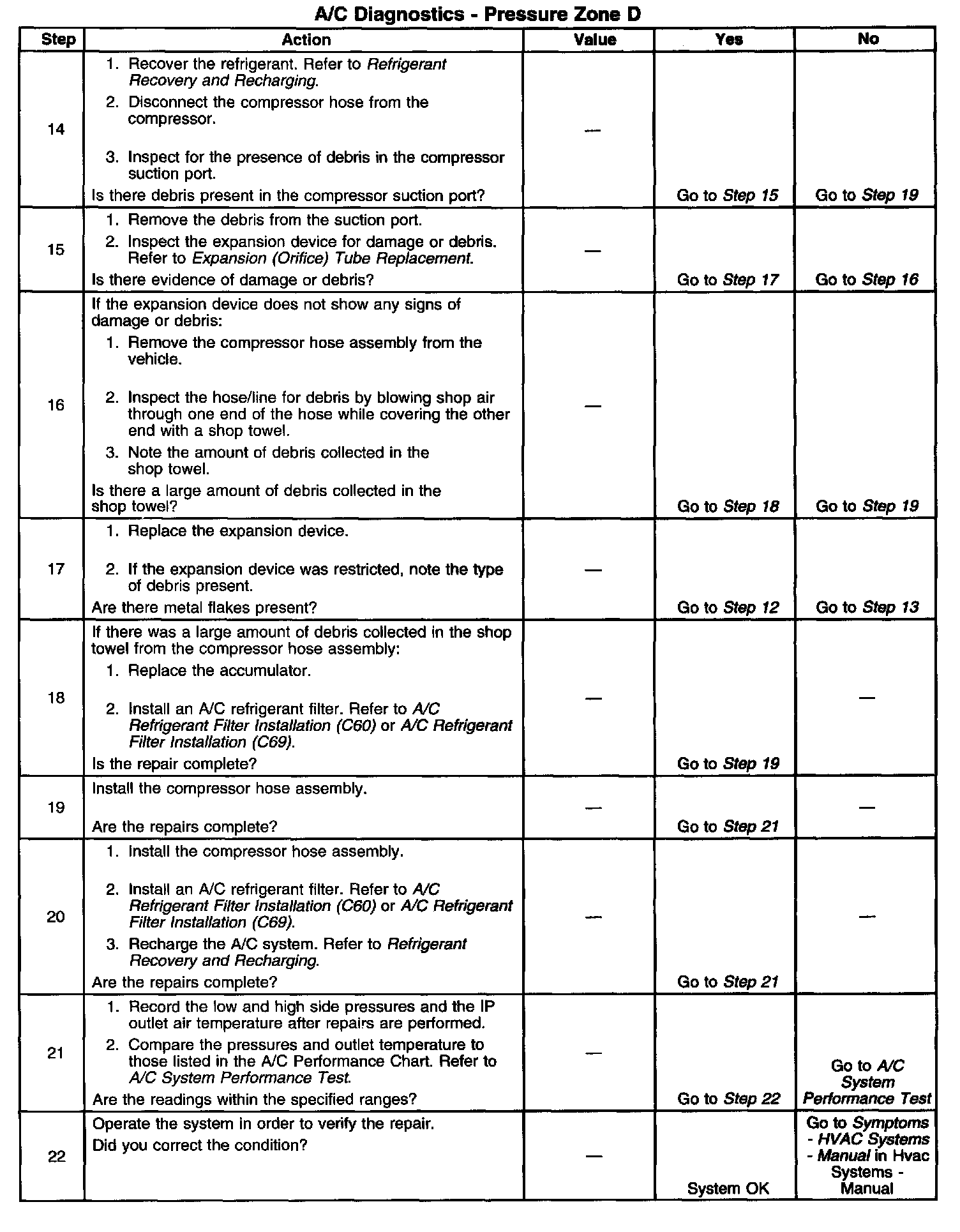

Steps 14-22:

For a description of the RPO Code(s) shown in this article/images refer to the RPO Code List found at Vehicle/Application ID RPO Codes
