Sensor Controls: Heated Oxygen Sensors (With 4L60-E)
Sensor Controls: Heated Oxygen Sensors (With 4L60-E)

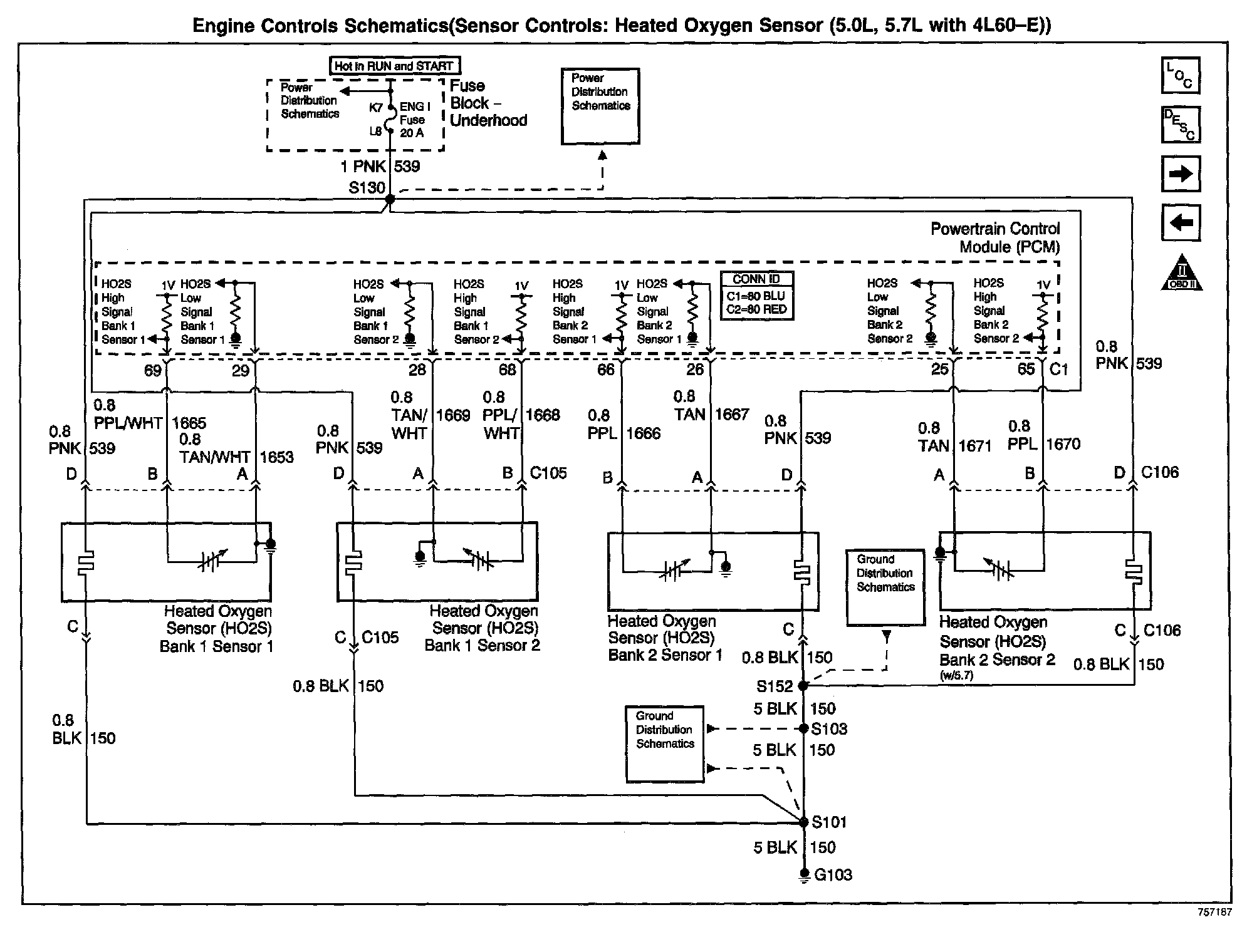

Sensor Controls: Heated Oxygen Sensor(5.0L, 5.7L With 4L60-E) - Standard Models (Non-Alternative Fuels):
