Home >> Chevy Truck >> 2001 >> Express 1/2 Ton Van V8-305 5.0L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Engine Controls >> Standard Models (Non-Alternative Fuels) >> Fuel Injector Controls

Fuel Injector Controls

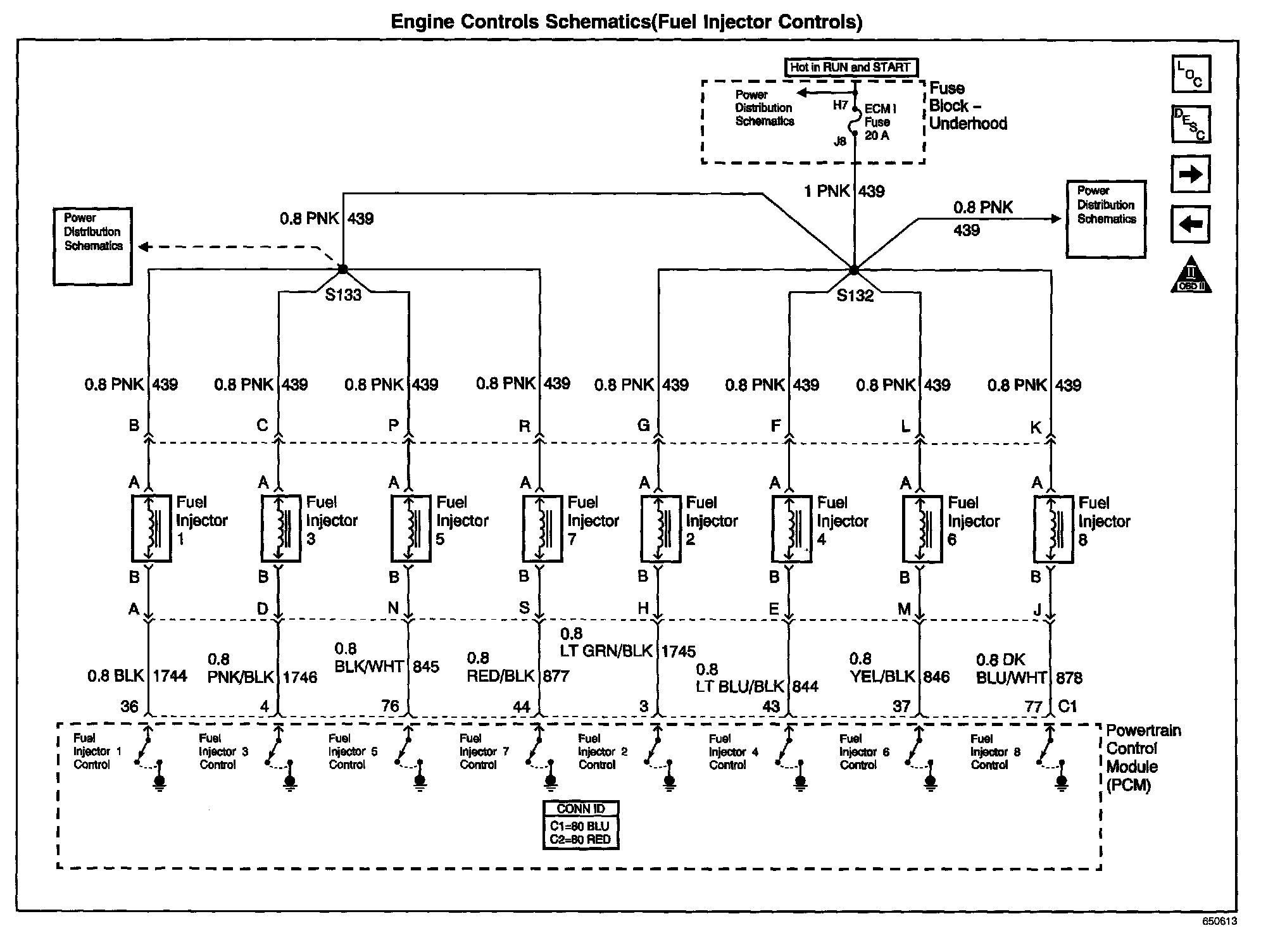

Engine Controls Schematics: Fuel Injector Controls - Standard Models (Non-Alternative Fuels):
