Engine Data Sensors, MAF, EVAP and VSS

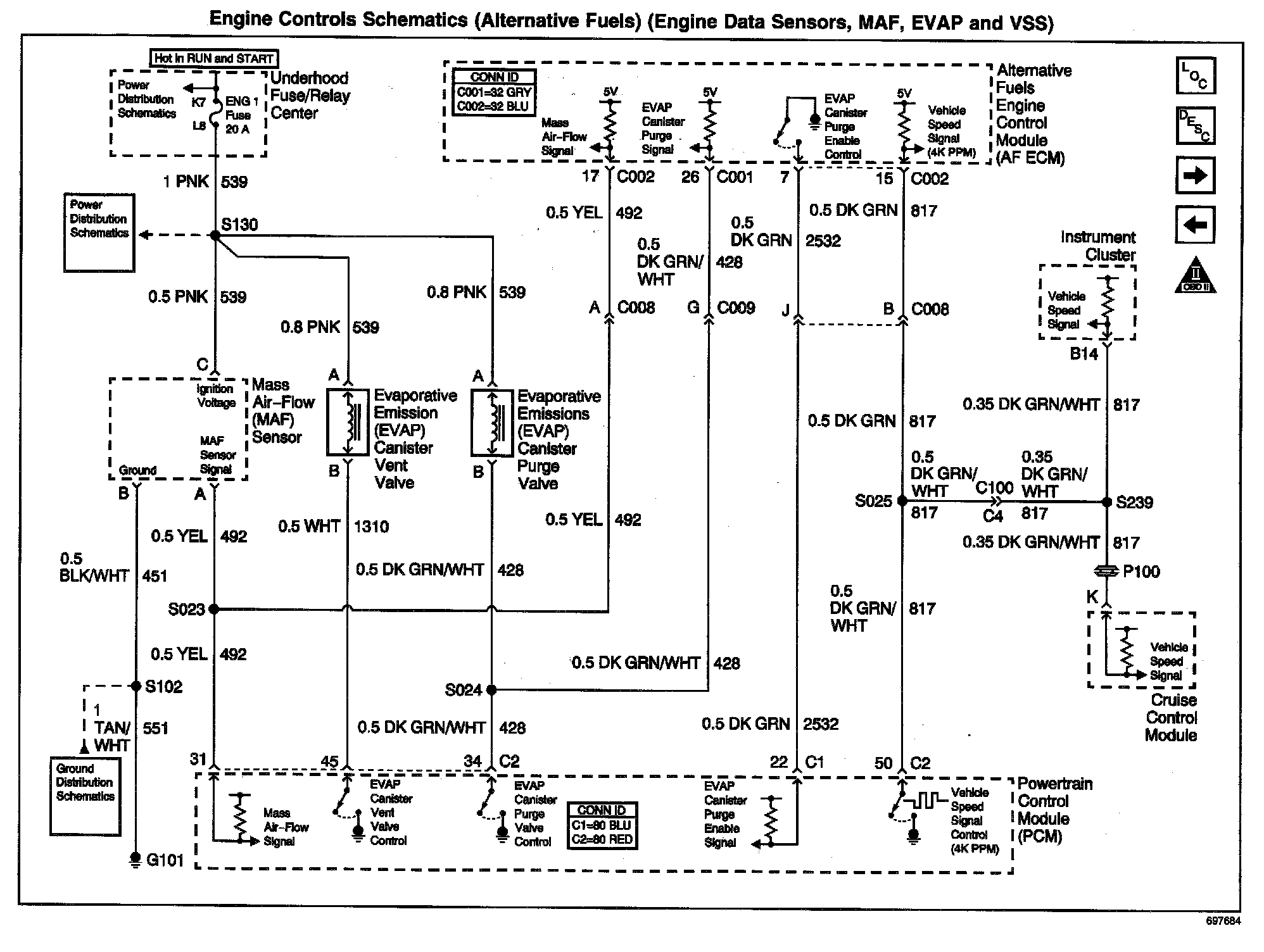

Engine Controls Schematics: Alternative Fuels (Engine Data Sensors, MAF, EVAP And VSS):
