Engine Data Sensors, HO2S

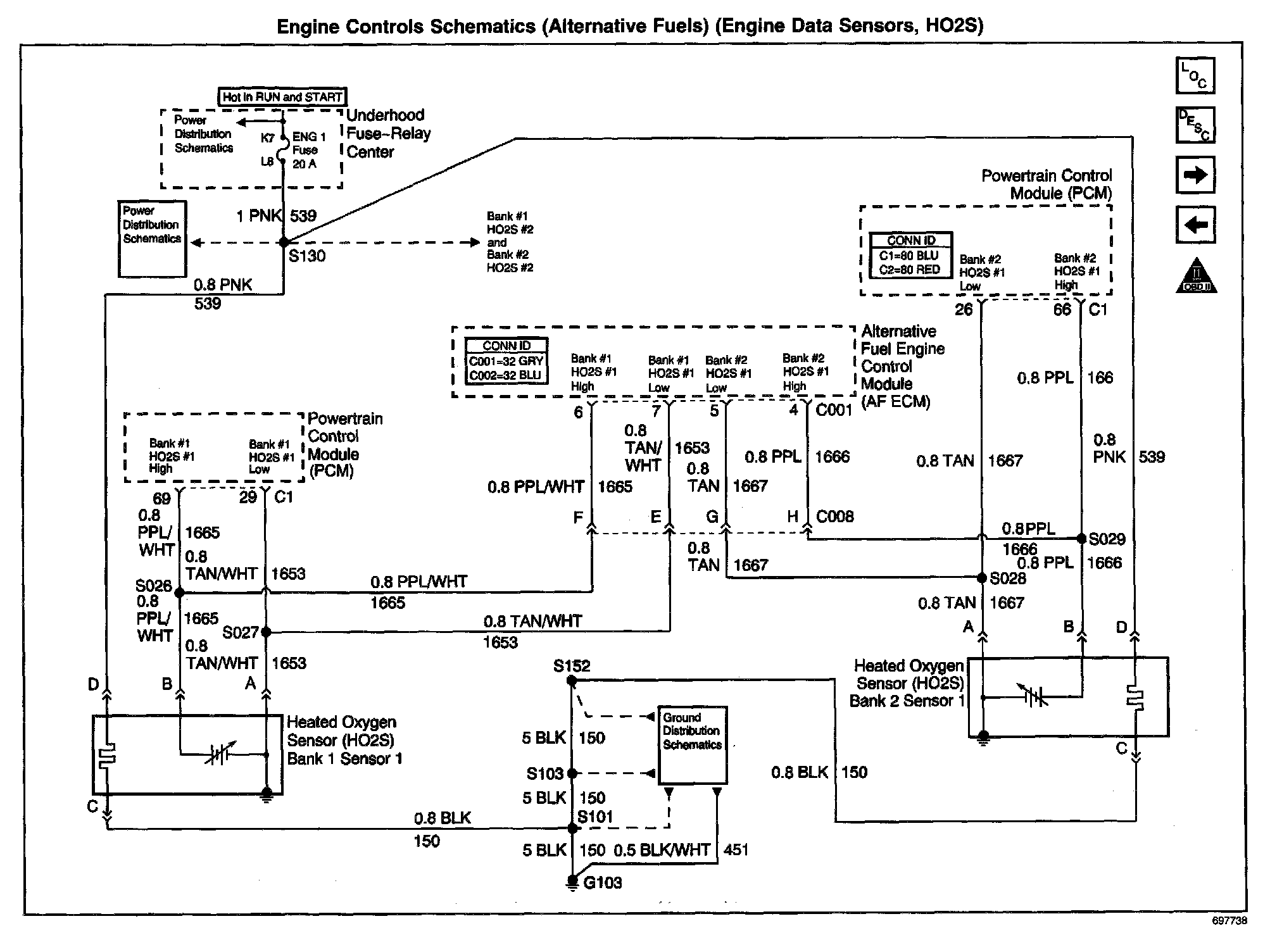

Engine Controls Schematics: Alternative Fuels (Engine Data Sensors, HO2S):
