Power Door Lock Relay, VIM
Power Door Lock Relay, VIM

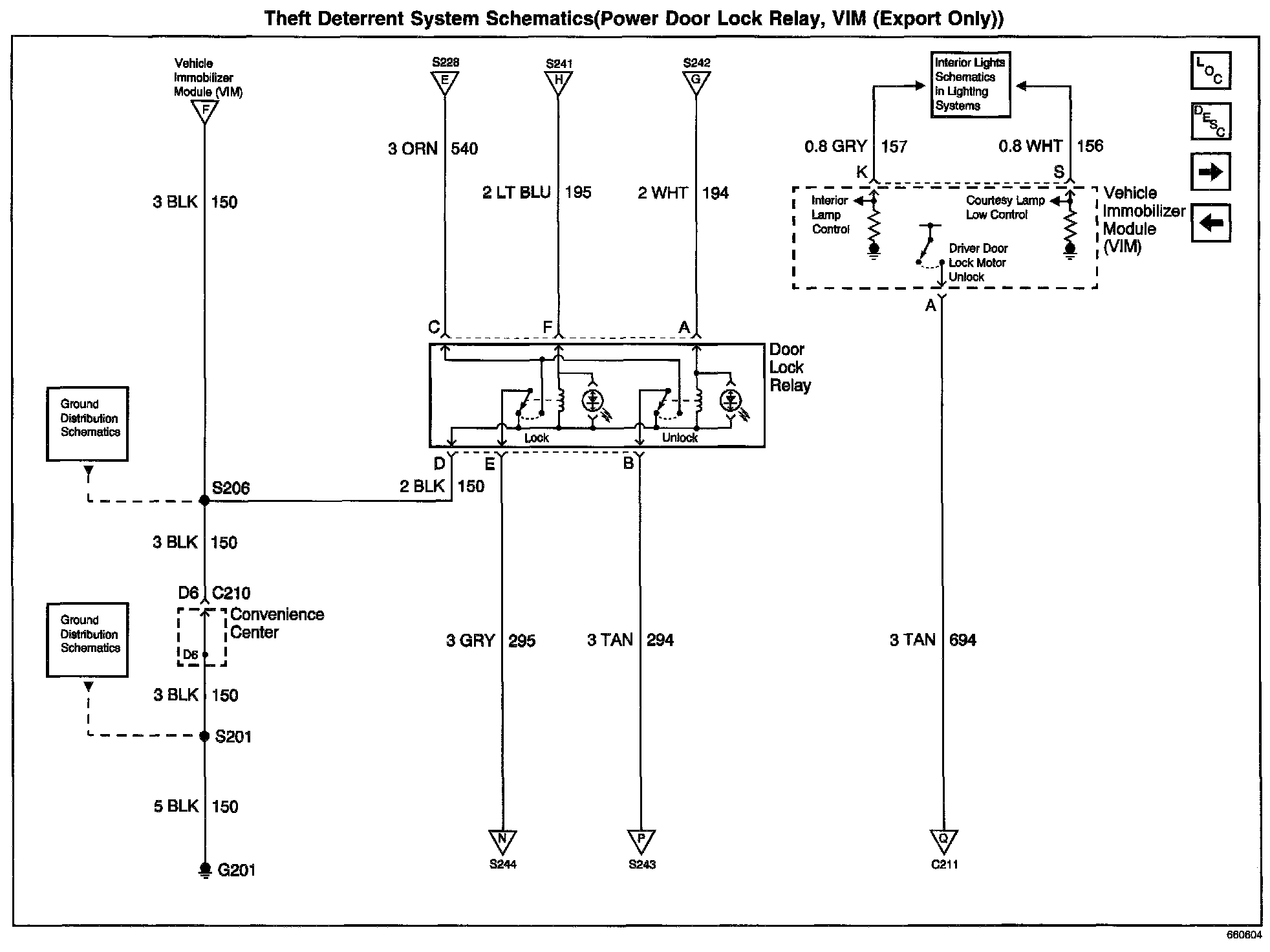

Theft Deterrent System Schematics: Power Door Lock Relay, VIM (Export Only):
