Power DR Lock Module, DR Jamb SW, DR Lock SW
Power DR Lock Module, DR Jamb SW, DR Lock SW

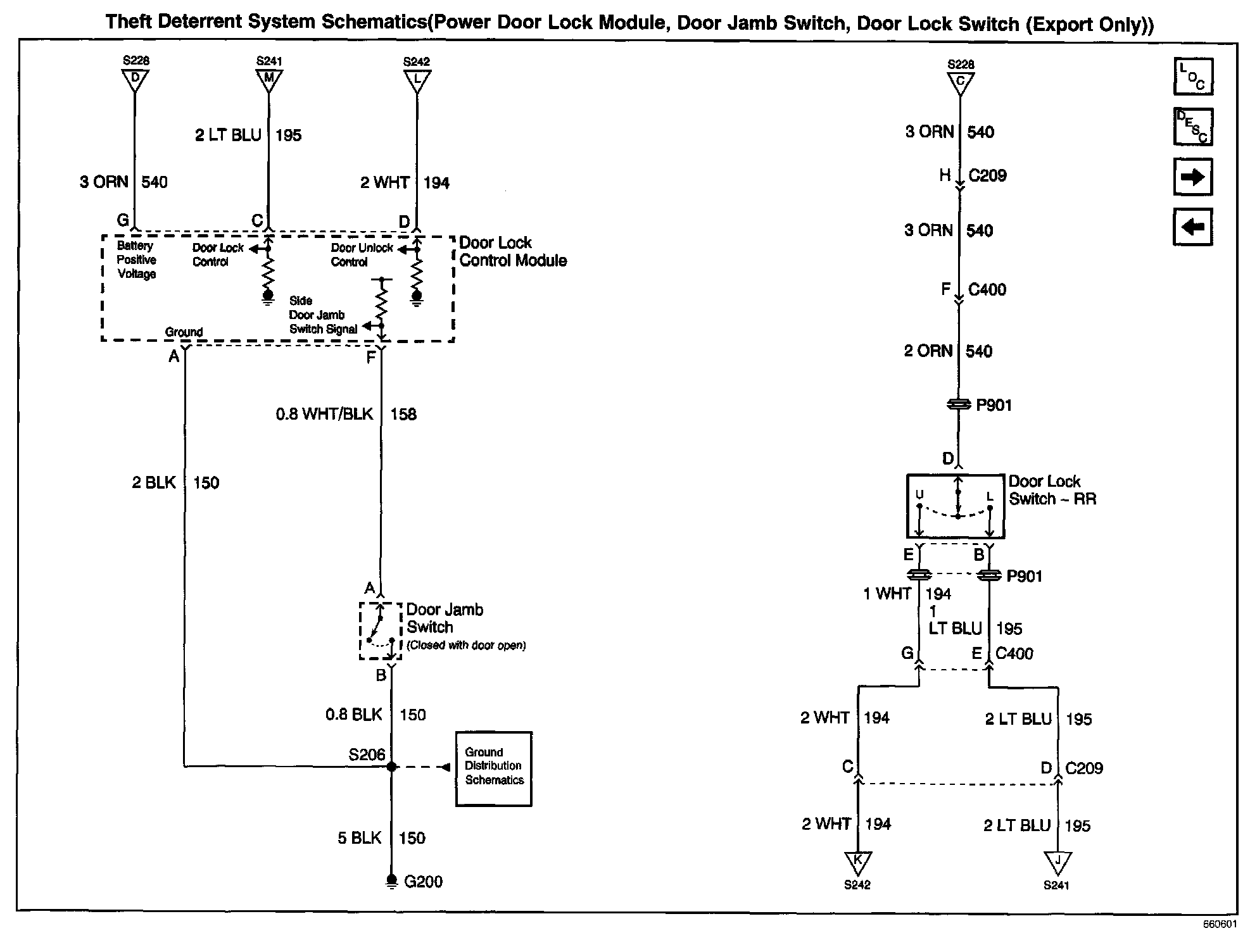

Theft Deterrent System Schematics: Power Door Lock Module, Door Jamb Switch, Door Lock Switch (Export Only):
