RSA-T Module
RSA-T Module

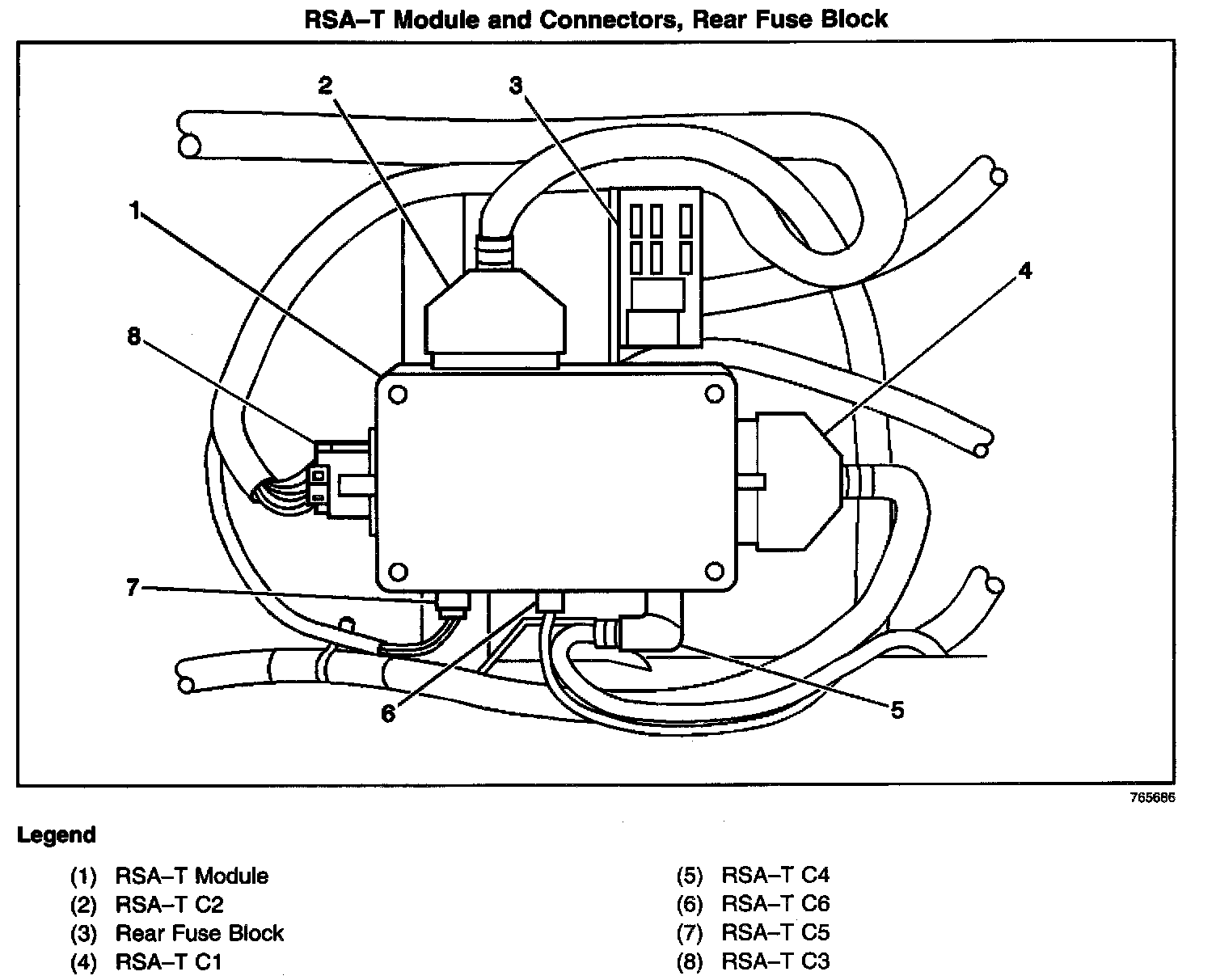

Locations View:
Behind the left side interior panel to the rear of the driver door, above the rear heater duct
