Power Door Lock Relay and Grounds
Power Door Lock Relay and Grounds

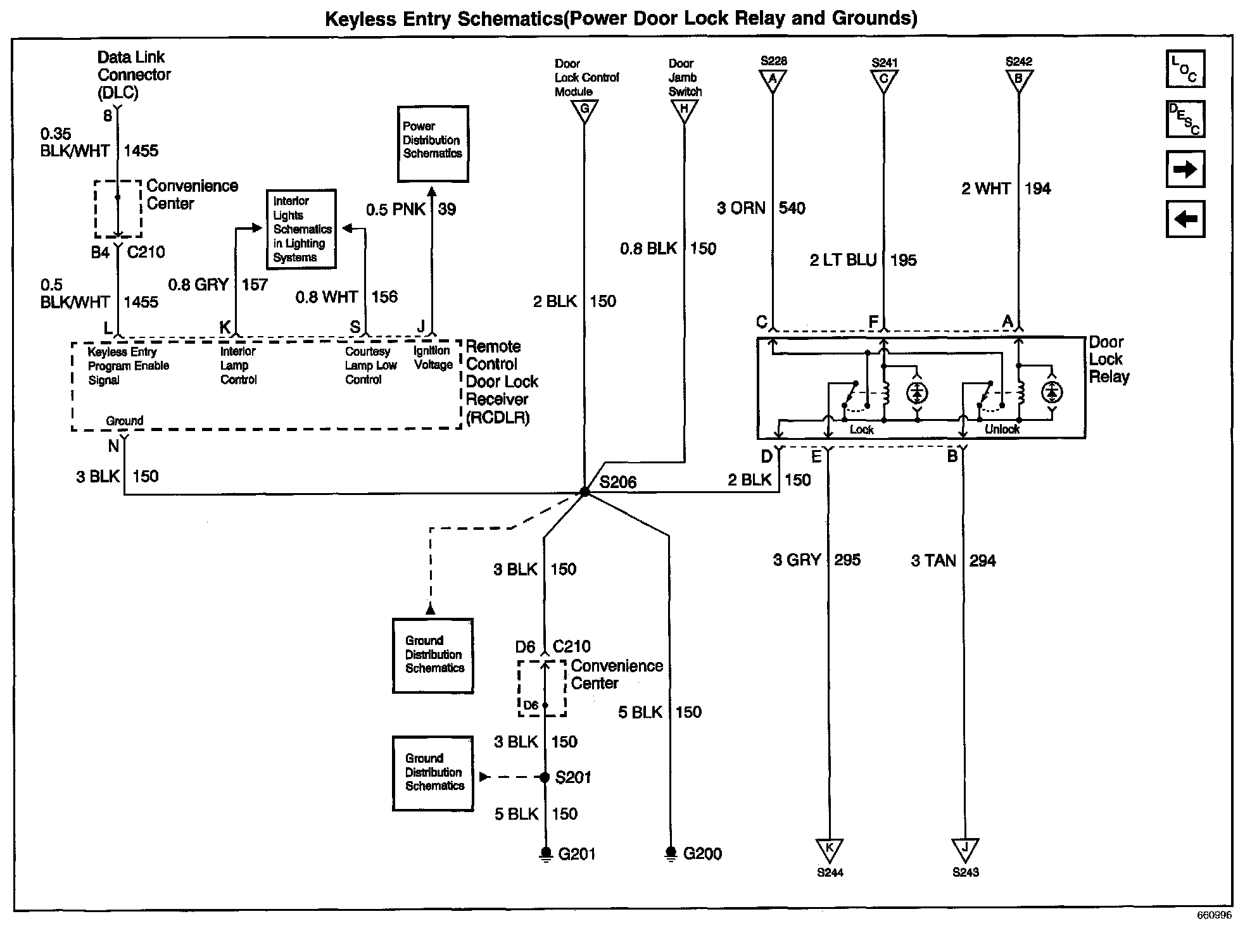

Keyless Entry Schematics: Power Door Lock Relay And Grounds:
